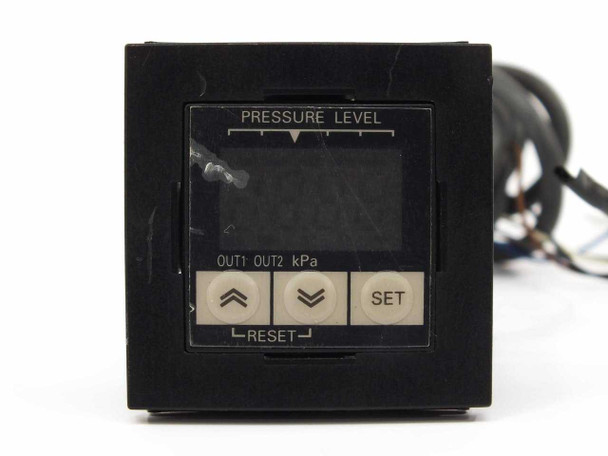

Omron E8F2-AN0C Digital Pressure Sensor LED Display 0 to -101 kPa 12-24VDC
Digital pressure sensor with LED display for monitoring vacuum and negative pressure in industrial systems. Measures 0 to -101 kPa with dual NPN outputs and linear analog output.
Specifications & What's Included
- Pressure Range: 0 to -101 kPa (Withstand: 400 kPa)
- Power Supply: 12 to 24 VDC, 70 mA max
- Outputs: Two NPN open collector outputs (30 mA max each), linear analog output
- Display: LED pressure level bar + kPa readout
- Mounting: Panel mount with included bracket and wiring harness
- Certifications: CE
- Manufactured in Japan
Applications
Used for vacuum monitoring and negative pressure detection in industrial automation, pneumatic systems, and process control. The dual outputs enable integration with PLCs and control modules. Panel-mount format allows direct installation into control panels and machinery enclosures. Common in packaging, food processing, and automated manufacturing environments requiring pressure indication and switching.
Condition: Used
This Omron E8F2-AN0C Digital Pressure Sensor has been inspected and appears to be in good condition. It was pulled from a working environment where it was previously in use. The housing is intact, the LED display panel is clean and free of cracks, and the front-panel buttons show normal wear consistent with use. The wiring harness and spade terminals are present and intact, and the pneumatic push-in port fitting on the rear is undamaged. The panel-mounting bracket is included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Omron E8F2-AN0C Digital Pressure Sensor has been inspected and appears to be in good condition. It was pulled from a working environment where it was previously in use. The housing is intact, the LED display panel is clean and free of cracks, and the front-panel buttons show normal wear consistent with use. The wiring harness and spade terminals are present and intact, and the pneumatic push-in port fitting on the rear is undamaged. The panel-mounting bracket is included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Omron |
Model: |
E8F2-AN0C |
MPN: |
E8F2-AN0C |
Type: |
Digital Pressure Sensor |
SKU: |
48141 |
Pressure Range: |
0 to -101 kPa |
Withstand Pressure: |
400 kPa |
Power Supply Voltage: |
12 to 24 VDC |
Current Consumption: |
70 mA max |
Output 1: |
NPN open collector, max 30 mA |
Output 2: |
NPN open collector, max 30 mA |
Analog Output: |
Linear (Gray wire) |
Display Type: |
LED (Pressure Level bar + kPa) |
Wire Colors: |
Brown=12-24VDC, Blue=0V, Black=OUT1, White=OUT2, Gray=Linear |
Mounting: |
Panel mount with included bracket |
Country/Region of Manufacture: |
Japan |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes panel-mounting bracket and wiring harness with spade terminals |
Form Factor: |
Panel Mount |
Application: |
Vacuum / negative pressure monitoring, industrial automation |
Certifications: |
CE |
Review Status: |
Auto-Approved (needs review) 2026-07-04 |
Condition Notes: |
Omron E8F2-AN0C Digital Pressure Sensor inspected and in good condition. Pulled from a working environment. Housing intact, LED display clean, wiring harness and push-in port fitting present. Panel-mount bracket included. |
