Omron E5C2-R20P Temperature Controller P2CF-08 Base Pt100 0-200°C 100/110VAC

(No reviews yet) Write a Review
SKU:
47799
MPN:
E5C2-R-20P
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

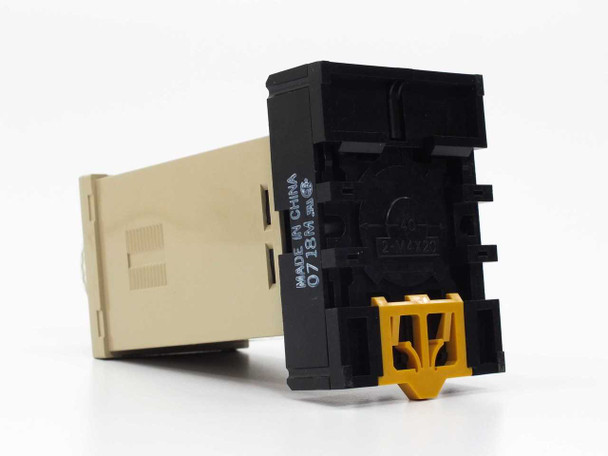

  • Omron E5C2-R20P temperature controller rear view with P2CF-08 socket base and yellow terminal clip, Made in China label visible
  • Omron E5C2 temperature controller front and side view mounted on P2CF-08 base, analog dial showing °C scale, ON indicator LED
  • Omron E5C2-R20P temperature controller label showing 3A 250VAC relay output, 100/110VAC 50/60Hz 2VA max, Made in Japan, CE UL CSA markings
  • Omron E5C2 temperature controller front panel close-up showing analog dial 0–200°C scale, Pt100Ω input, ON indicator
  • Omron P2CF-08 8-pin socket base bottom view showing screw terminals and octal pin socket, with E5C2 controller body alongside
$23.20
Was: $100.00
Current Stock: 1

Sold Out

Description

Omron E5C2-R20P Temperature Controller P2CF-08 Base Pt100 0-200°C 100/110VAC

The Omron E5C2-R20P is a compact analog temperature controller in the E5C2 series, designed for panel mounting in industrial process control applications. It uses a Pt100 RTD input to monitor temperature over a 0–200°C range and drives a relay output for on/off control. This unit is listed with its matching P2CF-08 8-pin socket base, which plugs the controller into a standard octal socket for easy wiring and removal.

Specifications & What's Included

  • Model: Omron E5C2-R20P
  • Part Number: 5465260-1A (R)
  • Input Type: Pt100Ω RTD
  • Temperature Range: 0–200°C
  • Display: Analog dial with °C scale
  • Output Type: Relay (SPDT)
  • Relay Rating: 3A, 250VAC, Resistive Load
  • Supply Voltage: 100/110VAC, 50/60Hz
  • Power Consumption: 2VA max
  • Form Factor: Panel mount, 48×48mm class
  • Indicator: Red ON LED on front panel
  • Certifications: CE, UL, CSA
  • Country of Manufacture: Japan
  • Included: Omron E5C2-R20P controller + P2CF-08 8-pin socket base

Applications

The Omron E5C2 series is a line of compact on/off temperature controllers widely used in industrial automation, plastics processing, packaging machinery, ovens, kilns, and general process heating control. The E5C2-R20P is suited for applications requiring RTD-based temperature sensing where a simple relay switching output is appropriate. The plug-in P2CF-08 socket base makes it straightforward to wire into a control panel and swap the controller without disturbing field wiring. These controllers are commonly found in small machine builders' control panels and light industrial OEM equipment throughout manufacturing environments.

Condition: Used
This Omron E5C2-R20P Temperature Controller with P2CF-08 socket base has been inspected and appears to be in good used condition. The unit shows normal light wear consistent with prior industrial use. The analog dial face, front panel, and housing are clean and intact. The P2CF-08 base is included and shows no damage to the terminals or pin socket. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Omron
Model:
E5C2-R20P
MPN:
E5C2-R20P
Secondary Model:
5465260-1A
Type:
Analog Temperature Controller
SKU:
47799
Input Type:
Pt100 RTD
Temperature Range:
0–200°C
Output Type:
Relay Output
Relay Rating:
3A 250VAC Resistive Load
Supply Voltage:
100/110VAC, 50/60Hz
Power Consumption:
2VA max
Display Type:
Analog Dial (°C)
Included Socket Base:
P2CF-08
Number of Pins:
8-pin
Form Factor:
Panel Mount (48x48mm class)
Country/Region of Manufacture:
Japan
Certifications:
CE, UL, CSA
Condition:
Used – Inspected
Seller Notes:
Includes Omron E5C2-R20P controller and P2CF-08 socket base
Compatible With:
P2CF-08 socket, 48x48mm panel cutout
Application:
Industrial temperature control, process control
Review Status:
Auto-Approved (needs review) 2026-07-04
Condition Notes:
Omron E5C2-R20P Temperature Controller with P2CF-08 base. Inspected and in good used condition. Normal light wear. Dial, housing, and base terminals are clean and intact.
