Description

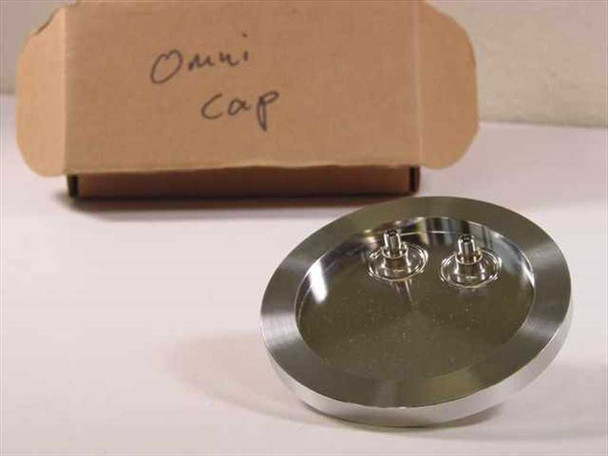

Omni Cap 101192-0027 Vacuum Chamber Top Fill Port Lid ~5" Dia Aluminum Flange
The Omni Cap 101192-0027 is a custom-diameter aluminum top fill port lid designed to cap and seal the top port opening of a vacuum chamber. Machined from aluminum, the disk measures approximately 5 inches in diameter and features two integrated feedthrough port fittings and a central threaded stud on the top surface, with a full bolt-circle pattern of mounting holes around the perimeter for secure flange attachment.
Specifications & What's Included
- Part Number: 101192-0027
- Brand: Omni Cap
- Type: Vacuum chamber top fill port lid / flange cap
- Material: Machined aluminum
- Diameter: Approximately 5 inches (custom diameter)
- Top surface: Two cylindrical threaded feedthrough port fittings and one central threaded stud
- Perimeter: Multiple bolt-circle mounting holes for flange attachment
- Includes: Original cardboard box labeled "Omni Cap"
Applications
Vacuum chamber port lids and flange caps like this one are used to seal access ports on the top of vacuum chambers in research, industrial, and semiconductor processing environments. The integrated feedthrough fittings allow electrical, gas, or fluid lines to pass into the chamber while maintaining a vacuum seal — a common requirement in thin-film deposition, plasma processing, CVD, sputtering, and scientific research systems. Custom-diameter flange lids such as this are typically designed to mate with a specific chamber geometry, so the approximately 5-inch diameter and bolt-circle pattern should be verified against the target chamber before installation. These components are common in university and industrial labs where custom or semi-custom vacuum apparatus is built or maintained.
This Omni Cap 101192-0027 vacuum chamber top fill port lid has been inspected and is in good condition. The machined aluminum disk is clean with light handling marks consistent with prior use. The two feedthrough port fittings and threaded stud on the top surface appear intact with no visible damage. Bolt-circle mounting holes around the perimeter show no stripping or deformation. The part comes in its original cardboard box labeled 'Omni Cap.' Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Omni Cap |
Model: |
101192-0027 |
MPN: |
101192-0027 |
Type: |
Vacuum Chamber Top Fill Port Lid / Flange Cap |
SKU: |
27974 |
Condition: |
Used – Inspected and in Good Condition |
Material: |
Aluminum |
Diameter: |
Approximately 5 inches |
Number of Feedthrough Ports: |
2 |
Mounting Holes: |
Multiple bolt-circle mounting holes (visible in photos) |
Application / Use Case: |
Vacuum chamber top cap / fill port access lid |
Seller Notes: |
Includes original cardboard box labeled 'Omni Cap' |
Form Factor: |
Circular disk flange with raised port fittings |
Compatible With: |
Vacuum chambers with ~5" top port opening |
Condition Notes: |
This Omni Cap 101192-0027 vacuum chamber fill port lid has been inspected and is in good used condition. Aluminum disk is clean with light handling marks. Feedthrough fittings and mounting holes intact. Comes in original box. |
