Omega 7035-J-500 Type J Thermocouple Panel Meter 0-500°F 0-250°C Parallax Mirror

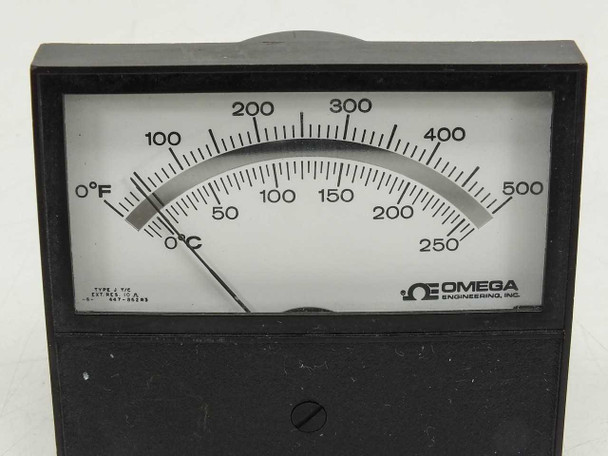

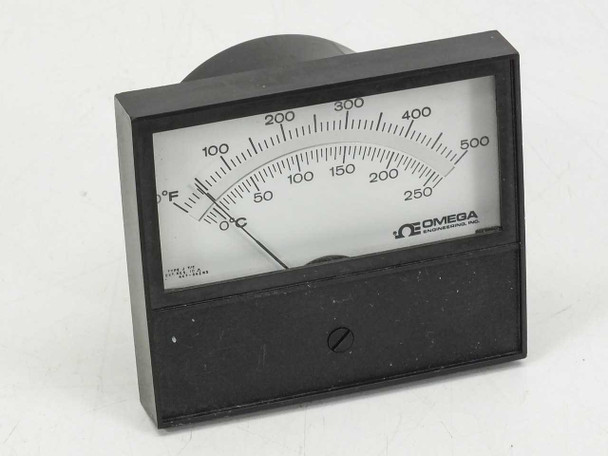

The Omega 7035-J-500 is an analog panel-mount temperature indicator designed for use with Type J thermocouples. It displays temperature on a dual-scale dial covering 0–500°F on the outer arc and 0–250°C on the inner arc, with a parallax mirror strip integrated into the scale face to eliminate reading error caused by off-axis viewing. The movement has an estimated resistance of 10Ω and a full-scale resistance of 110Ω peak.
Specifications & What's Included
- Manufacturer: Omega Engineering, Inc.

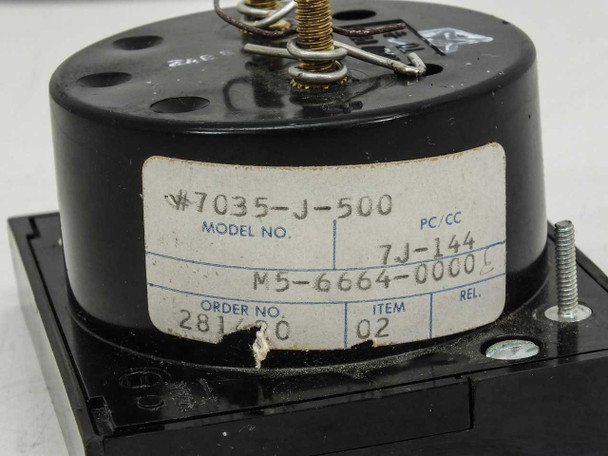

- Model: 7035-J-500
- PC/CC: 7J-144
- Part Number: M5-6664-0000
- Thermocouple Type: Type J (iron–constantan)
- Temperature Range: 0–500°F / 0–250°C (dual scale)
- Display: Analog d'Arsonval movement with parallax mirror
- Estimated Coil Resistance: 10Ω
- Full-Scale Resistance: 110Ω peak
- Class/Calibration: CL 447-06245

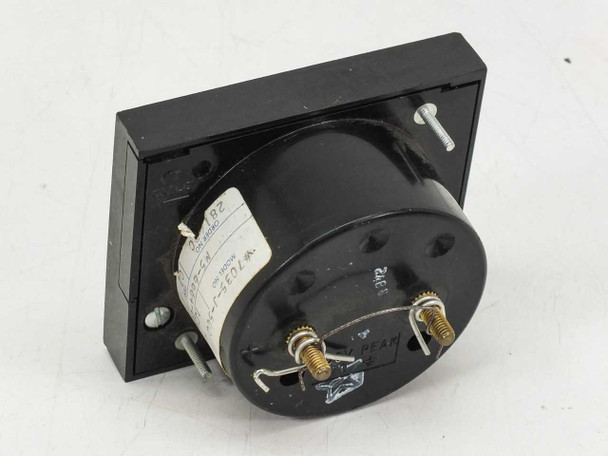

- Form Factor: Panel mount, square black housing with round movement cylinder

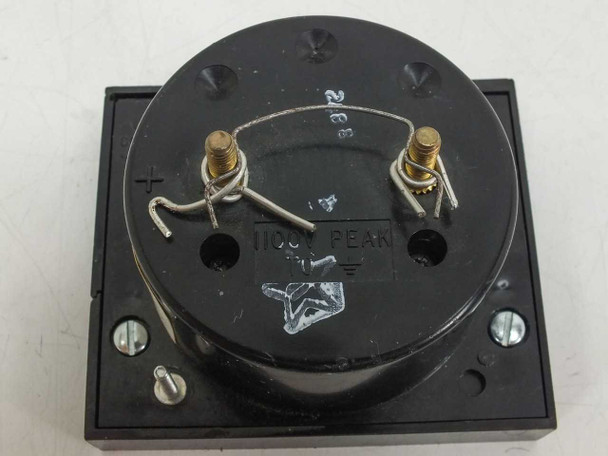

- Terminals: Two rear-mounted gold-plated screw posts (+/−)
- Included: Meter only — no thermocouple, lead wires, or mounting hardware
Applications
Analog thermocouple panel meters like the Omega 7035-J-500 are used wherever a continuous, at-a-glance temperature readout is needed at a panel or control board. Type J thermocouple indicators are common in industrial process control, laboratory furnaces, ovens, heat-treating equipment, plastics processing, and general temperature monitoring applications where iron–constantan thermocouples are the installed sensor. The panel-mount form factor allows direct integration into control cabinets, switchboards, and instrument panels. Omega Engineering has been a leading supplier of temperature measurement and control instruments since the 1960s, and their 7035-series meters were widely used in OEM and custom control panel applications. The parallax mirror is a standard feature on precision analog meters that lets the operator align their line of sight with the needle reflection to take an accurate reading — eliminating the small but real error that occurs when reading a curved scale from an angle.
This Omega 7035-J-500 Type J Thermocouple Panel Meter has been inspected and appears to be in good used condition. The front dial face is clean and legible, with the dual °F/°C scale and parallax mirror strip in good shape. The black housing shows minor surface wear consistent with age and prior use. The terminal posts on the rear of the movement are intact with no visible damage. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Omega Engineering |
Model: |
7035-J-500 |
MPN: |
7035-J-500 |
Secondary Model: |
7J-144 |
Part Number: |
M5-6664-0000 |
Type: |
Analog Thermocouple Panel Meter / Temperature Indicator |
SKU: |
46389 |
Thermocouple Type: |
Type J |
Temperature Scale: |
Dual: 0–500°F / 0–250°C |
Display Type: |
Analog Meter with Parallax Mirror |
Full Scale (°F): |
500°F |
Full Scale (°C): |
250°C |
Estimated Resistance: |
10Ω |
Full Scale Resistance: |
110Ω Peak |
Thermocouple Class: |
CL 447-06245 |
Form Factor: |
Panel Mount |
Housing Color: |
Black |
Seller Notes: |
Meter only — no thermocouple, cables, or mounting hardware included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This Omega 7035-J-500 Type J Thermocouple Panel Meter has been inspected and is in good used condition. Dial face clean and legible, housing shows minor wear. Terminal posts intact. No damage observed. |
