Olympus PM-CBAD Exposure Control Unit PM-PBS Microscope Camera 100/115V AS-IS

(No reviews yet) Write a Review
SKU:
24622
MPN:
PM-CBAD
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
17.00 LBS
Shipping:
Calculated at Checkout
  • Olympus PM-CBAD AD Exposure Control Unit front three-quarter view showing control panel with Olympus branding, rotary dials, and push-button controls

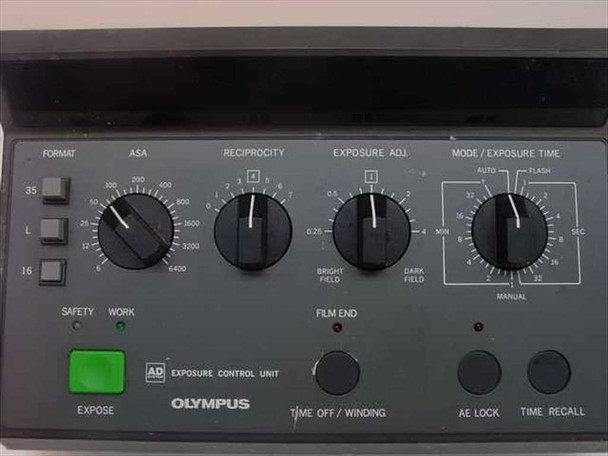

  • Olympus PM-CBAD front panel close-up showing Format selector (35/L/16), ASA dial, Reciprocity dial, Exposure Adj dial, Mode/Exposure Time dial, Expose button, Film End indicator, AE Lock, and Time Recall buttons
  • Olympus PM-CBAD rear panel showing AC Input (IEC), voltage selector (100V/115V), PM-FS port, PM-LSS connector, PM-IVM connector, PM-PBS connector, and rating label (100/115V, 0.7/0.6A, 50-60Hz)
$27.60
Was: $75.00
Current Stock: 3

Sold Out

Description

Olympus PM-CBAD Exposure Control Unit PM-PBS Microscope Camera 100/115V AS-IS

Exposure control unit for Olympus microscope camera systems. Manages film exposure settings and integrates with compatible camera backs and accessories for photomicrography applications.

Specifications & What's Included

  • Model: PM-CBAD
  • Power: 100/115V AC selectable, 50–60 Hz
  • Film formats: 35mm, L, 16mm
  • ASA range: 100–6400
  • Controls: Reciprocity, exposure adjustment, mode/exposure time dials
  • Rear connectors for PM-LSS, PM-IVM, PM-FS, PM-PBS
  • Unit only; no accessories included
  • Made in Japan

Applications

This control unit was used in research and laboratory microscopy setups to automate and regulate film exposure during photomicrography. It connects to Olympus PM-PBS automatic exposure camera backs, PM-PBA and PM-PBSP camera bodies, and works with the C-35AD-4 camera back. The unit integrates with electronic flash units, time-lapse controllers, and foot switches for comprehensive microscope photography systems.

Condition: For Parts or Not Working
This Olympus PM-CBAD Exposure Control Unit is being sold AS-IS for parts or repair. The unit appears cosmetically good — the front panel controls and labeling are clean and legible, and the housing shows only light wear consistent with age. However, due to its age we have not verified functionality, and it is not guaranteed to be working. It is sold strictly as-is with no returns on functionality. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Olympus
Model:
PM-CBAD
MPN:
PM-CBAD
Type:
Microscope Camera Exposure Control Unit
SKU:
24622
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold AS-IS for parts or repair; unit only, no accessories
Country/Region of Manufacture:
Japan
Compatible With 1:
Olympus PM-PBS Automatic Exposure Camera Back
Compatible With 2:
Olympus PM-PBA / PM-PBSP Camera Bodies
Compatible With 3:
Olympus C-35AD-4 Camera Back
Compatible With 4:
Olympus PM-LSS Electronic Flash Unit
Compatible With 5:
Olympus PM-IVM Time Lapse Control Unit
Compatible With 6:
Olympus PM-FS Foot Switch
Power Requirements:
100/115V AC, 0.7/0.6A, 50-60Hz
Voltage:
100V / 115V AC (switch selectable)
Current Rating:
0.7A (100V) / 0.6A (115V)
Frequency:
50-60 Hz
Form Factor:
Benchtop / Tabletop
Film Format Selector:
35mm / L / 16mm
ASA Range:
100–6400
Controls:
Reciprocity, Exposure Adj, Mode/Exposure Time dials
Accessory Ports:
PM-LSS, PM-IVM, PM-FS, PM-PBS connectors on rear
Application:
Photomicrography / Microscope Photography
Manufacturer:
Olympus Optical Co., Ltd.
Condition Notes:
Olympus PM-CBAD Exposure Control Unit sold AS-IS for parts or repair. Cosmetically appears good with light age-related wear. Functionality not verified; not guaranteed working. No returns on functionality.
