Olympus PM-10AD Photomicrography Camera PM-DL-W Polaroid Back PM-CP-W Adapter

Olympus PM-10AD Photomicrography Camera PM-DL-W Polaroid Back PM-CP-W Adapter

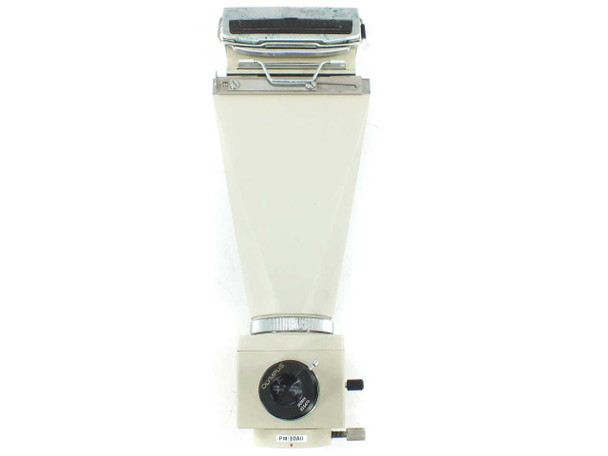

The Olympus PM-10AD is a dedicated photomicrography camera system designed for capturing still images directly through an optical microscope. This listing includes the PM-10AD camera head, the PM-DL-W 3-1/4 x 4-1/4 Polaroid film back, and the PM-CP-W adapter for large-format backs — a complete film-based micrograph capture assembly for research and documentation use.

Specifications & What's Included

• Manufacturer: Olympus (Japan)
• Camera Model: PM-10AD photomicrography camera head
• Included: PM-DL-W 3-1/4 x 4-1/4 Polaroid film back
• Included: PM-CP-W adapter for large-format backs
• Film Format: 3-1/4 x 4-1/4 Polaroid instant film

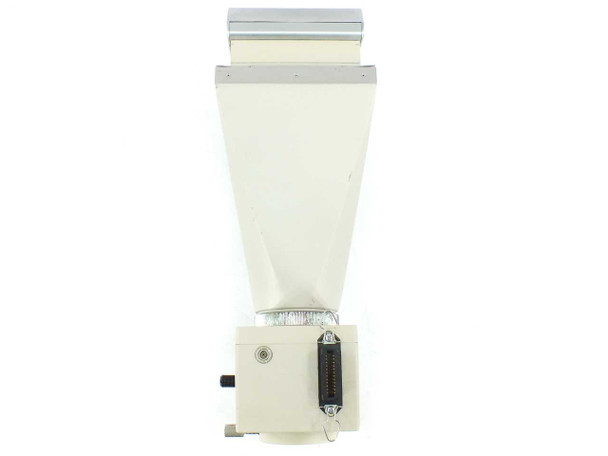

• Camera body: cream/ivory finish with bellows light-path extension
• Eyepiece/viewfinder port present on camera head

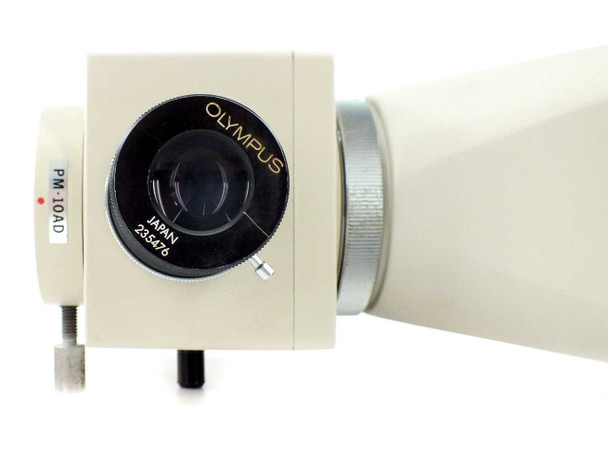

• Circular lens port on front of PM-10AD camera body for microscope attachment

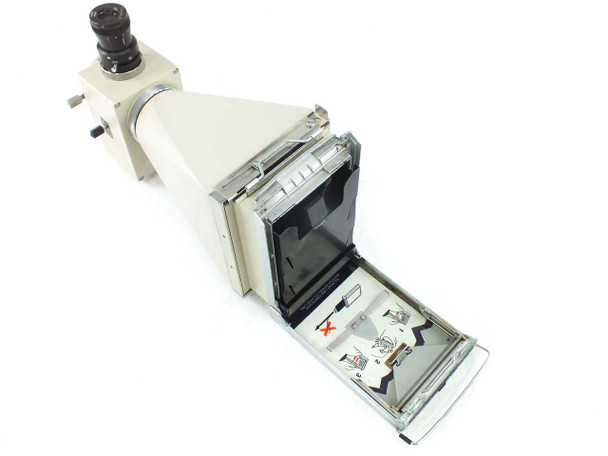

• Polaroid back features spring-loaded door with internal film loading mechanism and instruction diagram

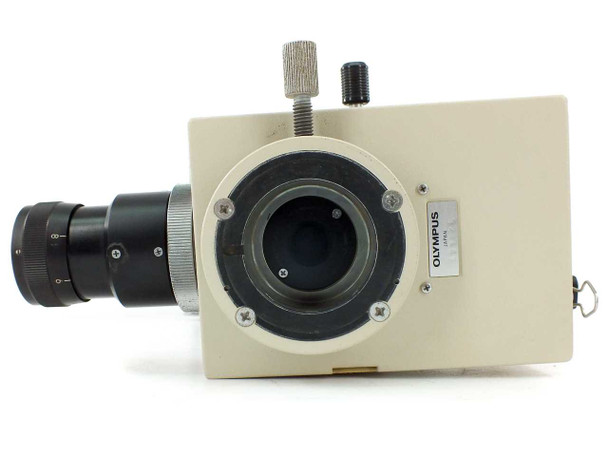

• Adjustment knobs visible on camera head for focus/positioning

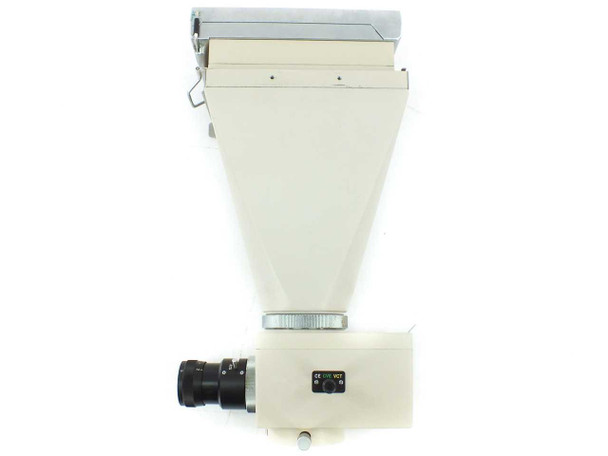

• Color filter indicator visible on camera body side

Applications

Photomicrography systems like the Olympus PM-10AD were standard equipment in biological, materials science, and forensic research laboratories from the 1970s through the 1990s — the era when Polaroid instant film offered the fastest path from microscope eyepiece to a physical print without a darkroom. The PM-10AD mounts to the camera port of a compatible Olympus research microscope, directing the magnified optical image onto film for immediate documentation. The PM-DL-W Polaroid back accepts 3-1/4 x 4-1/4 instant film packs, giving the operator a developed print within seconds of exposure — invaluable for histology, cytology, metallurgy, and quality control applications where immediate visual records were required. The PM-CP-W adapter extends compatibility to large-format film backs for higher-resolution archival imaging. Today these systems remain in use in institutions that still operate compatible Olympus microscopes and prefer film-based documentation, and they are also collected by microscopists and vintage scientific instrument enthusiasts.
