Description
NuArc VE813 Filament Transformer 115V/230V 12.6VCT 2.0A for FT26V3UP Platemaker
Single-phase filament transformer designed for the NuArc FT26V3UP platemaker. Provides stepped-down voltage to filament circuits in industrial plate exposure equipment.
Specifications & What's Included
- Primary voltage: 115V / 230V (multi-tap, switchable)
- Secondary voltage: 12.6VCT (center-tapped)
- Secondary current: 2.0A
- Frequency: 50/60 Hz
- Phase: Single phase
- UL Recognized (TIS 130-1)
- Open frame / chassis mount
- Lead wires included
Applications
Filament transformers supply low-voltage AC power to tube heaters and filament circuits in industrial imaging and printing equipment. The VE813 was used in NuArc platemakers—large-format photographic exposure systems for offset printing plate preparation. These transformers are direct replacements for compatible NuArc FT26V3UP-series equipment.
Condition: Used

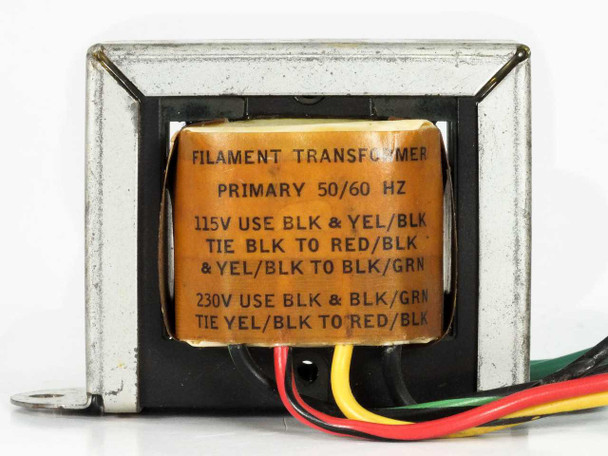

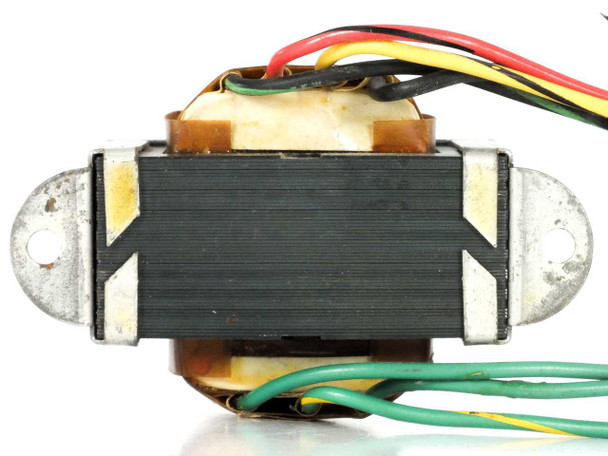

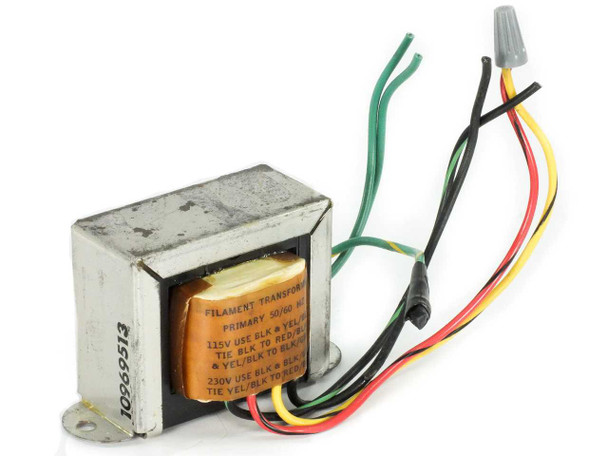

This NuArc VE813 filament transformer was removed from a working NuArc FT26V3UP-5KM platemaker. The transformer shows normal surface wear consistent with its service life, including light soiling and minor scuffing on the metal frame and mounting tabs. The coil bobbin label is intact and legible. Lead wires are present with wire nut caps. Please view our photo set and contact us if you have any questions.
This NuArc VE813 filament transformer was removed from a working NuArc FT26V3UP-5KM platemaker. The transformer shows normal surface wear consistent with its service life, including light soiling and minor scuffing on the metal frame and mounting tabs. The coil bobbin label is intact and legible. Lead wires are present with wire nut caps. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
NuArc |
Model: |
VE813 |
MPN: |
VE813 |
Secondary Model: |
J11924 |
Type: |
Filament Transformer |
SKU: |
51602 |
Primary Voltage: |
115V / 230V |
Secondary Voltage: |
12.6VCT |
Secondary Current: |
2.0A |
Frequency: |
50/60 Hz |
Phase: |
Single Phase |
Wiring Configuration: |
GRN-GRN / YEL-GRN (secondary); multi-tap primary |
Certifications: |
UL Recognized (TIS 130-1) |
Compatible With: |
NuArc FT26V3UP-5KM Platemaker |
Form Factor: |
Open Frame / Chassis Mount |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Removed from a working NuArc FT26V3UP-5KM platemaker. Bare transformer with lead wires. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
NuArc VE813 filament transformer pulled from a working FT26V3UP-5KM platemaker. Shows normal wear; frame has light surface soiling. Lead wires intact. Sold as removed. |
