Nova Biomedical BioProfile 100 Plus 38296 Cell Culture Analyzer Glucose Lactate

(No reviews yet) Write a Review
SKU:
53007
MPN:
38296
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
109.00 LBS
Shipping:
Calculated at Checkout

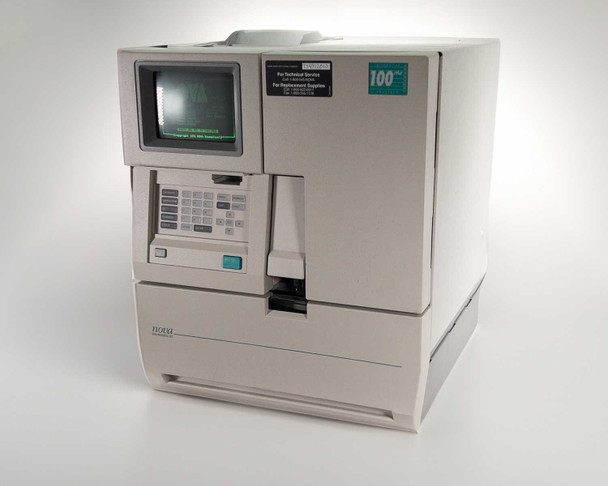

  • Nova Biomedical BioProfile 100 Plus analyzer – three-quarter front-left view showing CRT display, keypad, printer, and sample access door

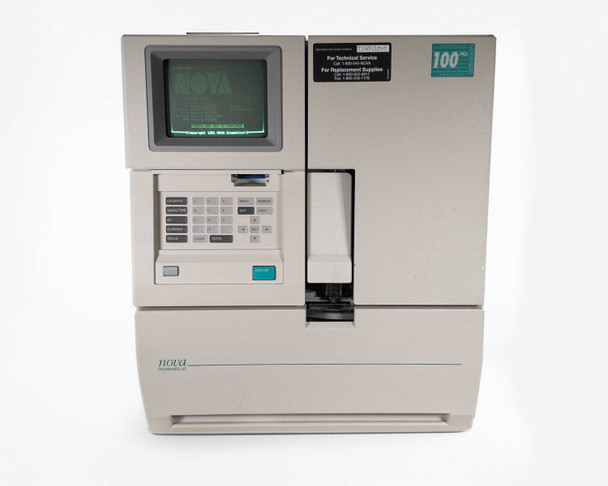

  • Nova Biomedical BioProfile 100 Plus REF 38296 – straight-on front view with CRT screen showing NOVA boot screen, keypad, and ANALYZE button

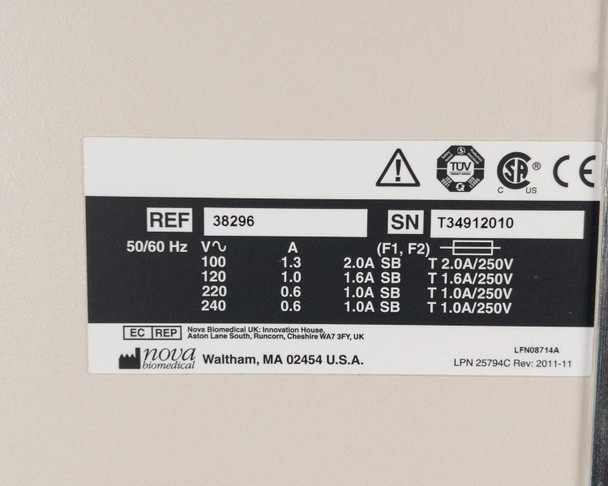

  • Nova Biomedical BioProfile 100 Plus rating plate – REF 38296, SN T34912010, voltage/current table 100-240V 50/60Hz, fuse ratings, Waltham MA label

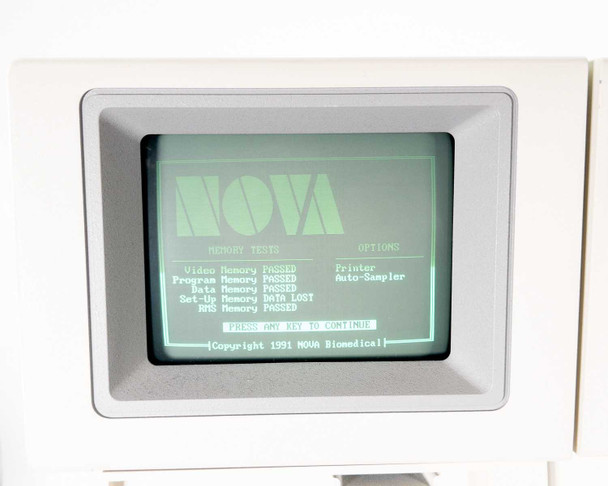

  • Nova Biomedical BioProfile 100 Plus CRT display – memory test screen showing Video, Program, Data (LOST), Set-Up, RMS memory results; Copyright 1991 Nova Biomedical
  • Nova Biomedical BioProfile 100 Plus – internal view with front door open showing sensor cartridge slots labeled Gluc, LAC, Gln, Glu and fluidic tubing

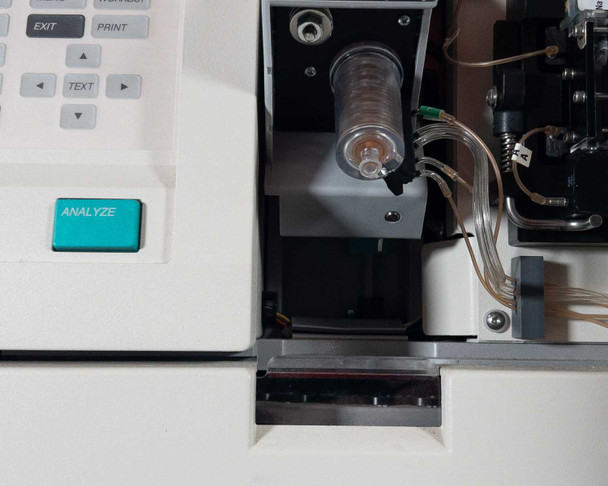

  • Nova Biomedical BioProfile 100 Plus – close-up of sample compartment with cylindrical sample cup holder, ANALYZE button, and fluidic lines visible

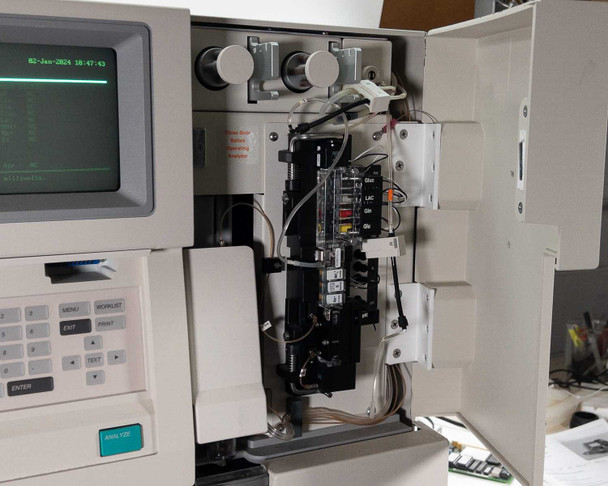

  • Nova Biomedical BioProfile 100 Plus – front door open during power-on showing CRT screen with 02-Jan-2024 timestamp, sensor module array, and internal cabling

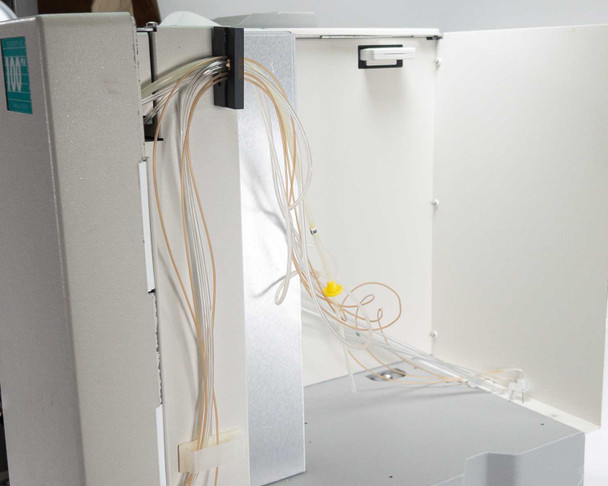

  • Nova Biomedical BioProfile 100 Plus – right side panel open showing internal wiring harness, fluidic tubing bundle, and reagent connectors

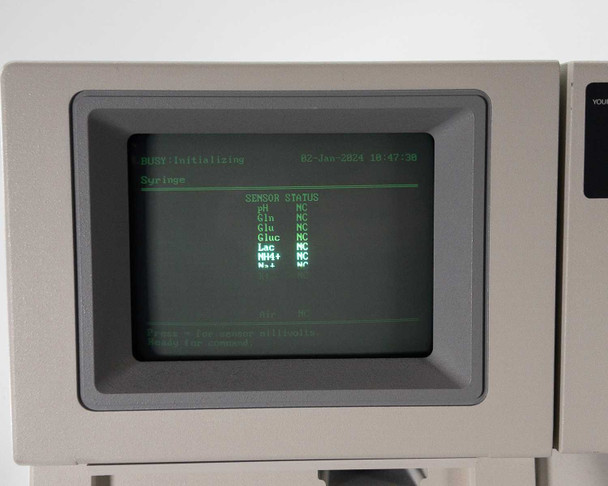

  • Nova Biomedical BioProfile 100 Plus CRT display – sensor status screen showing pH, Gln, Gluc, Lac, NH4+, Na+ all reading NC during initialization, dated 02-Jan-2024

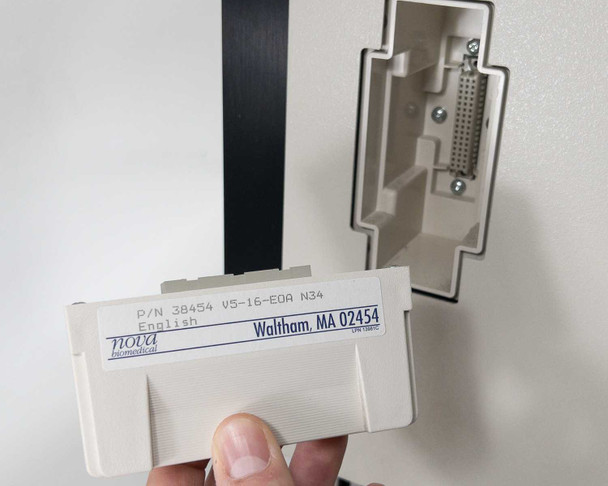

  • Nova Biomedical BioProfile 100 Plus – cartridge P/N 38454 V5-16-EOA N34 English label held by hand next to cartridge slot on instrument

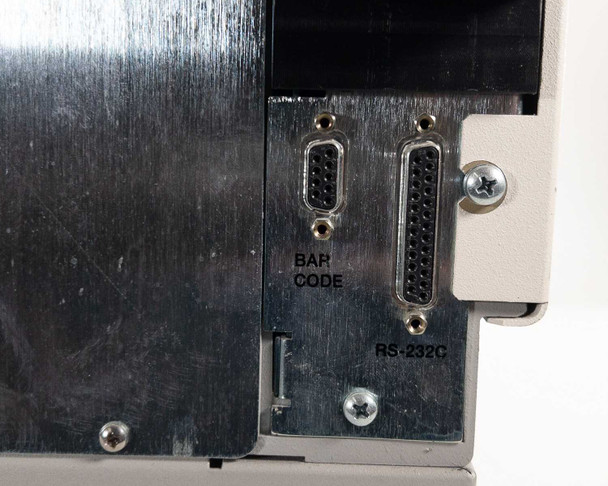

  • Nova Biomedical BioProfile 100 Plus – rear panel detail showing Bar Code and RS-232C DB25 port connectors on bare metal chassis

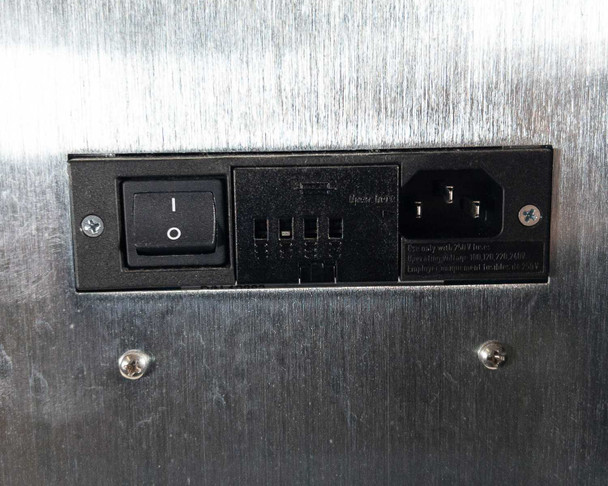

  • Nova Biomedical BioProfile 100 Plus – rear panel showing IEC AC power inlet, rocker power switch, fuse block, and voltage selector

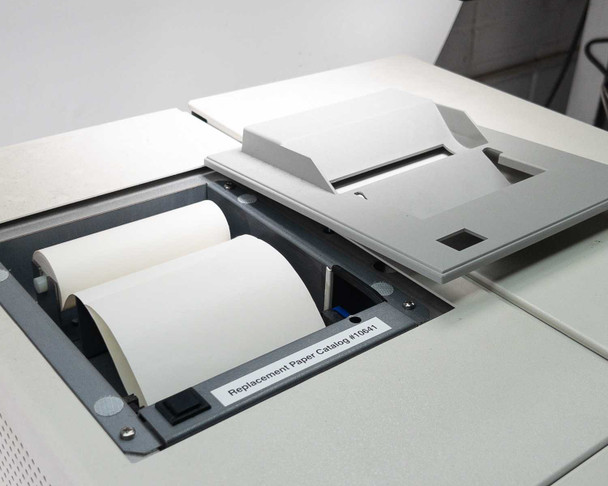

  • Nova Biomedical BioProfile 100 Plus – top panel open showing two rolls of replacement thermal paper loaded, label reads Replacement Paper Catalog #10641

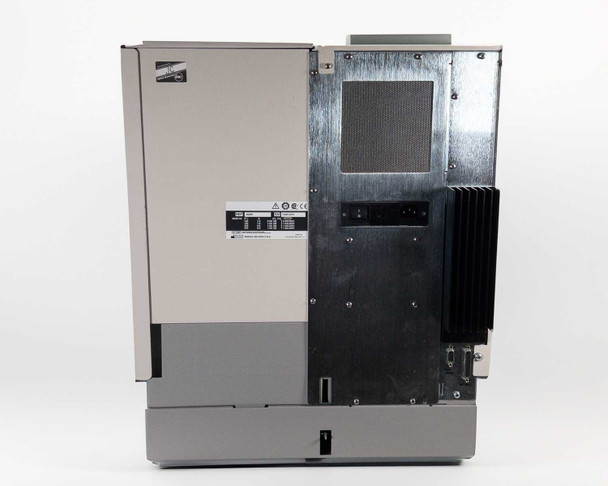

  • Nova Biomedical BioProfile 100 Plus – rear view showing bare metal back panel, ventilation grille, rating label, and heat sink assembly
  • Nova Biomedical BioProfile 100 Plus – rear three-quarter view with right side panel open, showing internal wiring, back panel, and heat sink
  • Nova Biomedical BioProfile 100 Plus – three-quarter front view showing powered-on NOVA boot screen on CRT, full instrument profile on white background

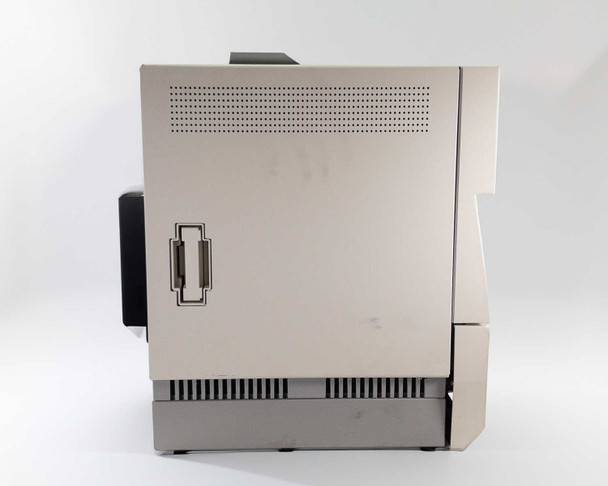

  • Nova Biomedical BioProfile 100 Plus – right side view showing ventilation slots, handle recess, and two-tier chassis profile
$1,100.00
Was: $2,200.00
Current Stock: 1

Sold Out

Description

Nova Biomedical BioProfile 100 Plus 38296 Cell Culture Analyzer Glucose Lactate

Automated benchtop analyzer for cell culture monitoring and bioprocess applications. Measures glucose, lactate, glutamine, glutamate, ammonia, pH, sodium, and potassium from culture samples.

Specifications & What's Included

  • Model: BioProfile 100 Plus (MPN 38296)
  • 40-position sample carousel capacity
  • Test parameters: Glucose, Lactate, Glutamine, Glutamate, NH4+, pH, Na+, K+
  • Integrated CRT monitor and thermal/paper printer
  • RS-232C connectivity and bar code reader port
  • Power: 100-240V AC, 50/60Hz
  • Dimensions: 21" × 19" × 22"
  • Includes cartridge P/N 38454 V5-16-EOA N34
  • Manufactured in Waltham, MA

Applications

Used in bioprocess R&D and production environments for real-time cell culture monitoring. Analyzes spent media and viable cell culture samples to track metabolic parameters during biopharmaceutical manufacturing, mammalian cell culture, and fermentation processes. Common in pharmaceutical and biotechnology labs for process optimization and batch monitoring.

Condition: Used
This Nova Biomedical BioProfile 100 Plus automated cell culture analyzer (REF 38296) has been powered and tested at our facility. The unit powers on without issue — the CRT display comes up, the 40-position sample circle moves on start-up as expected, and the keypad has been confirmed in working condition. The built-in top printer feeds paper without issue. Note: there appear to be some parts missing internally; please review the photos closely for the current internal configuration before purchasing. The exterior is in good cosmetic condition consistent with lab use. Replacement paper (Catalog #10641) is loaded in the printer compartment. Cartridge P/N 38454 V5-16-EOA N34 is included. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Nova Biomedical
Model:
BioProfile 100 Plus
MPN:
38296
Secondary Model:
38296
Type:
Automated Cell Culture Analyzer
SKU:
53007
Condition:
Used – Inspected and Tested
Seller Notes:
Includes cartridge P/N 38454 V5-16-EOA N34
Country/Region of Manufacture:
United States
Form Factor:
Benchtop
Power Requirements:
100-240V AC, 50/60Hz; 100V/1.3A, 120V/1.0A, 220V/0.6A, 240V/0.6A
Application / Use Case:
Cell culture monitoring; bioprocess R&D and production
Test Parameters:
Glucose, Lactate, Glutamine, Glutamate, NH4+, pH, Na+, K+
Sample Capacity:
40-position sample circle
Interface / Connectivity:
RS-232C, Bar Code reader port
Display:
Integrated CRT monitor
Printer:
Integrated thermal/paper printer (top-loading)
Calibration:
Automatic calibration with one-button start-up
Dimensions:
21" x 19" x 22"
Manufacture Location:
Nova Biomedical, Waltham, MA 02454 USA
Fuse Rating:
F1/F2: T2.0A/250V (100V); T1.6A/250V (120V); T1.0A/250V (220/240V)
Label / LPN:
LPN 25794C Rev: 2011-11
Cartridge P/N:
38454 V5-16-EOA N34
Condition Notes:
Nova Biomedical BioProfile 100 Plus (REF 38296) cell culture analyzer powers on, sample circle moves, keypad confirmed working, printer feeds paper. Some parts appear missing internally — see photos. Cartridge P/N 38454 included.
View AllClose

Related Products

Related Products

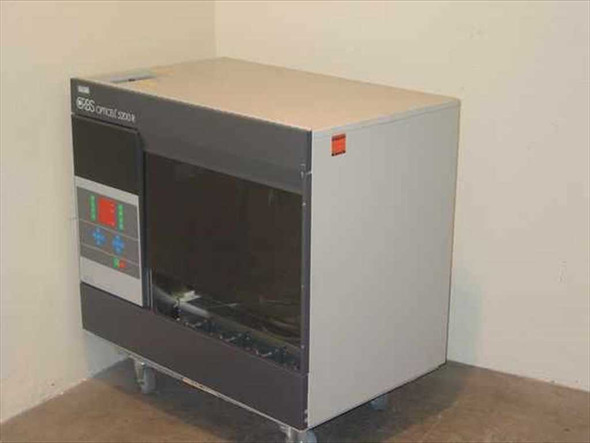

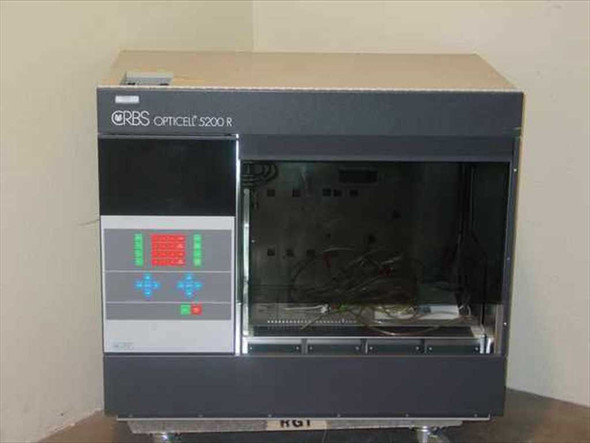

CRBS Opticell 5200R Cell Culture System front view showing control panel with LED display and enclosed work chamber CRBS Opticell 5200R right-side three-quarter view showing full cabinet enclosure on casters
