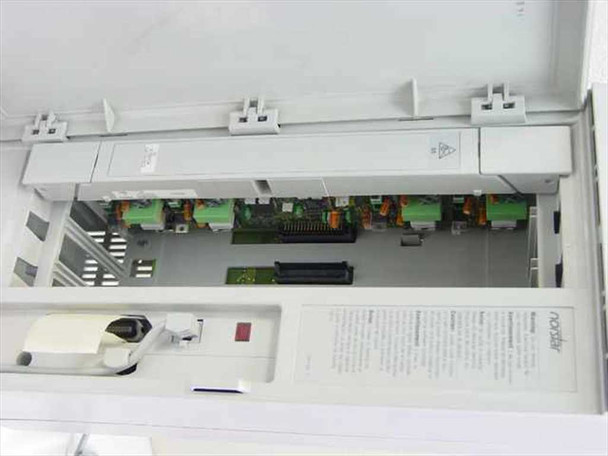

The Northern Telecom Norstar M12X0 is a Key System Unit (KSU) for the Norstar key telephone platform, identified by chassis part number NT5B32 (assembly 0402499026, issue 02A). This unit houses the central switching and line-card modules that connect outside telephone lines to Norstar digital sets throughout an office. It is configured with one NT5B40GA module installed and two expansion slots available for additional line or station cards.

Specifications & What's Included

• Manufacturer: Northern Telecom (Nortel)
• Product line: Norstar
• Model designation: M12X0

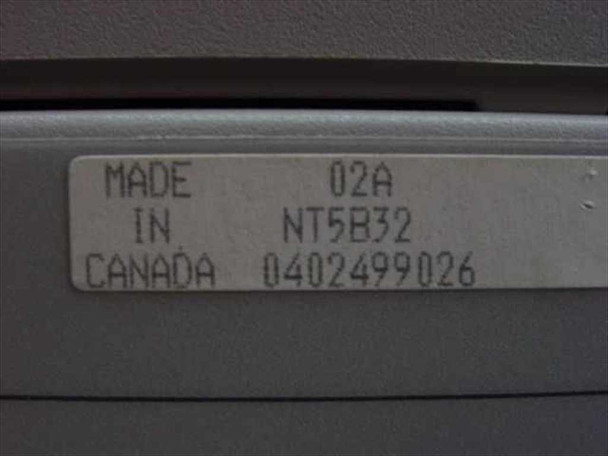

• KSU chassis part number: NT5B32
• Assembly number: 0402499026
• Issue/revision: 02A

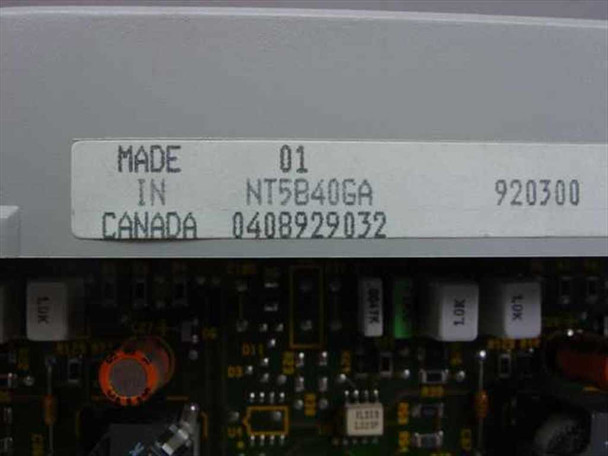

• Installed module: NT5B40GA (part 0407949032 / 0408929032, issue 01, date code 920300 — March 1992)
• PCB sub-assembly: NT5B3901, P0709090, REL01
• Expansion slots: 2 open/available
• Country of manufacture: Canada

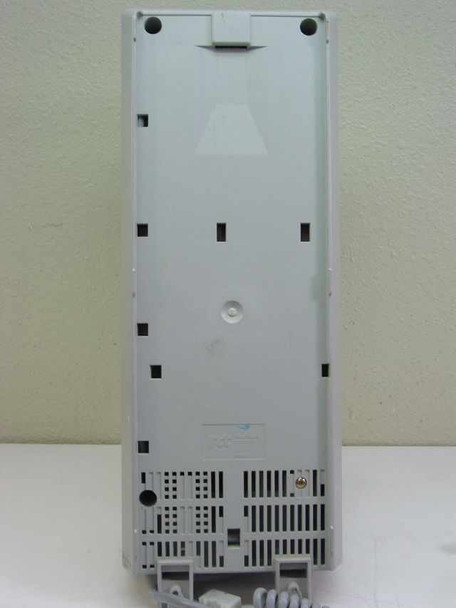

• Form factor: Wall-mount or desktop tower enclosure
• Power cord: included (visible in photos)

Applications

The Norstar M12X0 KSU is the central controller for Nortel's Norstar key telephone system, a widely deployed small-to-medium business phone platform from the late 1980s through the 2000s. The M12X0 chassis supports a mix of loop-start and digital station line cards (such as the NT5B40GA) that connect analog CO lines to Norstar digital sets — the M7100, M7208, M7310, and M7324 being the most common. The NT5B40GA is a central office line/station card that provides loop-start CO line ports and digital station ports within the system. Norstar systems of this generation were used in offices, clinics, retail locations, and similar environments that needed a full-featured multi-line phone system without the cost of a full PBX. The M12X0 platform is compatible with the broader Norstar MICS and CICS programming environment. Replacement modules, spare KSU chassis, and expansion cards for Norstar systems continue to be sought by installers and businesses maintaining legacy Norstar infrastructure.
