Nortel / Meridian

Nortel Meridian QPC139B Serial Data Interface Card SDI2 PBX Module

(No reviews yet) Write a Review
SKU:
12217
MPN:
QPC139B
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Shipping:
Calculated at Checkout
  • Nortel Meridian QPC139B Serial Data Interface SDI2 card — full front view showing PCB and two DB-25 connectors on faceplate
  • Nortel QPC139B SDI2 card — top-down view of PCB showing CBR01A060 board markings and component layout

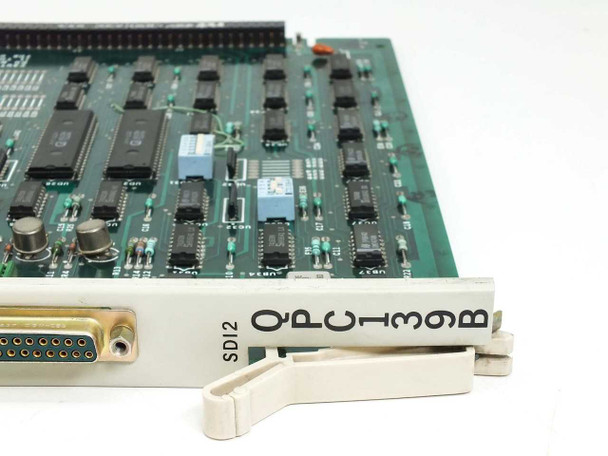

  • Nortel QPC139B faceplate close-up showing SDI2 label and left DB-25 female connector port
  • Nortel QPC139B card faceplate detail showing ENB/DIS switch, red indicator LED, and J3 DB-25 connector with date code 87/02

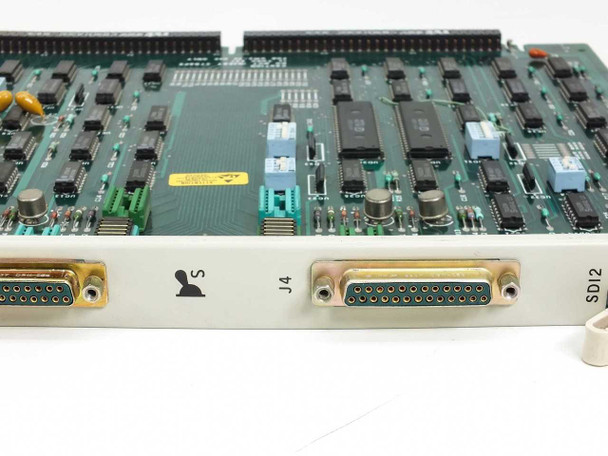

  • Nortel QPC139B SDI2 faceplate showing J4 DB-25 connector and SDI2 designation label on right side
  • Nortel QPC139B PCB reverse side view showing CBR01A060 board silk-screen, GI chips, and Made in USA marking
  • Nortel QPC139B PCB close-up showing CTS 206-4 DIP switch, 7400N logic ICs, and SN74LS14N chips

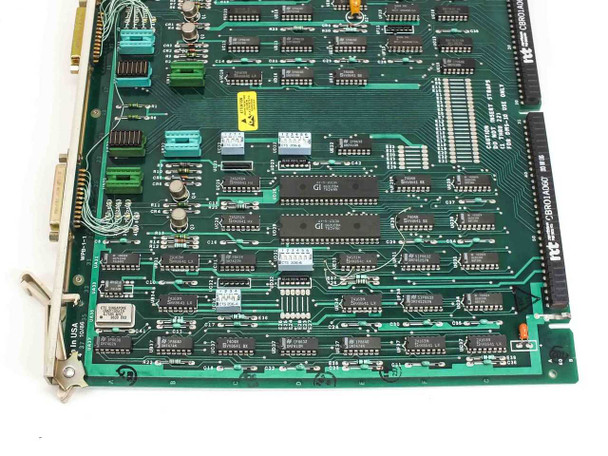

  • Nortel QPC139B PCB reverse angle showing GI branded ICs, Lattice components, and CBR01A060 board identification
  • Nortel QPC139B PCB close-up showing Z4531N, Z4163N, GI AY-5-1013A UARTs, CTS 206-6 DIP switches, and P8624 GM7427N IC

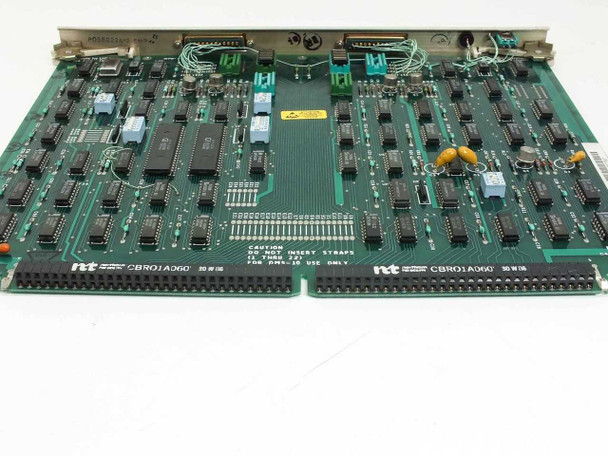

  • Nortel QPC139B SDI2 card — top-down overview showing CBR01A060 markings, Caution strap warning label, and full component layout
  • Nortel / Meridian Serial Data Interface (QPC139B)
$75.00
Was: $150.00
Current Stock: 1

Sold Out

Description

Nortel Meridian QPC139B Serial Data Interface Card SDI2 PBX Module

Serial Data Interface card for Nortel Meridian 1 PBX systems. Provides two serial data ports via DB-25 connectors for system connectivity and data communication.

Specifications & What's Included

  • Model: QPC139B (Board Designation: CBR01A060)
  • Type: Serial Data Interface (SDI) Card – SDI2
  • Ports: 2x DB-25 Female connectors (J3 and J4)
  • Compatible with: Nortel Meridian 1 PBX System
  • Form Factor: Card/Module
  • Manufactured: USA
  • Included: Card only; no accessories

Applications

Serial Data Interface cards were used in Nortel Meridian 1 PBX installations to enable external system connectivity and data exchange. These modules provided serial communication pathways for integration with peripheral equipment, network interfaces, and third-party systems. The SDI2 designation indicates this is a two-port variant, allowing dual simultaneous connections. Typical installations included call accounting systems, computer telephony integration (CTI) platforms, and data network interfaces in enterprise telephone systems.

Condition: Used
This Nortel Meridian QPC139B Serial Data Interface (SDI2) card has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in service. The PCB shows normal age-related wear consistent with prior installation, and the faceplate and DB-25 connectors appear intact with no visible damage. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Nortel
Model:
QPC139B
MPN:
QPC139B
Secondary Model:
CBR01A060
Type:
Serial Data Interface Card
SKU:
12217
Form Factor:
Card / Module
Compatible With:
Nortel Meridian 1 PBX System
Interface Type:
Serial Data Interface (SDI)
Connector Type:
DB-25 Female (2x front panel, J3 and J4)
Card Designation:
SDI2
Number of Ports:
2 (J3 and J4 DB-25 connectors)
Board Designation:
CBR01A060
Country/Region of Manufacture:
USA
Condition:
Used – Pulled from Working Environment
Seller Notes:
Card only; no additional accessories included.
Condition Notes:
Nortel Meridian QPC139B Serial Data Interface SDI2 card. Used, pulled from a working environment. Inspected and in good condition; PCB and DB-25 connectors intact. Please view our photos and contact us with any questions.
View AllClose
