Description
Norstar NT8B70AH-93 StarTalk SW 2.0.3A Voice Mail System PBX 50MB SCSI

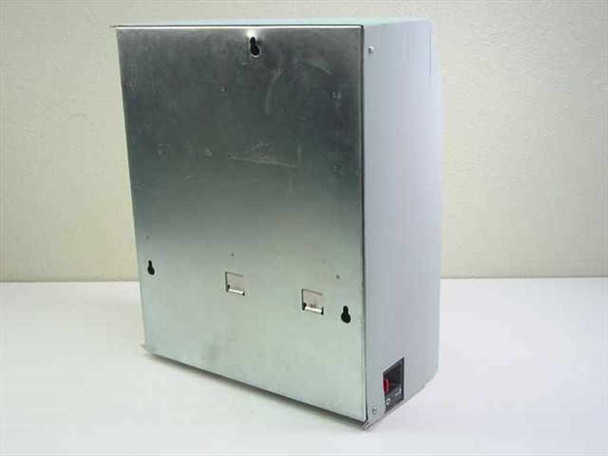

The Norstar NT8B70AH-93 is a StarTalk voice mail system designed to integrate with Nortel's Norstar Meridian PBX platform. Running software version 2.0.3A, this self-contained unit provides automated attendant and voice mail services for small to mid-size business telephone systems. The system houses its own VoySys Corp motherboard, SCSI hard card storage, and internal power supply in a compact wall-mount/desktop enclosure.
Specifications & What's Included

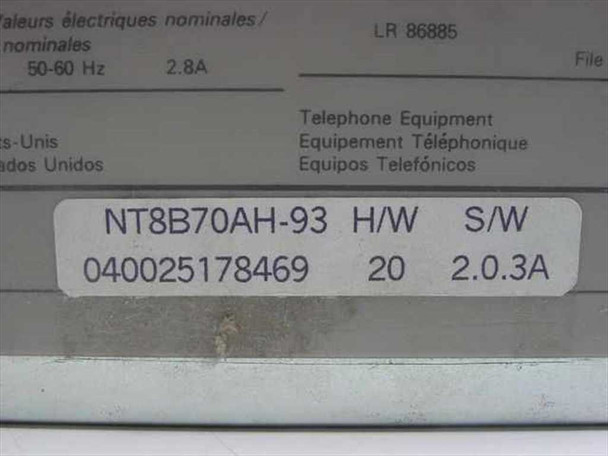

- Model: NT8B70AH-93
- Software Version: SW 2.0.3A
- Hardware Version: H/W 20

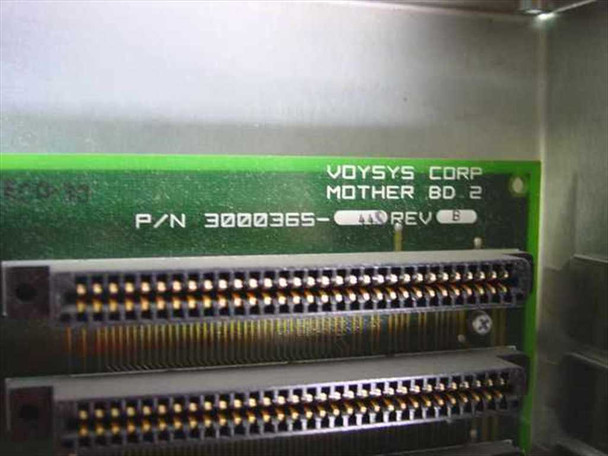

- Motherboard: VoySys Corp Mother BD 2, P/N 3000365, Rev B
- Storage: 50MB SCSI Hard Card, P/N 2203324-3
- Power Supply: Fortron/Source FC135-40P, P/N 4000989-1
- Power Input: 90–130V~ 3.0A / 180–250V~ 1.5A, 47–63Hz
- Power Output: +5V/15.0A, +12V/4.2A, -12V/0.25A, -5V/0.3A
- Power Draw: 2.8A at 50–60Hz (per rating plate)
- Certifications: CSA (LR 86885), UL

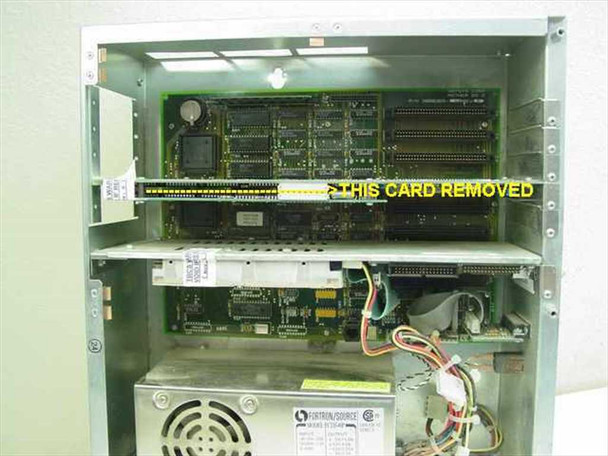

- 4-Port Line Card (P/N 3001019-1) — removed; not included
- Form Factor: Compact desktop/wall-mount enclosure with dual front-door panels
- Country of Manufacture: Canada
Applications
The Norstar StarTalk system was designed specifically for use with Nortel's Norstar Meridian Key Service Unit (KSU) telephone platforms, including the Norstar MICS and CICS systems popular in small and medium business installations during the 1990s and early 2000s. It provided integrated voice mail and auto-attendant capabilities — greeting callers, routing calls to extensions, and storing messages — without requiring a separate external voicemail server. The StarTalk was a widely deployed solution in professional offices, clinics, and multi-line business environments that relied on Norstar key systems. These units are still sought after by businesses maintaining legacy Norstar telephone infrastructure, as well as technicians servicing or refurbishing Norstar-based systems. The NT8B70AH-93 variant with SW 2.0.3A firmware represents a mid-generation release of the StarTalk product line from the mid-to-late 1990s.
This Norstar NT8B70AH-93 StarTalk SW 2.0.3A Voice Mail System has been inspected and is in good used condition. It was pulled from a working environment where it was previously in service. The unit includes the VoySys Corp motherboard (P/N 3000365) and the 50MB SCSI hard card (P/N 2203324-3). Please note that the 4-port line card (P/N 3001019-1) has been removed and is not included. The enclosure shows typical wear consistent with normal use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Nortel (Norstar) |
Model: |
NT8B70AH-93 |
MPN: |
NT8B70AH-93 |
Secondary Model: |
StarTalk SW 2.0.3A |
Type: |
Voice Mail System / PBX Voicemail Unit |
SKU: |
30074 |
Software Version: |
SW 2.0.3A |
Hardware Version: |
H/W 20 |
Motherboard: |
VoySys Corp Mother BD 2, P/N 3000365 |
Hard Drive: |
50MB SCSI Hard Card, P/N 2203324-3 |
Power Supply: |
Fortron/Source FC135-40P, P/N 4000989-1 |
Power Input: |
90-130V~3.0A / 180-250V~1.5A, 47-63Hz |
Power Output: |
+5V/15A, +12V/4.2A, -12V/0.25A, -5V/0.3A |
Line Card: |
4-Port Line Card (P/N 3001019-1) — removed |
Interface: |
SCSI |
Form Factor: |
Desktop / Wall-Mount Cabinet |
Compatible With: |
Norstar Meridian PBX telephone systems |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes VoySys motherboard and 50MB SCSI hard card; 4-port line card has been removed |
Country/Region of Manufacture: |
Canada |
Condition Notes: |
Norstar NT8B70AH-93 StarTalk SW 2.0.3A voice mail system in good used condition, pulled from a working environment. Includes VoySys motherboard (3000365) and 50MB SCSI hard card (2203324-3). 4-port line card removed, not included. |
