Description

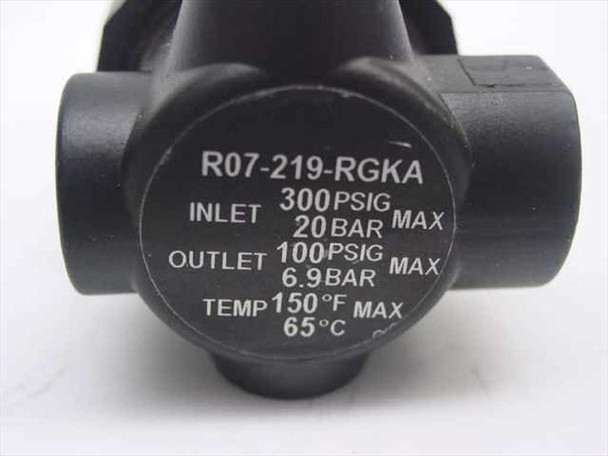

Norgren R07-219-RGKA Miniature Pressure Regulator 300 PSIG Inlet 100 PSIG Outlet
The Norgren R07-219-RGKA is a compact inline pressure regulator designed to reduce and maintain downstream air or gas pressure in pneumatic systems. It accepts inlet pressures up to 300 PSIG (20 BAR) and regulates outlet pressure to a maximum of 100 PSIG (6.9 BAR). This unit is the non-gauge version — the gauge port is present but no gauge is installed.
Specifications & What's Included
- Model: R07-219-RGKA
- Manufacturer: Norgren
- Type: Miniature inline pressure regulator, no gauge
- Inlet pressure (max): 300 PSIG / 20 BAR
- Outlet pressure (max): 100 PSIG / 6.9 BAR
- Max temperature: 150°F / 65°C
- Body: Black thermoplastic/polymer construction
- Adjustment: Top-mounted knurled knob with protective cap
- Ports: Side inlet and outlet ports; gauge port present (no gauge installed)
- Included: Regulator only — no gauge, fittings, or mounting hardware
Applications
The Norgren R07 series miniature pressure regulators are standard components in compressed air and pneumatic control systems across manufacturing, automation, laboratory, and light industrial environments. They are used wherever a stable, reduced downstream pressure is needed — such as feeding pneumatic actuators, cylinders, air tools, spray equipment, and instrumentation. The compact body makes them well suited for panel or inline mounting in space-constrained installations. Norgren is a long-established UK-based manufacturer of pneumatic and fluid control components, and the R07 series has been widely used in industrial and OEM pneumatic circuits for decades.
This Norgren R07-219-RGKA miniature pressure regulator has been inspected and appears to be in good used condition. The body is black polymer and shows light handling wear consistent with prior use; no cracks, chips, or damage are visible. The adjustment knob cap and knurled adjustment ring are intact, and all ports appear clean and unobstructed. This unit does not include a gauge and has not been powered or bench-tested at our facility, but was pulled from a working environment where it was previously in service. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Norgren |
Model: |
R07-219-RGKA |
MPN: |
R07-219-RGKA |
Type: |
Miniature Pressure Regulator |
SKU: |
31290 |
Inlet Pressure (Max): |
300 PSIG / 20 BAR |
Outlet Pressure (Max): |
100 PSIG / 6.9 BAR |
Max Temperature: |
150°F / 65°C |
Gauge Included: |
No |
Body Material: |
Polymer / Thermoplastic |
Seller Notes: |
Regulator only — no gauge, no fittings, no mounting hardware included. |
Country/Region of Manufacture: |
United Kingdom |
Condition Notes: |
This Norgren R07-219-RGKA pressure regulator has been inspected and is in good used condition with light handling wear. No cracks or damage visible. Pulled from a working environment. No gauge included. Please contact us with any questions. |
