Description
Nokia 468221A DVPA 11 1900MHz GSM Dual Duplex Unit w/ 993997c RFBP Cable
GSM Dual Duplex Unit for Nokia BTS base transceiver stations operating in the 1900 MHz PCS band. This module handles simultaneous transmit and receive operations across multiple antenna and port configurations.
Specifications & What's Included
- Model: Nokia 468221A DVPA 11
- Frequency Band: 1900 MHz (PCS Band)
- Standard: GSM
- Antenna Ports: ANT 1, ANT 2 (TNC-type)
- TX Ports: TX1, TX2
- RX Ports: RX1, RX1ext, RX2, RX2ext
- Interface: D-Sub multi-pin (X1 connector)
- Included: Nokia 993997c RFBP Cable
- Manufactured: Finland
Applications
This duplex unit was used in Nokia GSM base station systems for PCS-band cellular networks. It provides dual-channel transmit and receive capability for BTS equipment, supporting configurations with DV-(X5/X14/X23) and RT-(X14) modules. Commonly deployed in legacy GSM infrastructure throughout the 1900 MHz band.
Condition: Used

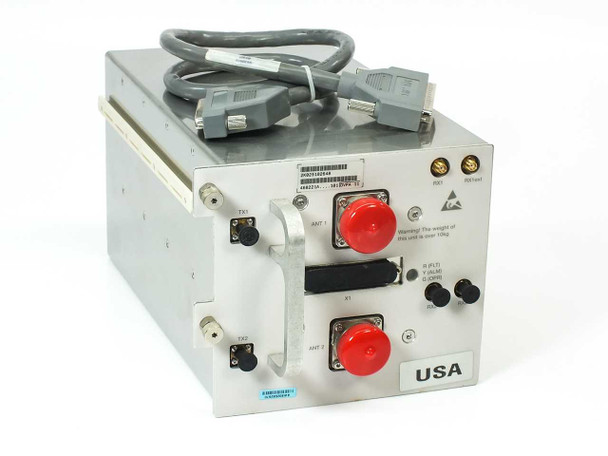

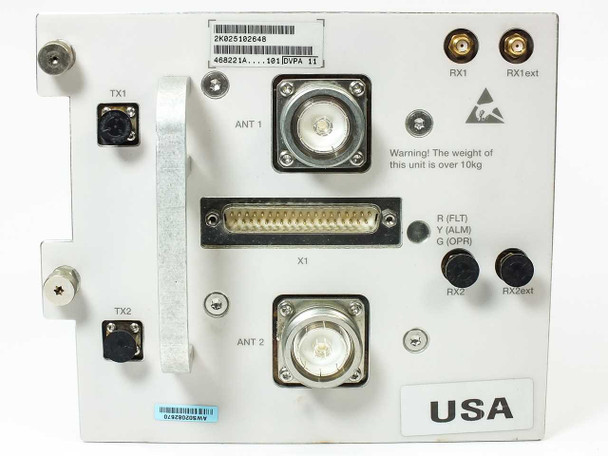

This Nokia 468221A DVPA 11 1900MHz GSM Dual Duplex Unit has been inspected and is in good used condition. It was pulled from a working environment where it was previously in service. The enclosure is clean overall with light surface wear consistent with normal field use. The front-panel TNC antenna ports (ANT 1, ANT 2), TX and RX ports, and D-Sub X1 connector all appear intact with no visible damage. The included Nokia 993997c RFBP cable is present and in good condition. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Nokia 468221A DVPA 11 1900MHz GSM Dual Duplex Unit has been inspected and is in good used condition. It was pulled from a working environment where it was previously in service. The enclosure is clean overall with light surface wear consistent with normal field use. The front-panel TNC antenna ports (ANT 1, ANT 2), TX and RX ports, and D-Sub X1 connector all appear intact with no visible damage. The included Nokia 993997c RFBP cable is present and in good condition. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Nokia |
Model: |
468221A |
MPN: |
468221A |
Secondary Model: |
DVPA 11 |
Type: |
GSM Dual Duplex Unit |
SKU: |
34928 |
Frequency Band: |
1900 MHz (PCS Band) |
Standard: |
GSM |
Application: |
GSM Base Transceiver Station (BTS) |
Antenna Ports: |
ANT 1, ANT 2 (TNC-type) |
TX Ports: |
TX1, TX2 |
RX Ports: |
RX1, RX1ext, RX2, RX2ext |
Interface Connector: |
D-Sub multi-pin (X1 connector) |
Included Cable: |
Nokia 993997c RFBP Cable |
Cable Compatibility: |
FOR DV-(X5/X14/X23), FOR RT-(X14) |
Cable Connectors: |
D-Sub male/female multi-pin |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes Nokia 993997c RFBP cable |
Country/Region of Manufacture: |
Finland |
Form Factor: |
Module / Card |
Compatible With: |
Nokia GSM BTS base station equipment |
Condition Notes: |
Nokia 468221A DVPA 11 GSM Dual Duplex Unit in good used condition. Pulled from a working environment. Includes 993997c RFBP cable. Ports and connectors appear intact. Please contact us with any questions. |
