NKS Gate Cut Press Pressure Gauge 0-350 kgf/cm2 w/ ASK SAN-400 Regulator Valve

NKS Gate Cut Press Pressure Gauge 0-350 kgf/cm2 w/ ASK SAN-400 Regulator Valve

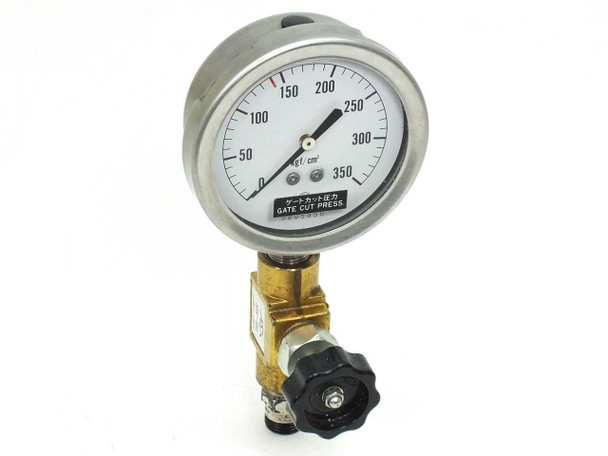

This is an NKS Gate Cut Press pressure gauge with a 0-350 kgf/cm2 range, mounted to an ASK SAN-400 brass regulator valve as a single integrated assembly. The gauge face is labeled in both Japanese (ゲートカット圧力) and English (GATE CUT PRESS.) and is intended for monitoring gate cut pressure in injection molding and related industrial process applications. The stainless steel gauge case houses a clean, fully legible white dial, and the ASK SAN-400 valve body features a hand-knob adjustment and a threaded male outlet port.

Specifications & What's Included

• Gauge Brand: NKS
• Gauge Label: Gate Cut Press / ゲートカット圧力
• Pressure Range: 0-350 kgf/cm2
• Gauge Case Material: Stainless steel
• Valve Brand: ASK
• Valve Model: SAN-400
• Valve Body Material: Brass
• Valve Control: Hand-knob adjustment
• Outlet: Threaded male port
• Serial Number (gauge): 9805856
• Included: NKS pressure gauge and ASK SAN-400 regulator valve as one assembly

Applications

Gate cut pressure gauges of this type are used in plastic injection molding systems to monitor the hydraulic or pneumatic pressure at the gate cut mechanism — the point where the runner or sprue is severed from the molded part during or after the injection cycle. Accurate pressure monitoring at this stage helps ensure consistent part quality and prevents damage to molds and tooling. The integrated ASK SAN-400 regulator valve allows for manual flow or pressure adjustment at the point of use. This style of gauge-and-valve assembly is common in Japanese injection molding machinery and industrial process equipment, and NKS and ASK are well-regarded Japanese manufacturers in the precision instrumentation and fluid control markets. Units like this are used in plastics manufacturing facilities, tool rooms, and industrial maintenance settings requiring precise pressure indication at controlled process points.
