Pulnix TM-745 CCD Microscope Camera & Fiber Optic Light Source Mask Aligner

Pulnix TM-745 CCD Microscope Camera & Fiber Optic Light Source Mask Aligner

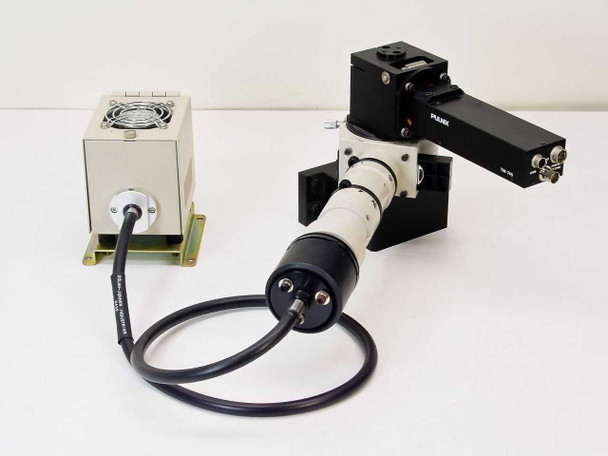

This is a Pulnix TM-745 CCD microscope camera system complete with a fiber optic illuminator tube assembly and a fan-cooled fiber optic light source unit, removed together from a McBain Mask Aligner. The TM-745 is a compact monochrome CCD camera designed for machine vision and microscopy integration, outputting an analog composite video signal suitable for monitors, frame grabbers, and image analysis systems. The system includes an articulating mount/arm assembly that positions the camera over the optical path, with a switchable brightfield/darkfield illumination mode.

Specifications & What's Included

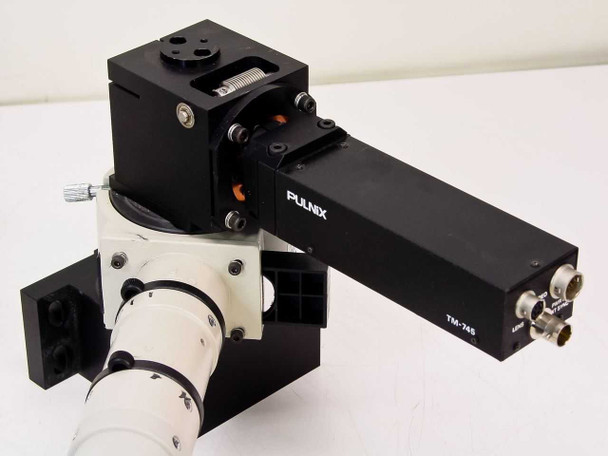

• Camera: Pulnix TM-745 CCD monochrome camera

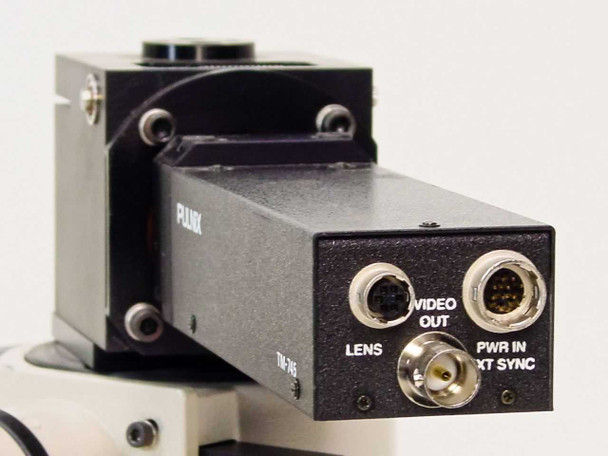

• Video output: Composite analog video via multi-pin circular connector (VIDEO OUT)
• Lens interface: BNC connector (LENS) on rear panel
• Sync input: PWR IN / XT SYNC multi-pin connector on rear panel
• Illumination mode: Switchable brightfield / darkfield (PUSH B.F. / PULL D.F. labeled on mount)

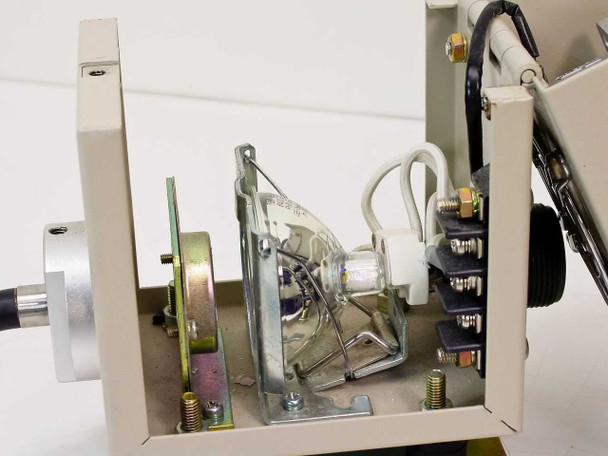

• Light source: Fan-cooled fiber optic light source unit with internal lamp and reflector assembly

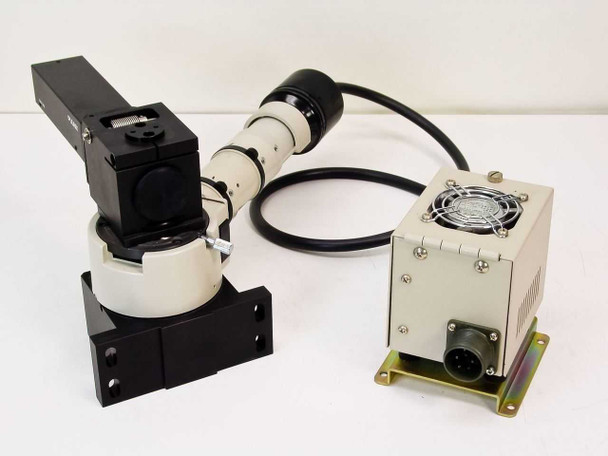

• Light source power connector: MS3102A18-1P military-style circular multi-pin connector
• Fiber optic cable: Black flexible cable connecting camera assembly to light source
• Fiber optic tube: White barrel assembly with threaded focusing/zoom rings and black end cap
• Mount: Black anodized articulating arm/bracket assembly
• Provenance: Removed from a McBain Mask Aligner

Applications

The Pulnix TM-745 is a machine vision CCD camera used in semiconductor inspection, photolithography, and precision optical alignment systems. Mask aligners — such as the McBain units common in semiconductor fab and university cleanroom environments from the 1980s through the 2000s — used integrated camera and fiber optic illumination systems like this one to allow operators to visually align photomasks to wafer patterns on a video monitor rather than through an eyepiece. The fiber optic light source delivers controlled, cool illumination through the optic tube to the specimen plane, while the CCD camera captures the image for real-time display or digital acquisition. Beyond mask alignment, this type of camera and illuminator assembly is used in wafer inspection stations, probe stations, wire bonders, pick-and-place equipment, and general laboratory microscopy wherever analog video output and fiber optic epi-illumination are needed. The brightfield/darkfield switching capability makes it versatile for surface inspection tasks requiring contrast enhancement.
