Nikon AFX-IIA Microscope Camera Shutter Assembly Controller w/ Eyepiece

Nikon AFX-IIA Microscope Camera Shutter Assembly Controller w/ Eyepiece

The Nikon AFX-IIA is a photomicrography shutter assembly and controller designed to attach to Nikon research microscopes for scientific and documentary photography. The system consists of a conical funnel housing that mounts above the microscope optical path, a shutter mechanism for controlling film exposure, a controller body with rear multi-pin interface connector, and an eyepiece for focusing and framing. A beam splitter prism inside the funnel directs light between the eyepiece and the camera port, allowing the operator to compose the image before triggering the shutter.

Specifications & What's Included

• Manufacturer: Nikon
• Model: AFX-IIA
• Country of Manufacture: Japan
• Type: Photomicrography shutter assembly and controller
• Components: Funnel/cone housing shutter assembly, controller body, eyepiece
• Internal optics: Beam splitter prism with anti-reflection multi-coating (visible in photos)

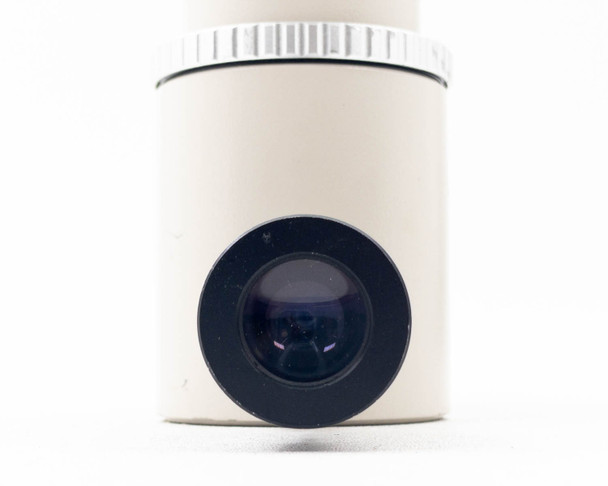

• Eyepiece: Black anodized barrel with knurled focus ring and multi-coated lens elements
• Rear interface: Multi-pin D-sub style connector (blue housing) for shutter control signal
• Viewfinder: Shows framing reticle with corner marks (visible through eyepiece in photos)

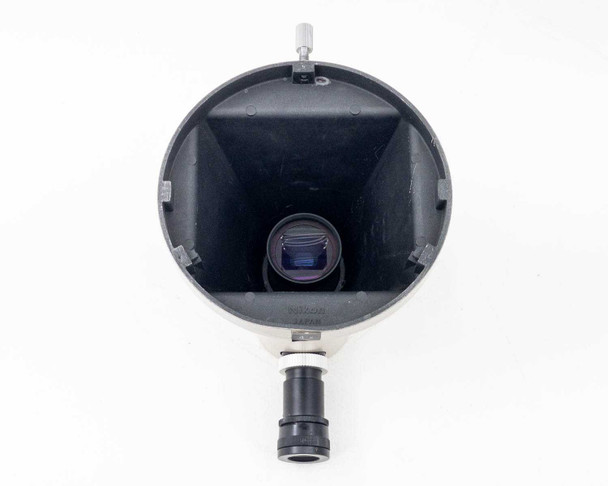

• Funnel housing: Conical form, cream/beige painted metal body with mounting collar and adjustment screw
• Form factor: Benchtop microscope attachment

Applications

The Nikon AFX series shutter systems were standard accessories for Nikon's research-grade upright microscopes of the 1970s through 1990s, including the Optiphot, Labophot, and related platforms. These units were used in biology, pathology, materials science, and semiconductor inspection labs where repeatable, controlled film exposures of microscope images were required. The AFX controller would interface with a compatible Nikon camera back or motor-driven film camera mounted above the funnel, triggering the shutter at precise intervals or on demand. The eyepiece allowed the operator to view and focus the microscope image through the same optical path used for photography, with the beam splitter dividing light between the viewing port and the film plane. This type of photomicrography attachment has largely been superseded by digital camera adapters and C-mount sensors, but AFX units remain in demand for labs maintaining legacy Nikon film-based documentation systems and for collectors of Nikon microscope accessories.
