Nicolet Magna 000-869102 Magnum End Plate Board 410-110300 Spectrometer

(No reviews yet) Write a Review
SKU:
49127
MPN:
410-110300
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
24.00 LBS
Shipping:
Calculated at Checkout

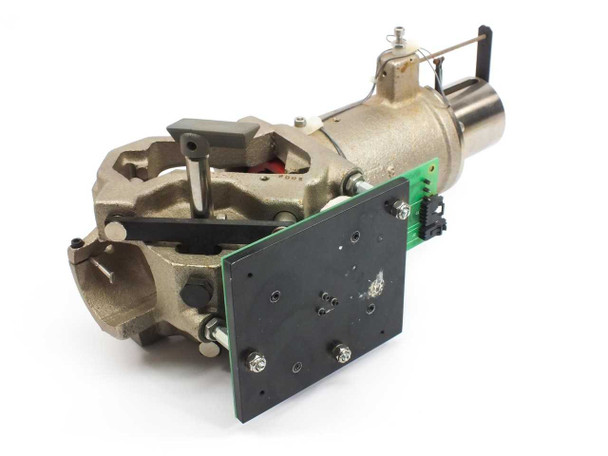

  • Nicolet Magna 000-869102 Magnum End Plate Board 410-110300 — front-left three-quarter view showing cast metal housing and attached green PCB

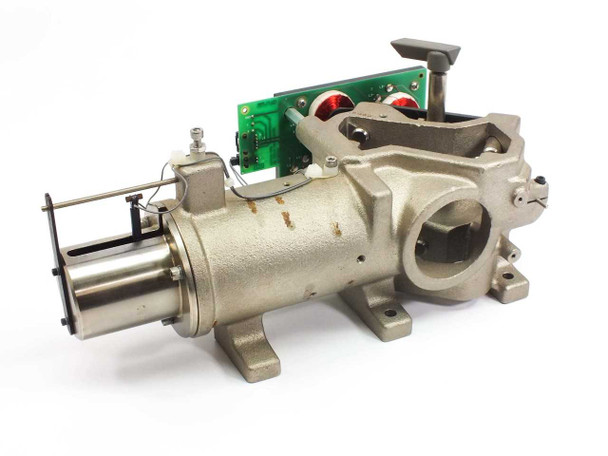

  • Nicolet Magna Magnum End Plate Board 000-869102 — right-side view showing full cast metal body with cylindrical bore, mounting feet, and PCB with red-wire coil components
  • Nicolet 000-869102 Magnum End Plate Board PCB close-up — silkscreen label reading '000-869102 MAGNUM END PLATE BD, NICOLET INST MADISON WI USA, 10/28/92, 95 27' with red toroidal coil visible

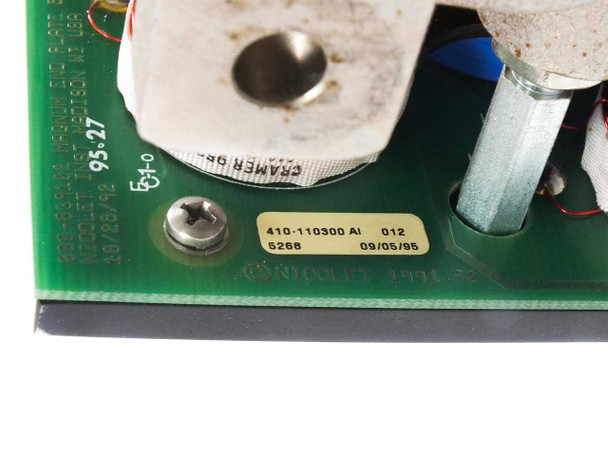

  • Nicolet 410-110300 assembly label close-up — yellow label reading '410-110300 A1 012, 6268, 09/05/95' on the green PCB surface

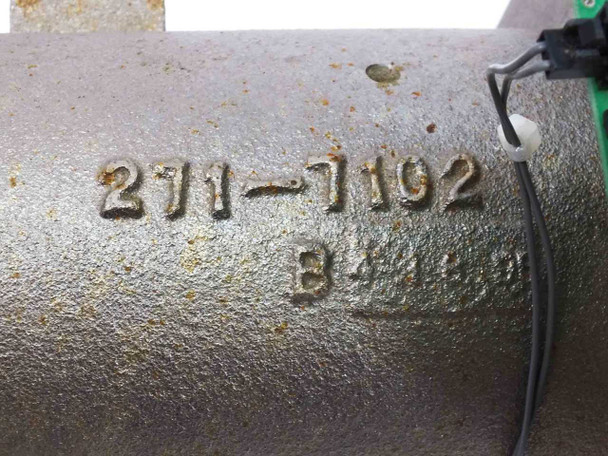

  • Nicolet Magna end plate housing — embossed casting number '271-7102' on the metal barrel body

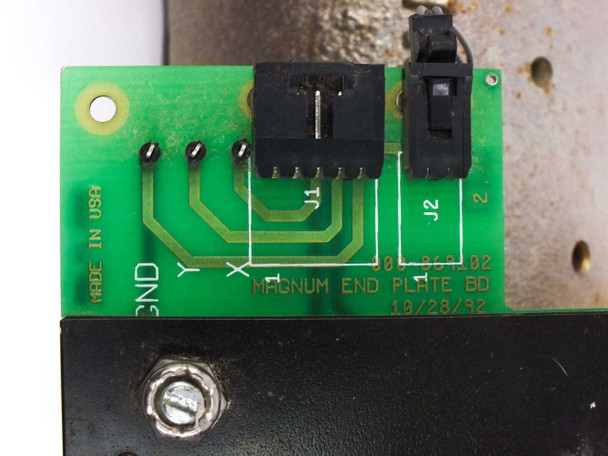

  • Nicolet 000-869102 Magnum End Plate Board — PCB reverse/connector side showing silkscreen 'MAGNUM END PLATE BD 10/28/92', connector headers J1 and J2, GND/Y/X labels, and 'MADE IN USA' marking

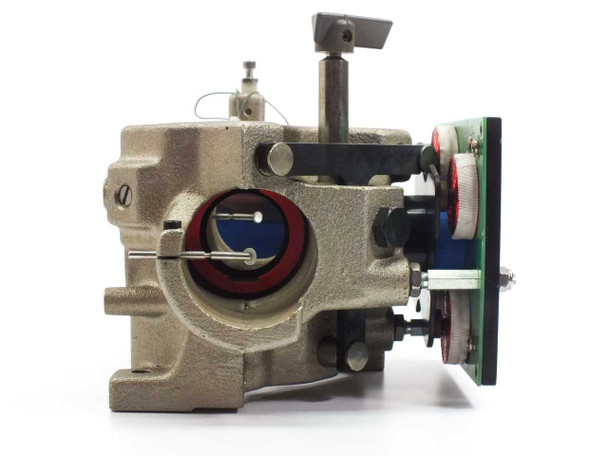

  • Nicolet Magna 000-869102 Magnum End Plate — front aperture view showing internal optical port with red seal ring, blue optical element, and needle/mirror assembly inside the cast housing
  • Nicolet Magna spectrometer end plate — close-up through-bore view showing internal optical mirror or beamsplitter element with blue coating and needle positioning mechanism
  • Nicolet Magna 000-869102 Magnum End Plate Board — top-down view showing cast housing aperture cutout, internal mechanism with '4006' markings, and PCB with trimmer potentiometers
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

Nicolet Magna 000-869102 Magnum End Plate Board 410-110300 Spectrometer Component

This is a detector end plate assembly for Nicolet Magna Series FTIR spectrometers. The unit consists of a cast metal housing with integrated PCB that serves as the optical assembly mounting point.

Specifications & What's Included

  • Brand: Nicolet Instrument
  • Model: 000-869102 / Secondary Model: 271-7102
  • MPN: 410-110300
  • PCB Revision: 410-110300 A1 012
  • PCB Date Code: 10/28/92
  • Assembly Label Date: 09/05/95
  • Manufactured: Nicolet Inst., Madison WI, USA
  • Cast metal housing with integrated Magnum End Plate PCB; no accessories included

Applications

This component functions as the detector end plate and optical assembly for Nicolet Magna Series FTIR (Fourier Transform Infrared) spectrometers. It mounts within the spectrometer's detection module. These systems were used in analytical laboratories for materials analysis, chemical identification, and spectroscopic measurement applications.

Condition: For Parts or Not Working
This Nicolet Magna Magnum End Plate Board (000-869102 / 410-110300) is being sold as-is for parts or repair. We are unable to test this component and cannot confirm whether it is complete or functional as intended. The cast metal housing shows surface oxidation and patina consistent with age — visible across the body and cylindrical bore area. The attached PCB (dated 10/28/92) appears intact with no obvious physical damage to the board, but has not been powered or evaluated. The internal optical assembly, including what appears to be a mirror or beamsplitter element with a red seal ring, is visible and present. Please review all photos carefully for a full picture of the cosmetic condition before purchasing. Contact us if you have any questions.
