Nicolet Analytical Instruments 068-7528 Raster Scan Display CRT 115VAC For Parts

(No reviews yet) Write a Review
SKU:
47510
MPN:
068-7528
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
66.00 LBS
Shipping:
Calculated at Checkout

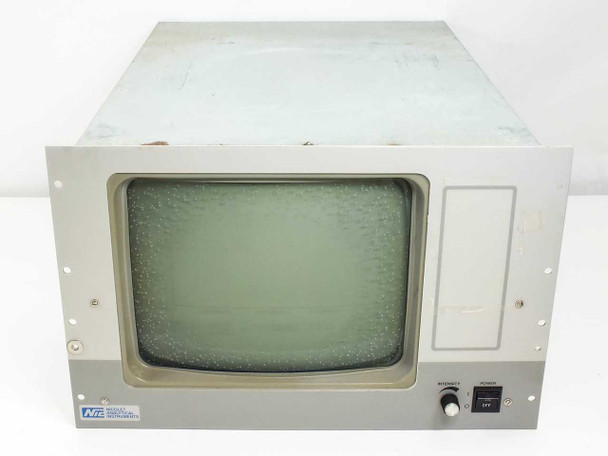

  • Nicolet Analytical Instruments 068-7528 Raster Scan CRT Display — full front view showing gray enclosure, CRT screen, intensity knob, and power switch
  • Nicolet Analytical Instruments 068-7528 — close-up front view of CRT screen showing green phosphor tube with speckled glass face and intensity control knob at lower right

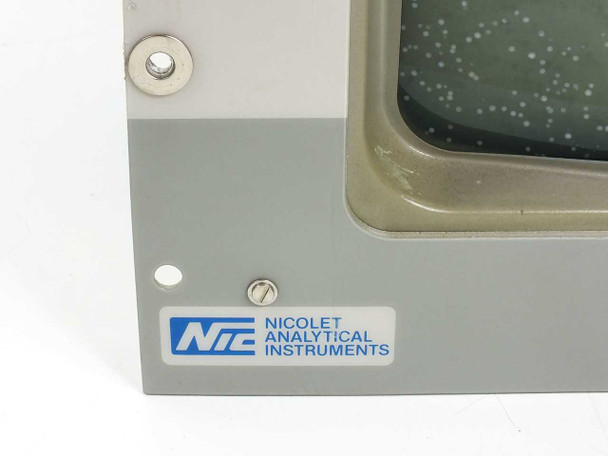

  • Nicolet Analytical Instruments logo badge on lower-left front panel of 068-7528 raster scan display — NIC logo clearly visible

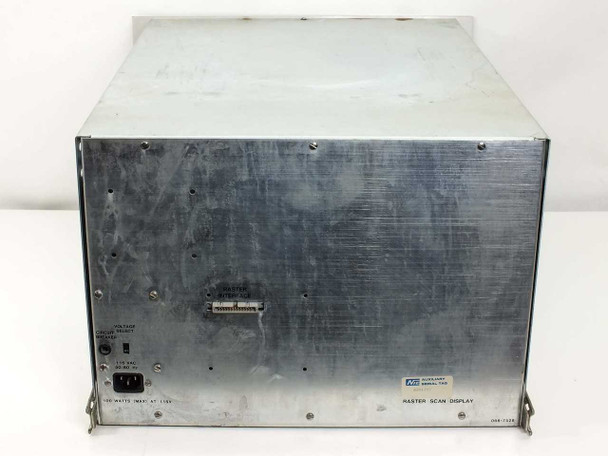

  • Nicolet Analytical Instruments 068-7528 rear panel view showing IEC AC inlet, circuit breaker, voltage select switch set to 115V, and Raster Scan Display label
  • Interior side view of Nicolet 068-7528 with cover removed — CRT tube, deflection yoke, transformers, and wiring harness visible
  • Interior top-down view of Nicolet 068-7528 showing CRT neck, deflection yoke assembly, high-voltage components, and main circuit board

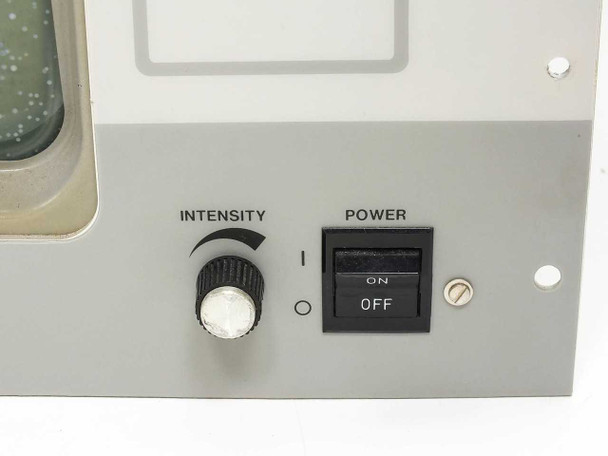

  • Close-up of front panel controls — INTENSITY rotary knob and POWER rocker switch (ON/OFF) on Nicolet 068-7528
  • Close-up of main circuit board inside Nicolet 068-7528 — TRW-labeled resistor network, capacitors, and multi-pin edge connector visible

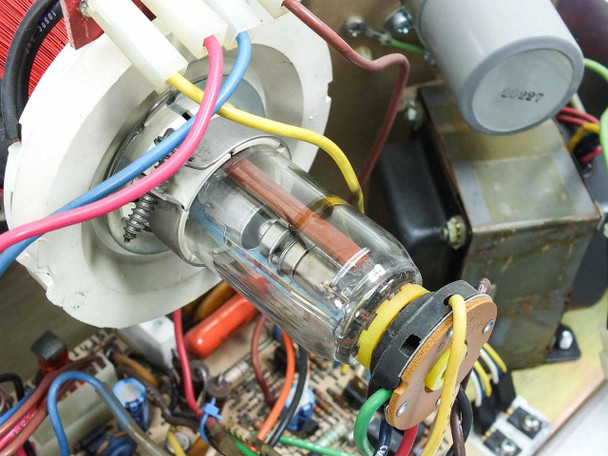

  • Close-up of CRT neck and electron gun assembly on Nicolet 068-7528 — vacuum tube envelope, deflection coil, and surrounding wiring visible

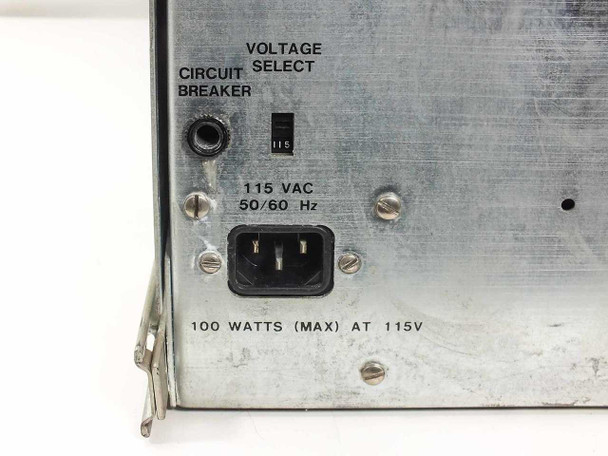

  • Close-up of rear panel power section on Nicolet 068-7528 — circuit breaker button, voltage select toggle at 115, IEC inlet, and '100 WATTS MAX AT 115V' label

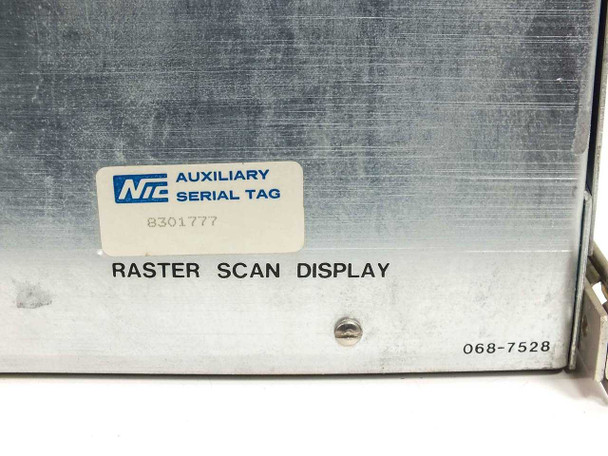

  • Nicolet Analytical Instruments 068-7528 Raster Scan Display - No Power - As Is
  • Nicolet Analytical Instruments 068-7528 Raster Scan Display - No Power - As Is
  • Nicolet Analytical Instruments 068-7528 Raster Scan Display - No Power - As Is
  • Nicolet Analytical Instruments 068-7528 Raster Scan Display - No Power - As Is
$100.00
Was: $200.00
Current Stock: 1

Sold Out

Description

Nicolet Analytical Instruments 068-7528 Raster Scan Display CRT 115VAC For Parts

Monochrome raster scan CRT display unit designed for scientific and analytical instrumentation applications. This benchtop/rack-mountable display served as a monitor output for laboratory analytical equipment.

Specifications & What's Included

  • Model: 068-7528
  • Display Type: Raster Scan Monochrome CRT
  • Power Requirements: 115 VAC, 50/60 Hz, 100W max
  • Front Panel Controls: Intensity knob, Power ON/OFF rocker switch
  • Rear Panel Features: Resettable circuit breaker, IEC C13 AC inlet, voltage select switch
  • Dimensions: 25" W x 19" H x 12" D (approx.)
  • Manufactured in United States

Applications

CRT displays of this type were standard output devices for Nicolet analytical instrumentation, including spectroscopy, chromatography, and materials analysis systems. These monochrome raster displays provided real-time data visualization and waveform monitoring in laboratory environments. Compatible with Nicolet-brand analytical platforms from the 1980s-1990s era. Typically integrated into larger instrument systems or operated as standalone display terminals.

Condition: For Parts or Not Working
This Nicolet Analytical Instruments 068-7528 Raster Scan CRT Display does not power on and is being sold as-is for parts or repair. Our staff bypassed the circuit breaker on the rear panel and still got no response from the unit, so the fault lies deeper in the circuitry. The enclosure shows scuffing and wear consistent with lab use; the rear panel has surface scratches and oxidation on the bare metal. The CRT screen face shows minor spotting on the glass. Internally, all major components appear intact — the CRT tube, deflection yoke, transformers, and main circuit board are all present and undamaged visually. No functionality is guaranteed. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Nicolet Analytical Instruments
Model:
068-7528
MPN:
068-7528
Type:
Raster Scan CRT Display
SKU:
47510
Condition:
As-Is / For Parts or Not Working
Display Technology:
CRT (Cathode Ray Tube)
Display Type:
Raster Scan Monochrome CRT
Power Requirements:
115 VAC, 50/60 Hz, 100W max
Voltage Select:
115V (switch visible on rear panel)
Max Power Consumption:
100 Watts at 115V
Front Panel Controls:
Intensity knob, Power ON/OFF rocker switch
Circuit Breaker:
Rear-panel resettable circuit breaker present
AC Inlet:
IEC C13 (standard 3-pin)
Dimensions:
25" W x 19" H x 12" D (approx.)
Form Factor:
Benchtop / Rack-Mountable
Application:
Scientific / Analytical Instrumentation
Seller Notes:
Sold as-is for parts or repair. Does not power on.
Country/Region of Manufacture:
United States
Condition Notes:
Nicolet Analytical 068-7528 Raster Scan CRT Display does not power on. Circuit breaker was bypassed with no response. Sold as-is for parts or repair only. No functionality guaranteed. Cosmetic wear consistent with lab use.
View AllClose

Related Products

Related Products

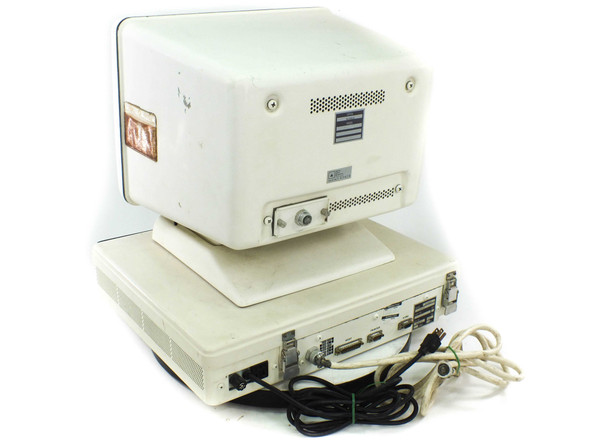

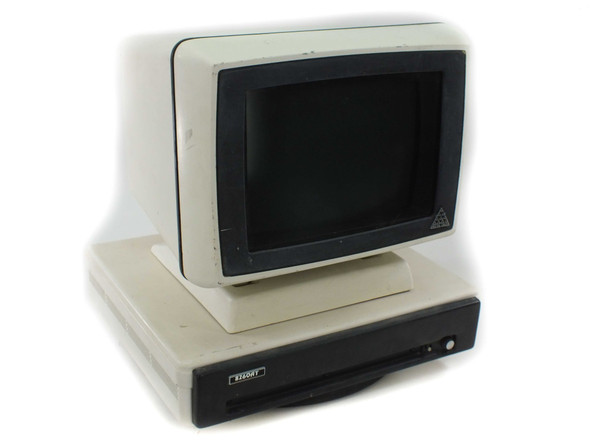

Delta Data Systems 8260AT vintage 1985 computer with CRT monitor — front three-quarter view showing complete system Delta Data Systems 8260AT computer and CRT monitor — rear three-quarter view showing rear panel ports and cabling
