Description

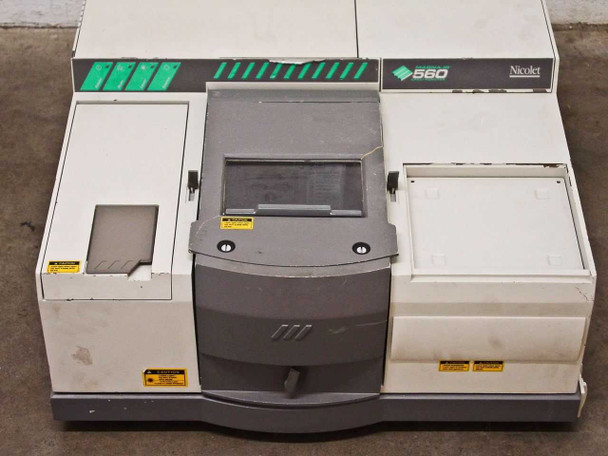

Nicolet Magna-IR 560 FTIR Spectrometer 100-240V 130W Benchtop Interferometer
The Nicolet Magna-IR 560 is a Fourier Transform Infrared (FTIR) spectrometer manufactured by Nicolet Instrument Corporation of Madison, Wisconsin. FTIR spectrometers measure the absorption of infrared light across a range of wavelengths to identify chemical compounds, characterize materials, and perform quantitative analysis — producing a molecular "fingerprint" that can be matched against reference libraries. This unit powers on and displays active green indicator lights for Power, Laser, and Source. No further spectral or functional testing has been completed. The plastic housing around the sliding sample compartment door is cracked in two places (clearly shown in photos). Does not include a computer or software. Freight shipping is required — please contact us before purchasing for a quote.
Specifications & What's Included
- Manufacturer: Nicolet Instrument Corporation, Madison, Wisconsin, USA
- Model: Magna-IR 560
- Type: Fourier Transform Infrared (FTIR) Spectrometer
- Series: Magna-IR Series
- Form Factor: Benchtop
- Power Max: 130W / 130VA
- AC Voltage: 100V – 240V (universal input)
- Frequency Range: 50 – 60 Hz
- Current Max: 1.3A (at 100V) – 0.6A (at 240V)
- Fuse: 2A, 5×20mm Timelag

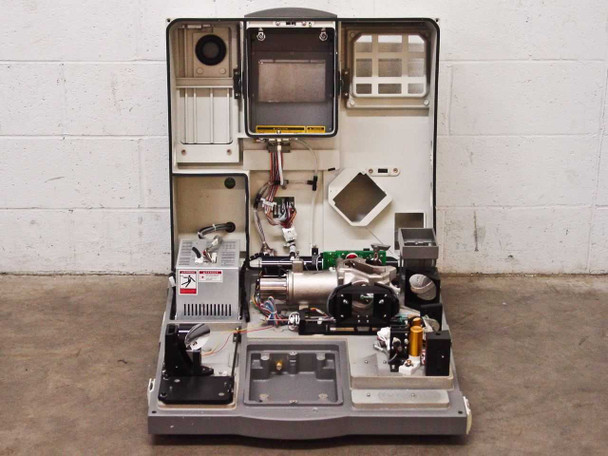

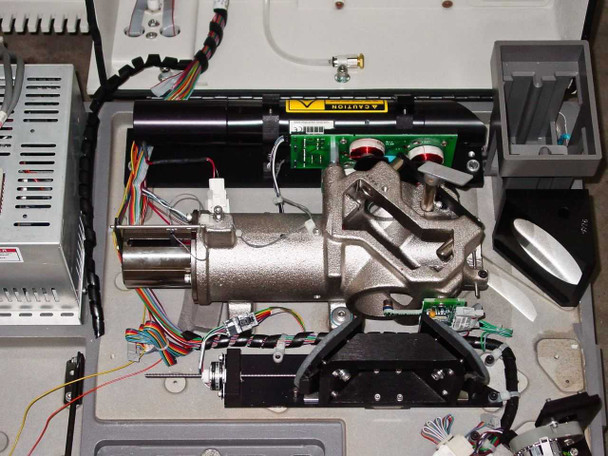

- Interferometer: Michelson-type interferometer with moving mirror assembly (visible in photos)
- IR Source: Two gold-capped ceramic IR source elements (visible in internal photos)
- Laser: HeNe reference laser (indicator lights confirmed active at power-on)

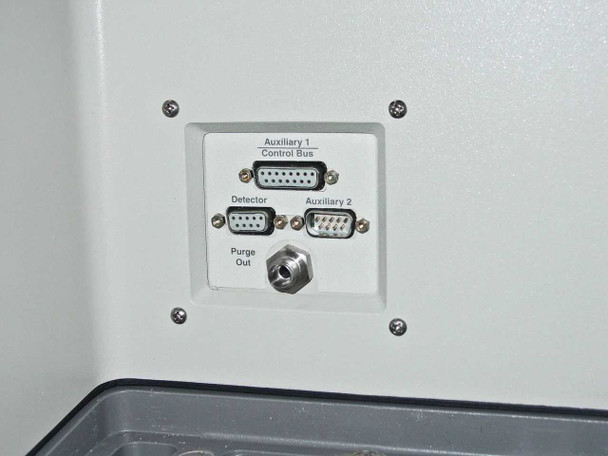

- Side Panel Ports: Auxiliary 1 Control Bus, Detector (DB-9), Auxiliary 2, Purge Out

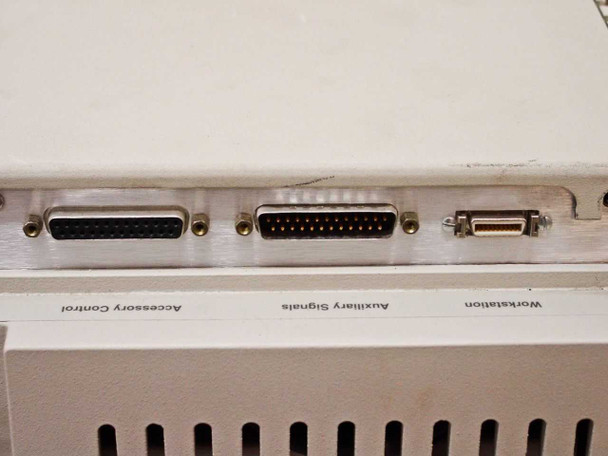

- Rear Panel Ports: Accessory Control (DB-25), Accessory Detector ×2 (DB-9), Purge In, Auxiliary 1 & 2
- Purge Capability: Yes — Purge In and Purge Out fittings present for dry air or nitrogen purge
- Country of Manufacture: United States (per rating label)

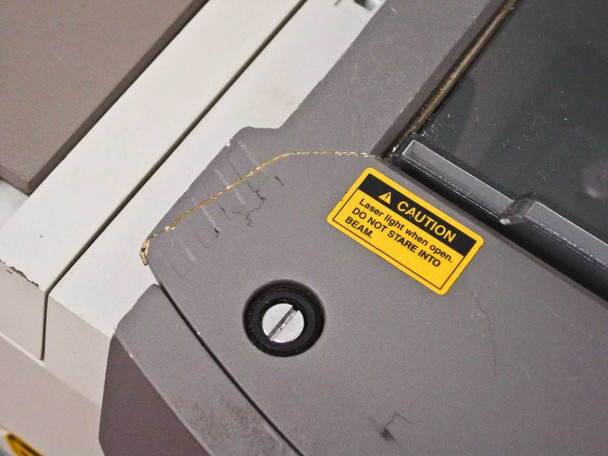

- Known Damage: Plastic housing cracked in two locations around the sliding sample compartment door
- Not Included: Computer, software, cables, or accessories
Applications
The Nicolet Magna-IR series was one of the most widely deployed research-grade FTIR platforms of the 1990s, found in university chemistry departments, pharmaceutical QC labs, polymer research facilities, environmental testing laboratories, and industrial R&D settings worldwide. FTIR spectrometers in this class are used for identifying organic and inorganic compounds, verifying raw material identity, monitoring chemical reactions, characterizing polymers and coatings, and detecting contaminants in solids, liquids, and gases. The Magna-IR 560 covers the mid-infrared spectral range and is compatible with a wide range of sampling accessories including ATR (attenuated total reflectance) cells, transmission cells, diffuse reflectance accessories, and gas-phase cells. The instrument requires Nicolet OMNIC software (or equivalent legacy Nicolet software) running on a connected PC — not included with this unit. Labs maintaining legacy analytical methods, service technicians sourcing parts, or buyers seeking an affordable entry into FTIR capability will find this platform well-documented with a large installed base and widely available consumables and accessories.
This Nicolet Magna-IR 560 FTIR Spectrometer powers on and shows active green indicator lights for Power, Laser, and Source — confirmed by our staff. No further functional or spectral testing has been completed. The plastic housing around the sliding sample compartment door is cracked in two places; both cracks are clearly documented in the photos. The spectrometer does not include a computer or software. Due to its size and weight, this item requires freight shipping — please contact us before purchasing for a shipping quote. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Nicolet |
Model: |
Magna-IR 560 |
MPN: |
MAGNA 560 |
Type: |
FTIR Spectrometer |
SKU: |
44290 |
Country/Region of Manufacture: |
United States |
Form Factor: |
Benchtop |
Power Requirements: |
100-240V AC, 50-60Hz, 130W/130VA max |
Current Rating: |
1.3A - 0.6A |
Fuse: |
2A 5x20mm Timelag |
Spectrometer Type: |
Fourier Transform Infrared (FTIR) |
Spectral Range: |
Mid-Infrared (MIR) |
Interferometer Type: |
Michelson interferometer |
Interface / Connectivity: |
DB-25 Accessory Control, DB-9 Detector, DB-9 Auxiliary 2 |
Rear Panel Ports: |
Accessory Control (DB-25), 2x Accessory Detector (DB-9), Purge In, Purge Out |
Side Panel Ports: |
Aux 1 Control Bus, Detector, Aux 2, Purge Out |
Purge Capability: |
Yes — Purge In and Purge Out fittings present |
Computer / Software Included: |
No — computer and software not included |
Seller Notes: |
Spectrometer only — no computer, software, or accessories included. |
Compatible With: |
Nicolet OMNIC software (not included); standard FTIR accessories |
Application: |
Chemical analysis, material identification, QC/QA, research labs |
Series: |
Magna-IR Series |
Condition Notes: |
This Nicolet Magna-IR 560 FTIR Spectrometer powers on with active Power, Laser, and Source indicators. The sliding door housing is cracked in 2 places. No computer or software included. Freight shipping required — contact us for a quote. |
