Nibco WD3010 4" Butterfly Valve Ductile Iron Wafer 250 PSI EPDM Seat w/ Handle

Nibco WD3010 4" Butterfly Valve Ductile Iron Wafer 250 PSI EPDM Seat w/ Handle

The Nibco WD3010 is a 4-inch ductile iron wafer-style butterfly valve rated for 250 PSI cold working pressure (CWP). It features an EPDM elastomeric seat, a ductile iron disc, and a stainless steel stem, making it suitable for a wide range of water and fluid handling applications. The valve ships with its lever lock handle assembly attached.

Specifications & What's Included

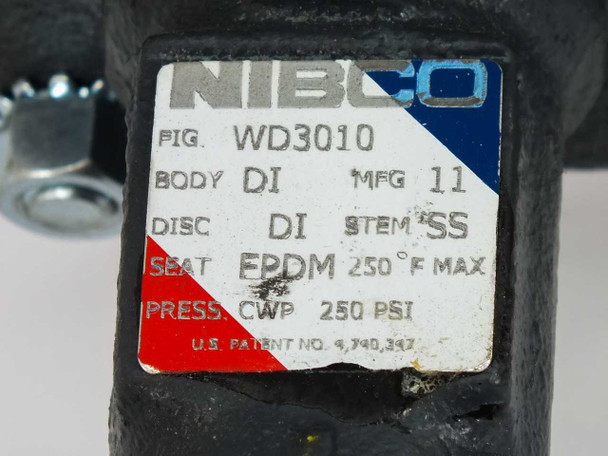

• Manufacturer: Nibco
• Figure / Model: WD3010
• Valve Style: Wafer (fits between standard pipe flanges)
• Pipe Size: 4 inch
• Body Material: Ductile Iron (DI)

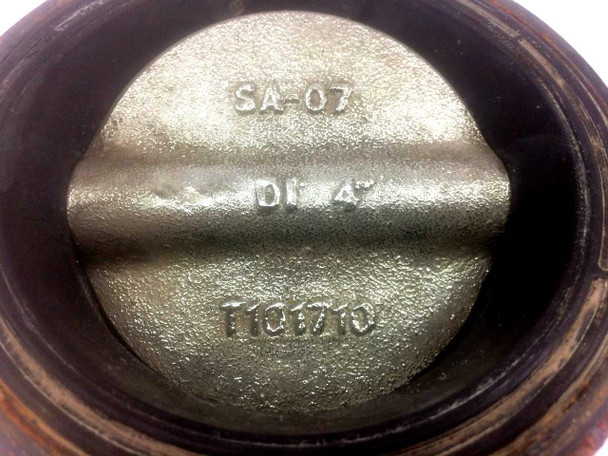

• Disc Material: Ductile Iron (DI)
• Stem Material: Stainless Steel (SS)
• Seat Material: EPDM elastomer
• Pressure Rating: 250 PSI CWP
• Max Temperature: 225°F continuous / 250°F intermittent

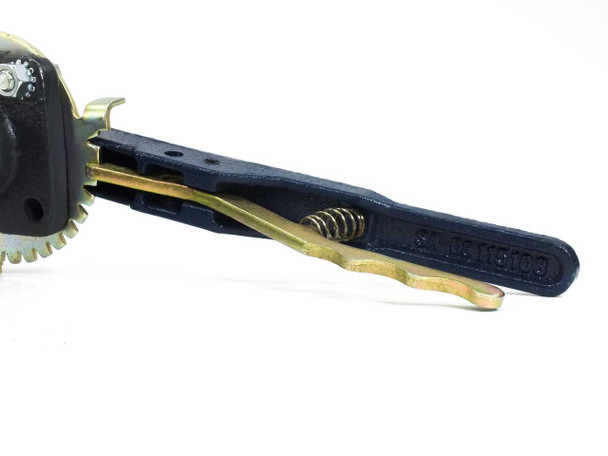

• Operator Type: Lever lock handle — manual, infinite position plate and lock
• Stem Type: Bare stem
• U.S. Patent No. 4,940,397
• Includes: Lever lock handle assembly

Applications

Wafer butterfly valves like the Nibco WD3010 are widely used in commercial and industrial piping systems for on/off and throttling control of water, mild chemicals, and other compatible fluids. The wafer design clamps between standard ANSI flanges, making it compact and easy to install in tight spaces. EPDM-seated valves are particularly common in HVAC chilled and hot water systems, potable water distribution, irrigation, fire protection, and light industrial process lines. The 250 PSI CWP rating and ductile iron construction make this valve suitable for higher-pressure service conditions where cast iron would be insufficient. The infinite-position lever lock allows the operator to hold the disc at any angle for precise flow regulation without a separate gear operator.
