NEY SweepSONIK 2 40-S2G-6T208V-A 40kHz Ultrasonic Generator 208V 811167

NEY SweepSONIK 2 40-S2G-6T208V-A 40kHz Ultrasonic Generator 208V 811167

The NEY SweepSONIK 2 is a 40 kHz ultrasonic generator designed to drive piezoelectric transducers in ultrasonic cleaning and process tanks. Made by NEY Ultrasonics (a division of CAE Ney, Bloomfield, CT), the SweepSONIK 2 uses frequency sweep modulation — continuously sweeping the output frequency through a defined band around the center frequency — to improve cleaning uniformity and reduce standing-wave patterns that can leave uncleaned spots in fixed-frequency systems. Output power is continuously adjustable from 10% to 100% via the front-panel POWER CONTROL knob. This unit is dated 4/16/98 and carries U.S. Patents 4,736,130 and 4,743,789.

Specifications & What's Included

• Manufacturer: NEY Ultrasonics / CAE Ney (Blackstone-NEY Ultrasonics)
• Model: SweepSONIK 2 / 40-S2G-6T208V-A
• Part Number: 811167
• Ultrasonic Frequency: 40 kHz
• Input Voltage: 208 VAC
• Input Current: 4 Amps
• Phase: Single Phase
• Input Frequency: 50/60 Hz
• Input Power: 600 Watts
• Output Power: 240 Watts
• Amplitude Control: 10% to 100% of full power
• Sweep Rate Range: 380 Hz to 530 Hz
• Maximum Transducer Cable Length: 50 feet

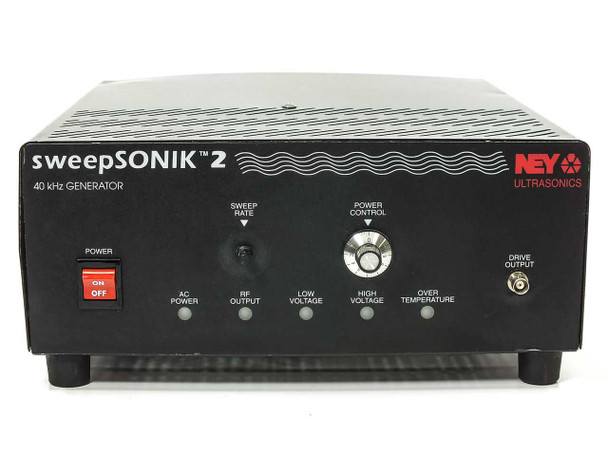

• Front Panel Controls: POWER on/off switch (red rocker), SWEEP RATE control (knob shaft present — knob cap missing), POWER CONTROL knob (present and intact), DRIVE OUTPUT connector (BNC-style)
• Front Panel Indicators: AC POWER, RF OUTPUT, LOW VOLTAGE, HIGH VOLTAGE, OVER TEMPERATURE LEDs
• Rear: Large dual cooling fan array, multi-pin circular transducer output connector, 4-pin circular connector, hardwired AC power cable (bare wire ends — no plug)
• Overall Dimensions: 16" W x 13" D x 6" H
• Manufacture Date: April 16, 1998

Applications

Ultrasonic generators like the SweepSONIK 2 are the power and control heart of an ultrasonic cleaning system, converting line power into the high-frequency electrical energy that drives the piezoelectric transducers bonded to a cleaning tank. At 40 kHz, the system produces cavitation — the rapid formation and collapse of microscopic bubbles — that scrubs contaminants from parts at a scale that brushes and solvents cannot reach. The swept-frequency design NEY patented was specifically developed to overcome the cleaning non-uniformity that plagues single-frequency generators: by continuously modulating the drive frequency across the 380–530 Hz sweep band, the generator prevents standing wave nodes from forming in fixed locations, resulting in more even energy distribution throughout the tank volume. This technology was widely used in precision parts cleaning for aerospace, medical device manufacturing, electronics, optics, and semiconductor applications — industries where complete and uniform removal of particulates, oils, and flux residues is critical. NEY Ultrasonics (later operating under the CAE and Blackstone-NEY names) was a well-regarded manufacturer of industrial ultrasonic cleaning systems from the 1970s through the 1990s. This 1998-built generator is compatible with NEY ultrasonic cleaning tanks designed for the SweepSONIK 2 series and accepts transducer arrays up to 50 feet away.
