Newton Power NPS-250CB A 250W ATX Power Supply 100-240V Desktop PC PSU
The Newton Power NPS-250CB A is a 250-watt ATX form-factor desktop computer power supply manufactured by Newton Power Ltd. It provides multiple regulated DC output rails to power standard ATX desktop PC components including the motherboard, drives, and peripherals. The unit accepts both 100–120V and 200–240V AC input, making it suitable for use in North America and internationally.
Specifications & What's Included
- Manufacturer: Newton Power Ltd.
- Model: NPS-250CB A, Rev 00
- Form Factor: ATX desktop power supply
- Maximum Output: 250W
- Input Voltage: 100–120V AC @ 6.5A / 200–240V AC @ 3.5A, 50/60Hz
- Output +5V: 25.0A
- Output +12V: 13.0A
- Output –12V: Included
- Output +3.3V: Included
- Output +5VSB (standby): 1.7A
- Max combined power on +5V, +3.3V, and +12V rails: 232W
- Cooling: 80mm case fan (rear exhaust)
- Connectors: 20-pin ATX main connector, multiple 4-pin Molex drive connectors, floppy/mini power connector
- Certifications: FCC, CE, UL (BC mark)
- Power supply unit only — no mounting screws or manual included
Applications
ATX power supplies like the NPS-250CB A are the standard internal power source for desktop personal computers, converting AC mains power into the regulated DC voltages required by PC components. The ATX standard, introduced by Intel in 1995, defined the connector pinout and form factor that became universal across desktop PCs through the late 1990s and 2000s. A 250W unit at this output profile is well-matched to mid-range desktop systems of that era — Socket 370, Socket A, and early Socket 478 platforms — powering a single processor, one or two hard drives, optical drives, and standard expansion cards. These supplies are commonly sought as direct replacements in older desktop systems, small form-factor towers, and legacy workstations that share the same ATX footprint and power requirements.

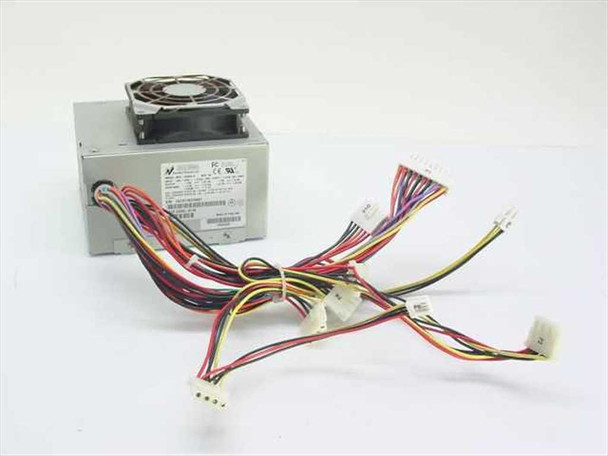

This Newton Power NPS-250CB A 250W ATX power supply has been bench-tested at our facility and is in good working condition. The unit powers on normally and outputs stable voltages across all rails (+5V, +12V, +3.3V, and +5VSB). The housing shows minor scuffs and light wear consistent with prior desktop use, but there is no damage to the casing, fan, or connector harness. All power connectors — including the 20-pin ATX main, 4-pin Molex drives, and floppy power leads — are present and in good condition. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Newton Power |
Model: |
NPS-250CB A |
MPN: |
NPS-250CB A |
Type: |
ATX Desktop Computer Power Supply |
SKU: |
23394 |
Maximum Power Output: |
250W |
Form Factor: |
ATX |
Input Voltage: |
100-120V AC / 200-240V AC |
Input Current: |
6.5A @ 100-120V / 3.5A @ 200-240V |
Output +5V: |
25.0A |
Output +12V: |
13.0A |
Output -12V: |
Included |
Output +3.3V: |
Included |
Output +5VSB: |
1.7A |
Max Combined Power (+5V & +3.3V): |
See label; max combined +5V, +3.3V, +12V: 232W |
Revision: |
Rev 00 |
Power Connectors: |
20-pin ATX main, 4-pin Molex, floppy power |
Certifications: |
FCC, CE, UL |
Country/Region of Manufacture: |
Taiwan |
Seller Notes: |
Bench-tested and in good working condition. No manual included. |
Condition Notes: |
This Newton Power NPS-250CB A 250W ATX power supply has been bench-tested at our facility and is in good working condition. Housing shows minor scuffs from prior use. All connectors intact. Please contact us with any questions. |
