Description
Newport FLW Q9000H 96-30M1 LED Panel Frequency Rate Meter 1/8 DIN 120VAC 5W

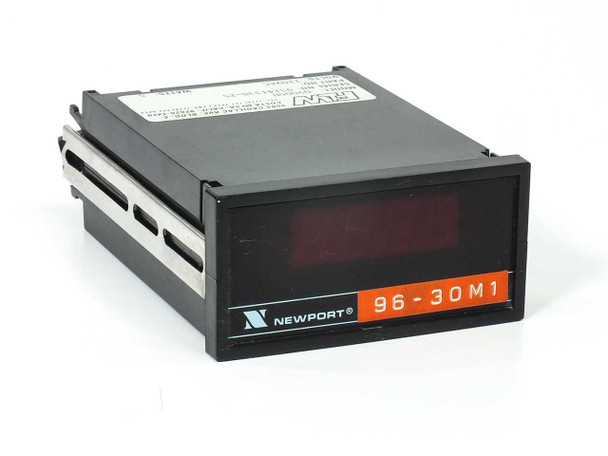

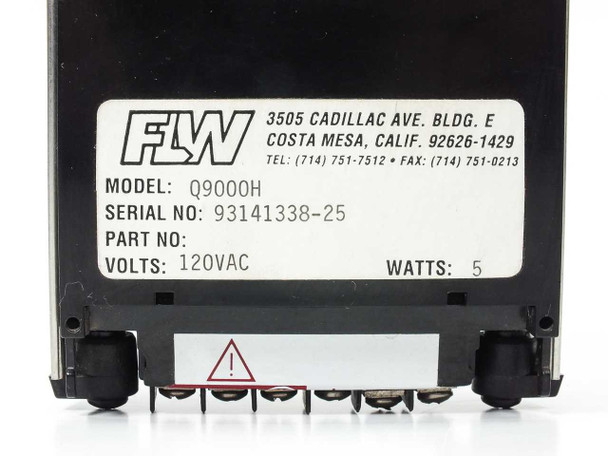

The Newport FLW Q9000H is a 1/8 DIN panel-mount digital frequency and rate meter featuring a bright 5-digit red LED display. Manufactured by FLW Inc. (Newport Electronics) in Costa Mesa, California, the Q9000H accepts a plug-in input module system — this unit is fitted with the 96-30M1 frequency/rate input module. It runs directly from 120VAC line power and consumes just 5 watts.
Specifications & What's Included
- Manufacturer: FLW Inc. / Newport Electronics
- Model: Q9000H
- Input Module: 96-30M1 (Frequency / Rate)
- Display: 5-digit red LED (7-segment)
- Form Factor: 1/8 DIN panel mount
- Supply Voltage: 120VAC
- Power Consumption: 5W

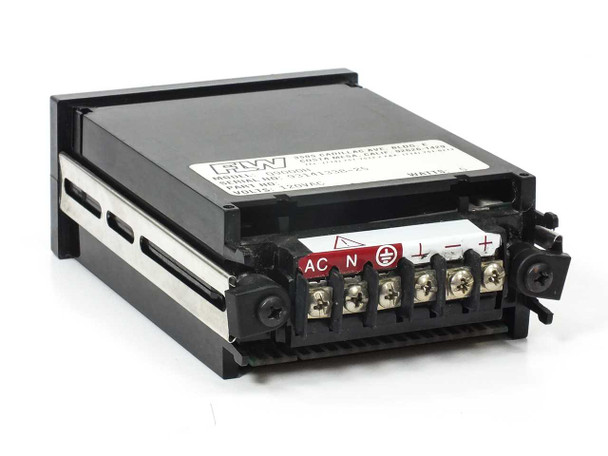

- Rear Terminals: AC, N, Earth Ground (power); +, −, + (signal input) — screw-terminal block
- Included: meter unit with 96-30M1 module installed
Applications
The Newport FLW Q9000H belongs to a widely-used family of modular 1/8 DIN panel meters that were standard fixtures in industrial control panels, process automation systems, and laboratory instrumentation from the 1980s through the 2000s. The plug-in module architecture lets a single meter chassis accept different input types — frequency/rate, voltage, current, temperature — simply by swapping the front-end module. With the 96-30M1 frequency module installed, this unit is used to monitor AC line frequency, motor speed (via pulse input), flow rates, or any other pulse- or frequency-based process variable. Newport FLW panel meters are still actively used for panel replacement and retrofit applications in facilities that standardized on the DIN panel format, as well as in lab bench setups requiring a compact, direct-reading digital display.
This Newport FLW Q9000H Panel Frequency Meter has been inspected and appears to be in good used condition. The unit was pulled from a working environment where it was previously in service. The red LED display illuminates (visible in our photos), and the rear screw terminals are clean and intact. There is minor cosmetic wear typical of a used panel instrument. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Newport |
Model: |
Q9000H |
Secondary Model: |
96-30M1 |
MPN: |
Q9000H |
SKU: |
49975 |
Type: |
Panel Frequency / Rate Meter |
Form Factor: |
1/8 DIN Panel Mount |
Display Type: |
Red LED, 5-Digit |
Input Module: |
96-30M1 (Frequency/Rate) |
Power Requirements: |
120VAC |
Power Consumption: |
5W |
Terminal Connections: |
AC, N, Earth Ground, +, −, + screw terminals |
Manufacturer: |
FLW / Newport Electronics |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Meter only — no panel cutout hardware or additional cables included. |
Condition Notes: |
This Newport FLW Q9000H Panel Frequency Meter is in good used condition, pulled from a working environment. The LED display illuminates and rear terminals are clean. Minor cosmetic wear typical of used panel instruments. |
