Description

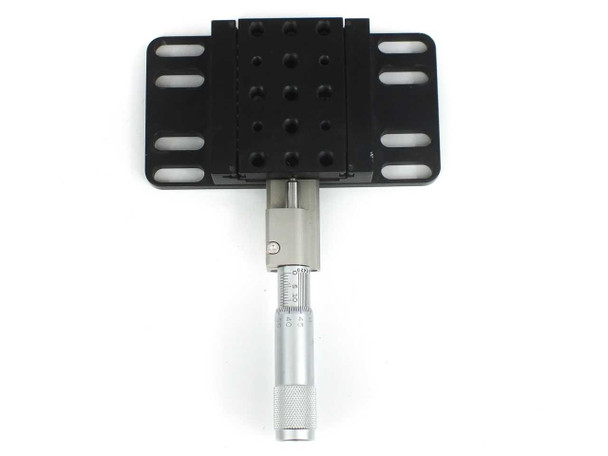

Newport 460P-X Ball Bearing Linear Stage SM-25 Vernier Micrometer 25mm Travel
Modular ball bearing linear stage with manual SM-25 vernier micrometer actuator. Provides precise single-axis positioning with 25mm travel range and 1µm resolution.
Specifications & What's Included
- Travel range: 25mm
- Resolution: 1µm (vernier), 10µm direct reading
- Micrometer pitch: 0.5mm (50.8 TPI)
- Load capacity: 23 lb
- Top plate mounting: 1/4-20 and 8-32 tapped holes
- Compatible with Newport PEG modular mounting peg screws
- Stackable for XY or XYZ configurations
- Includes SM-25 vernier micrometer actuator
Applications
The Newport 460P modular stage series is widely used in optical alignment, photonics labs, and precision positioning tasks. Single-axis stages stack to form multi-axis systems for microscopy, spectroscopy, and optical bench work. Compatible with Newport optical mounting systems and standard benchtop optical platforms.
Condition: Used
This Newport 460P-X Ball Bearing Linear Stage with SM-25 Vernier Micrometer was pulled from a working laboratory environment and is in good used condition. The anodized aluminum stage body and base plate show light surface wear consistent with normal lab use. The SM-25 micrometer actuator is present and appears undamaged, with the barrel graduations clearly legible. The tapped top plate holes are clean and free of visible damage. Please view our photo set and contact us if you have any questions.
This Newport 460P-X Ball Bearing Linear Stage with SM-25 Vernier Micrometer was pulled from a working laboratory environment and is in good used condition. The anodized aluminum stage body and base plate show light surface wear consistent with normal lab use. The SM-25 micrometer actuator is present and appears undamaged, with the barrel graduations clearly legible. The tapped top plate holes are clean and free of visible damage. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Newport |
Model: |
460P-X |
MPN: |
460P-X |
Secondary Model: |
SM-25 |
Type: |
Modular Ball Bearing Linear Stage |
SKU: |
52279 |
Travel Range: |
25 mm |
Drive / Actuator: |
SM-25 Vernier Micrometer |
Micrometer Pitch: |
0.5 mm (50.8 TPI) |
Resolution: |
1 µm (vernier), 10 µm direct reading |
Load Capacity: |
23 lb |
Top Plate Mounting Holes: |
1/4-20 and 8-32 tapped |
Compatible Mounting: |
Newport PEG modular mounting peg screws |
Stage Series: |
Newport 460P Modular Linear Stage Series |
Axis: |
Single Axis (X); stackable for XY or XYZ |
Application: |
Optical positioning, photonics, lab alignment |
Form Factor: |
Benchtop / Modular |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes Newport SM-25 vernier micrometer actuator |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Newport 460P-X ball bearing linear stage with SM-25 micrometer pulled from a working lab. Good used condition with light surface wear. Top plate tapped holes and micrometer barrel are clean and undamaged. |
