Description
Neutrik NC3MAH Male XLR Receptacle 3-Pole PCB Mount Plastic Housing Qty 100
This is a box of 100 Neutrik NC3MAH 3-pole male XLR receptacles, designed for PCB through-hole mounting. The NC3MAH is one of Neutrik's compact, high-density XLR receptacle designs — featuring hard gold-plated contacts and a black thermoplastic housing rated UL94V-0 for flame resistance. These are the mating chassis-side connectors for panel or PCB installation in audio equipment, stage gear, and rack units.
Specifications & What's Included
- Manufacturer: Neutrik (Made in Switzerland)
- Part Number: NC3MAH
- Connector Type: Male XLR Receptacle
- Number of Poles: 3
- Mount Type: PCB through-hole mount
- Housing Material: Thermoplastic, black
- Housing Flammability Rating: UL94V-0
- Contact Plating: Hard gold-plated

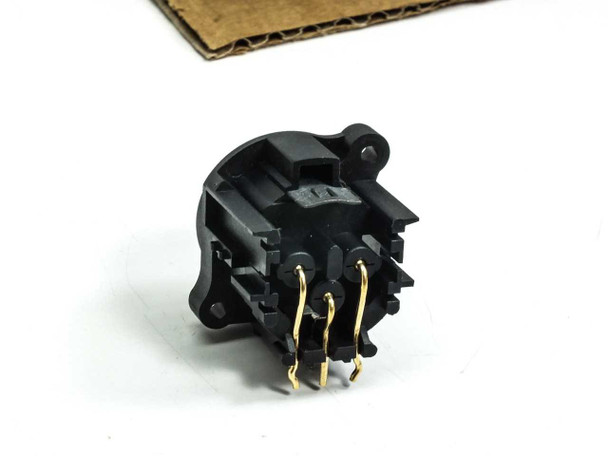

- Contact Style: Polished, gold-plated pins (3x through-hole solder terminals)
- Design: Compact footprint — smallest XLR receptacle in Neutrik's lineup, suited for high-packing-density PCB layouts
- Quantity: Box of 100 connectors
Applications
The Neutrik NC3MAH is a PCB-mount male XLR receptacle used in professional audio equipment manufacturing and repair. XLR connectors are the standard balanced audio interface in professional sound reinforcement, broadcast, recording studio gear, and stage equipment — used for microphone inputs, line-level balanced connections, and DMX lighting control. The NC3MAH's compact form factor and high packing density make it well suited for equipment panels and PCBs where space is limited, such as mixing consoles, audio interfaces, patchbays, stage boxes, and rack-mount processors. The UL94V-0 flame-rated housing meets safety requirements for commercial and professional audio equipment design. Neutrik has been the dominant supplier of XLR connectors since the 1970s, and the NC3MAH series remains a common choice for OEM audio equipment builders and repair technicians worldwide.

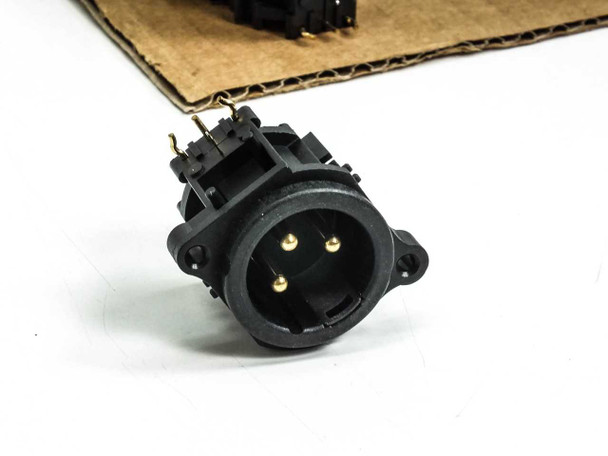

This Neutrik NC3MAH Male XLR Receptacle lot consists of 100 connectors pulled from original manufacturer stock. The connectors appear to be in good condition with no signs of significant wear, corrosion, or damage. The gold-plated contact pins look clean and intact across the units visible in the photos. The original Neutrik box shows normal shelf and storage wear. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Neutrik |
Model: |
NC3MAH |
MPN: |
NC3MAH |
Type: |
Male XLR Receptacle / PCB Mount Connector |
SKU: |
46594 |
Number of Poles: |
3 |
Gender: |
Male |
Mount Type: |
PCB Mount (Through-Hole) |
Housing Material: |
Plastic |
Contact Plating: |
Hard Gold |
Flammability Rating: |
UL94V-0 |
Connector Type: |
XLR |
Quantity: |
100 |
Country/Region of Manufacture: |
Switzerland |
Seller Notes: |
Box of 100 NC3MAH receptacles. Connectors only — no additional hardware or accessories included. |
Condition Notes: |
This Neutrik NC3MAH male XLR receptacle lot of 100 is in good condition. Connectors show no significant wear; gold-plated pins appear clean and intact. Original box shows normal shelf wear. |
