Netstal TAC TEX 110.240.6185 Control Board Diskjet 600 Steag Firstlight Unijet
This is an OEM Netstal TAC TEX control board, part number 110.240.6185 (revision a), board position P8. It was removed from a Steag Firstlight Unijet 60144 CD replication system operating in conjunction with a Netstal Diskjet 600 injection molder. The board is a multi-connector PCB module that formed part of the machine control architecture in that integrated disc manufacturing line.
Specifications & What's Included
- Manufacturer: Netstal
- Board name / designation: TAC TEX
- Part number: 110.240.6185
- Alternate / related part number: 110.240.6186c
- Board revision: a (Rev A)

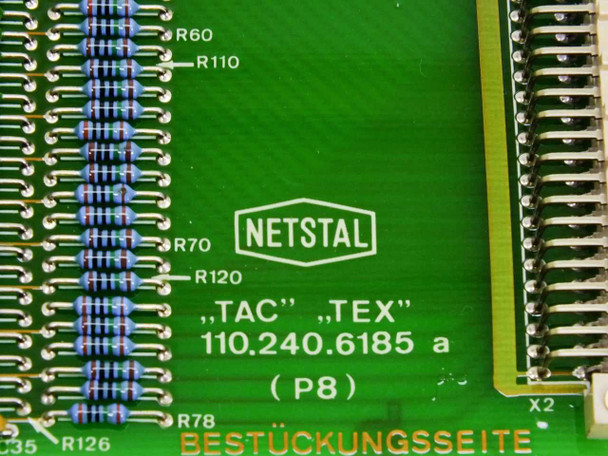

- Board position ID: P8 (silkscreened on PCB)
- Form factor: PCB card / plug-in module

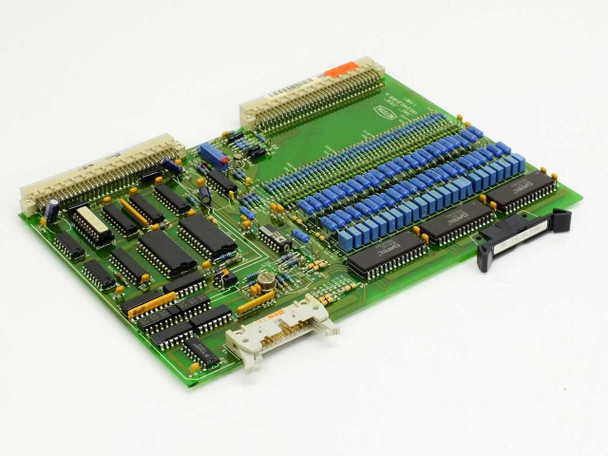

- Multiple dual-in-line (DIP) IC package components
- Large blue trimmer/resistor network array (visible on top side)
- Multiple card-edge and board-to-board connectors (both ends)

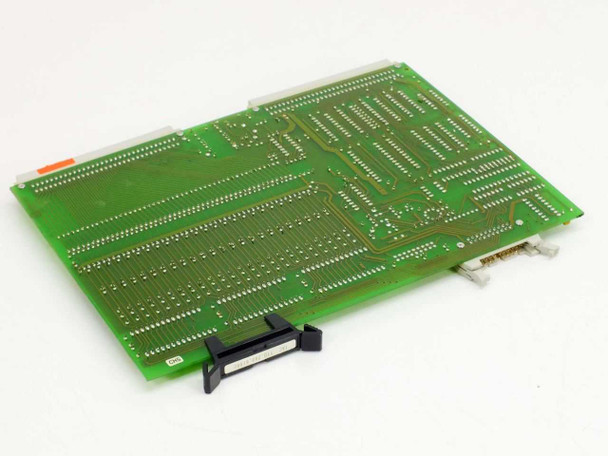

- Solder side marked: BESTÜCKUNGSSEITE (German for component side, confirming Swiss/European OEM manufacture)
- Sourced from: Steag Firstlight Unijet 60144 CD Replication System with Netstal Diskjet 600 Injection Molder
- Board only — no enclosure, cables, or additional hardware included
Applications
The Netstal Diskjet 600 was a high-throughput CD manufacturing system integrating an injection molder with downstream disc handling and replication automation. Netstal, a Swiss manufacturer historically known for precision injection molding machines, developed the Diskjet platform specifically for optical disc production — combining the injection molding of polycarbonate disc substrates with handling, coating, and process control in a single integrated line. The Steag Firstlight Unijet 60144 served as the broader CD replication system in which this Diskjet 600 module operated. TAC TEX control boards like this one handled machine logic and I/O control functions within the system. This board is relevant to facilities maintaining, repairing, or parting out Netstal Diskjet 600 or compatible Steag Firstlight CD replication equipment. Given the specialized and increasingly scarce nature of OEM Netstal control boards for this platform, this part is primarily of interest to service engineers and equipment resellers working with legacy optical disc manufacturing lines.
This Netstal TAC TEX 110.240.6185 control board was removed from a Steag Firstlight Unijet 60144 CD replication system that was in working operation. The board shows normal handling wear consistent with production use. The PCB, traces, component array, and edge connectors all appear clean and intact in the photos, with no visible damage, burnt components, or broken connectors noted. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Netstal |
Model: |
110.240.6185 |
MPN: |
110.240.6185 |
Secondary Model: |
110.240.6186c |
Type: |
Control Board / PCB Module |
Board Designation: |
TAC TEX |
Board Revision: |
a (Rev A) |
Board ID: |
P8 |
Compatible With: |
Steag Firstlight Unijet 60144 CD Replication System |
Compatible With 2: |
Netstal Diskjet 600 Injection Molder |
Application: |
CD Replication / Optical Disc Manufacturing |
Form Factor: |
PCB Card / Module |
Seller Notes: |
Board only; removed from Steag Firstlight Unijet 60144 w/ Netstal Diskjet 600 |
Country/Region of Manufacture: |
Switzerland |
SKU: |
45988 |
Condition: |
Used – Pulled from Working Environment |
Condition Notes: |
Netstal TAC TEX 110.240.6185 control board removed from a working Steag Firstlight Unijet 60144 CD replication system. Board appears clean and intact with normal production wear. Sold as used. |
