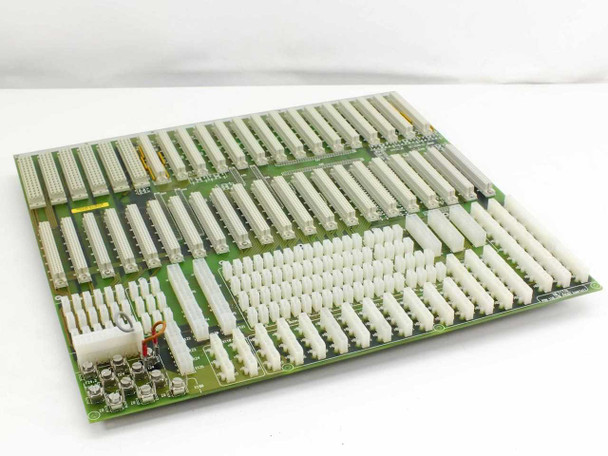

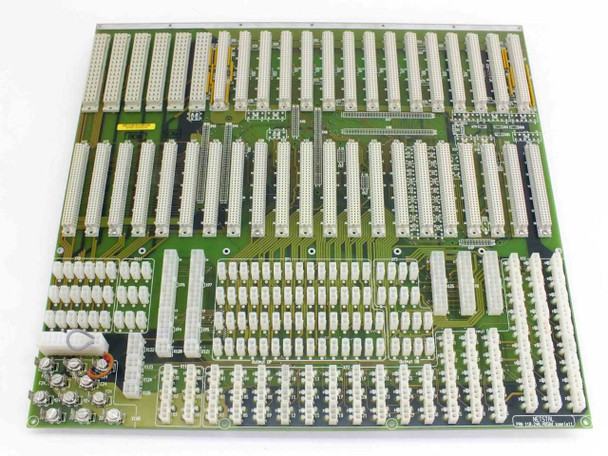

This is the Netstal PAN 110.240.9850D Komplett I/O backplane system board, a large multi-layer PCB designed for use in Netstal injection molding machine control systems. The board serves as the central interconnect backplane, routing I/O signals between the machine's control modules via a high-density array of multi-pin connectors. The silkscreen on the board clearly reads "NETSTAL PAN 110.240.9850d komplett," confirming its part identity. It was pulled from a working environment where it was in active service.

Specifications & What's Included

• Manufacturer: Netstal (Switzerland)
• Part Number: 110.240.9850D (marked on board as "PAN 110.240.9850d komplett")
• Type: I/O Backplane / System Board
• Form Factor: Large PCB card (full backplane assembly)
• Connector Type: Multiple multi-pin white header connectors arranged in numbered rows (connectors labeled through at least position 72+ per silkscreen)
• Additional connectors: Multiple card-edge style connectors on reverse side for sub-board or module mating
• Construction: Through-hole and mixed-technology PCB; green solder mask, gold-plated contact areas visible on edge connectors
• Board only — no mounting hardware, cables, or sub-modules included

Applications

Netstal is a Swiss manufacturer of high-precision injection molding machines, producing equipment for the plastics processing industry since the 1940s. The PAN 110.240.9850D is an I/O backplane used within the machine's central control cabinet to interconnect the various I/O modules, drive controllers, and process monitoring cards that manage the molding cycle — including clamp, injection, ejection, and temperature control functions. Backplane boards of this type act as the passive signal distribution backbone of the control system: individual function cards plug into the backplane's connectors, and the backplane routes power and communication signals between them without active logic of its own. This makes it a critical replacement part for facilities running Netstal machines that have experienced a backplane failure or connector damage. Buyers are typically maintenance engineers or machine rebuilders servicing existing Netstal equipment where OEM replacement parts are otherwise difficult to source.
