Description
Netstal CUC 110.240.9468 Komplett System Control Board Injection Molder PCB

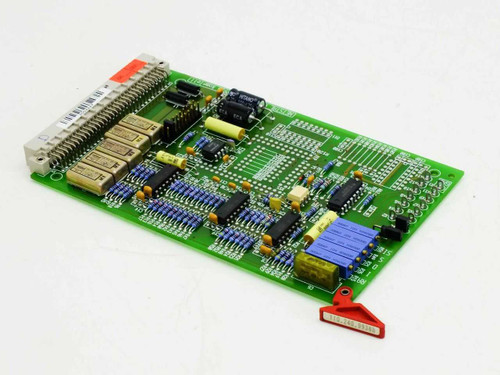

This is a Netstal CUC 110.240.9468 Komplett system control board, a printed circuit board (PCB) designed for use in Netstal injection molding machines. The board carries the part number 110.240.9468a as printed on its red label tab. It is a multi-function control/system card populated with multiple large surface-mount and through-hole ICs, DIP memory/logic chips, passive components, and edge connectors, and mounts into the Netstal machine's card cage via dual parallel edge connectors. Two DB9 serial connectors are present on the board edge for machine communication.
Specifications & What's Included
- Manufacturer: Netstal
- Part Number: 110.240.9468 / 110.240.9468a (as labeled on board tab)
- Board Type: Komplett (complete) system control card / PCB
- Form Factor: Card/module — mounts via dual parallel card-edge connectors
- External Connectors: Two DB9 (9-pin D-sub) serial ports on board edge
- Additional Connectors: Ribbon cable headers; internal board-to-board edge connectors
- Populated with multiple large QFP/PLCC ICs, DIP logic/memory chips, and passive components
- Country of Manufacture: Switzerland (Netstal is a Swiss manufacturer)
- Includes: Board only — no cables or accessories
Applications
Netstal is a Swiss manufacturer of high-precision injection molding machines, primarily serving the packaging, medical, and optical industries. The CUC designation refers to the machine's control unit card series, and the Komplett (German for "complete") designation indicates this is a fully populated system board rather than a sub-assembly. These control boards serve as the central processing and I/O coordination layer within the Netstal machine's electrical cabinet, managing machine sequencing, axis control, operator interface communication, and process monitoring. Netstal machines from this era — identifiable by this card style, through-hole and early SMD component mix, and DB9 serial communication ports — date from the 1990s through the early 2000s. Replacement and spare control boards for Netstal injection molders are difficult to source new and are actively sought by maintenance engineers and machine rebuilders keeping older Netstal equipment in service.
This Netstal CUC 110.240.9468 Komplett system control board has been inspected and is in good condition. It was pulled from a working injection molder where it was in active use and functional. The board shows normal wear consistent with industrial service — the PCB and components are clean with no signs of burning, corrosion, or obvious physical damage visible in the photos. The red label tab on the board edge clearly reads 110.240.9468a. Two DB9 serial connectors are present on the board. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Netstal |
Model: |
CUC 110.240.9468 |
MPN: |
110.240.9468a |
Type: |
Komplett System Control Board / PCB |
SKU: |
45985 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Board only; pulled from a working Netstal injection molder |
Compatible With: |
Netstal injection molding machines (CUC series) |
Form Factor: |
Card / Module (PCB) |
Application: |
Injection Molder Machine Control |
Connector Types: |
DB9 serial ports (x2), edge connectors, ribbon cable headers |
Country/Region of Manufacture: |
Switzerland |
Condition Notes: |
Netstal CUC 110.240.9468 Komplett system board. Inspected and in good condition; pulled from a working injection molder where it was in active use and functional. Board is clean with no visible damage. |
