Neotech PM101 Single Bidirectional Parallel Adapter ISA Card Rev 1.1 1993

(No reviews yet) Write a Review
SKU:
41105
MPN:
PM101
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

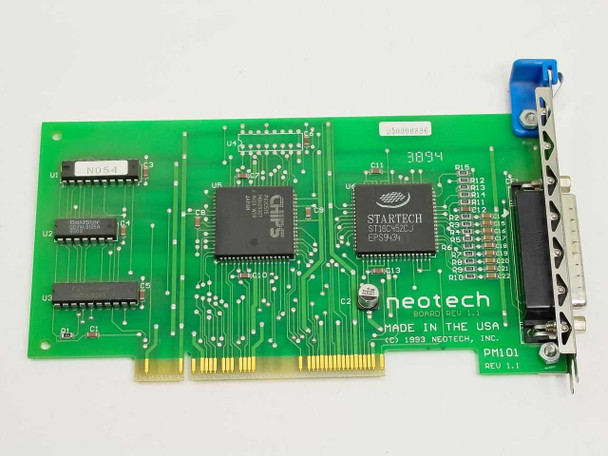

  • Neotech PM101 Rev 1.1 ISA Parallel Adapter Card — front component side showing CHIPS QFP controller, StarTech ST16C450J IC, and DB25 bracket port

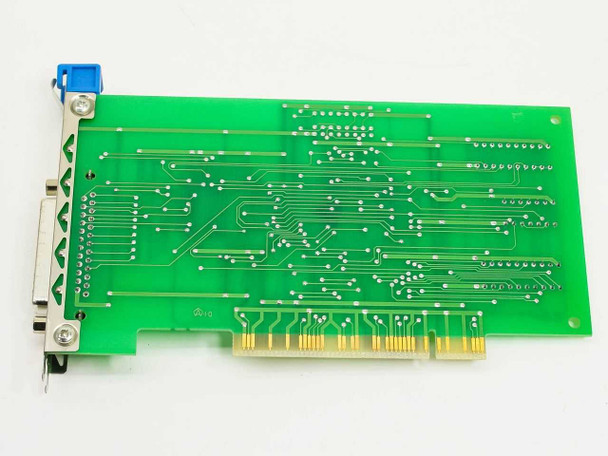

  • Neotech PM101 Rev 1.1 ISA Parallel Adapter Card — solder side showing PCB traces, ISA edge connector, and DB25 bracket
  • Neotech PM101 Rev 1.1 PCB close-up — silkscreen showing 'MADE IN THE USA', '© 1993 NEOTECH, INC.', model PM101, and Board Rev 1.1 designation
  • Neotech PM101 Rev 1.1 ISA Parallel Adapter Card — angled front view highlighting CHIPS and StarTech controller ICs and DB25 parallel port on bracket
$18.00
Was: $40.00
Current Stock: 1

Sold Out

Description

Neotech PM101 Single Bidirectional Parallel Adapter ISA Card Rev 1.1 1993

ISA expansion card providing a single bidirectional parallel port (DB25) for legacy ISA-bus computers. Enables connection of parallel peripherals such as printers, scanners, and external drives to systems lacking native parallel connectivity.

Specifications & What's Included

  • Model: PM101 Rev 1.1
  • Bus Interface: ISA
  • Port Type: Parallel (DB25), Bidirectional
  • Controller Chips: CHIPS (main), StarTech ST16C450J (secondary)
  • Form Factor: Half-Length ISA Card
  • Manufactured: United States, 1993

Applications

Used in DOS and Windows-era ISA-bus computers to add or expand parallel port capability. Supports legacy peripherals including parallel printers, external storage devices, and industrial equipment. Commonly deployed in 1990s-era workstations and industrial control systems requiring parallel communication.

Condition: Used
This Neotech PM101 Single Bidirectional Parallel Adapter ISA Card (Rev 1.1) has been inspected and is in good condition. The PCB is clean with no visible damage, cracked traces, or burnt components. The DB25 bracket port and ISA edge connector both appear undamaged. Normal light handling marks are present consistent with previous installation. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Neotech
Model:
PM101
MPN:
PM101
Type:
Bidirectional Parallel Adapter ISA Expansion Card
SKU:
41105
Hardware Revision:
Rev 1.1
Bus Interface:
ISA
Port Type:
Parallel (DB25)
Number of Ports:
1
Port Direction:
Bidirectional
Main Controller Chip:
CHIPS (large QFP IC)
Secondary Controller Chip:
StarTech ST16C450J
Country/Region of Manufacture:
United States
Year of Manufacture:
1993
Form Factor:
ISA Card / Half-Length
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Board only. Inspected and in good condition.
Compatible With:
ISA-bus PCs, DOS/Windows legacy parallel peripherals
Condition Notes:
Neotech PM101 Bidirectional Parallel ISA Adapter Card Rev 1.1. Inspected and in good condition. PCB is clean, no visible damage, DB25 port and ISA edge connector intact.
