Description
Nemic-Lambda EWS15-5 Power Supply 5VDC 3A 85-250VAC DIN Rail Mount 15W
The Nemic-Lambda EWS15-5 is a compact 15-watt DIN rail switching power supply delivering a regulated 5 VDC output at up to 3.0 A. It accepts a wide-range AC input (85–250 VAC) as well as a DC input (110–330 VDC), making it suitable for both standard and variable mains environments. A front-panel trimmer allows fine output voltage adjustment of ±10%.
Specifications & What's Included
- Model: EWS15-5
- Manufacturer: Nemic-Lambda (Made in Malaysia)
- Output Voltage: 5 VDC
- Output Current: 3.0 A
- Output Power: 15 W
- Input Voltage (AC): 85–250 VAC
- Input Voltage (DC): 110–330 VDC
- Input Frequency: 47–63 Hz
- Input Current: 0.5 A
- Voltage Adjustment: ±10% via front-panel V.ADJ trimmer
- Output connection: screw terminal block (+V, -V, G, ACG)
- Input connection: screw terminal block (L, N, G)
- Power indicator: green POWER ON LED
- Mounting: DIN rail

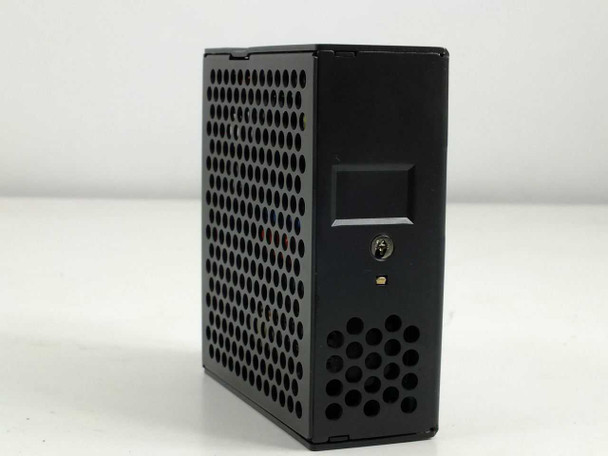

- Enclosure: black metal with perforated ventilation panels
- Includes: power supply unit only — no cables or accessories
Applications
The EWS15-5 belongs to Nemic-Lambda's EWS series of compact enclosed switching power supplies, designed for DIN rail installation in industrial control panels, automation equipment, and instrumentation enclosures. Units like this are commonly used to power logic circuits, PLCs, sensors, relay coils, and other 5 VDC loads in factory automation, machine control, and process instrumentation systems. The wide input voltage range (85–250 VAC) makes the EWS15-5 compatible with both North American and international mains supplies without modification. Nemic-Lambda, now part of TDK-Lambda, has been a major supplier of switching power supplies to the industrial and electronics manufacturing sectors since the 1970s; the EWS series represents their DIN-rail-optimized line aimed at panel builders and OEM equipment manufacturers.
This Nemic-Lambda EWS15-5 DIN Rail Switching Power Supply has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in service. The housing is intact with no visible damage; the terminal blocks and POWER ON LED are present and undamaged. Normal light surface wear is present consistent with prior industrial use. Please review our photos and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Nemic-Lambda |
Model: |
EWS15-5 |
MPN: |
EWS15-5 |
SKU: |
45478 |
Type: |
DIN Rail Switching Power Supply |
Output Voltage: |
5 VDC |
Output Current: |
3.0 A |
Output Power: |
15 W |
Input Voltage (AC): |
85-250 VAC |
Input Voltage (DC): |
110-330 VDC |
Input Frequency: |
47-63 Hz |
Input Current: |
0.5 A |
Voltage Adjustment: |
±10% via V.ADJ trimmer |
Mounting: |
DIN Rail |
Number of Outputs: |
1 |
Output Connector: |
Screw terminal block |
Input Connector: |
Screw terminal block (L, N, G) |
Indicator: |
Green POWER ON LED |
Country/Region of Manufacture: |
Malaysia |
Form Factor: |
DIN Rail Module |
Seller Notes: |
Power supply only — no cables or accessories included. |
Condition Notes: |
This Nemic-Lambda EWS15-5 5VDC 3A DIN rail power supply has been inspected and is in good used condition. Pulled from a working environment. Terminal blocks and housing are intact with typical light wear. |
