Nelson

Nelson TA119-012 GZ Thermal Switch 120/208/240/277V SPDT Bulb & Capillary Type

(No reviews yet) Write a Review
SKU:
33822
MPN:
TA119-012 GZ
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

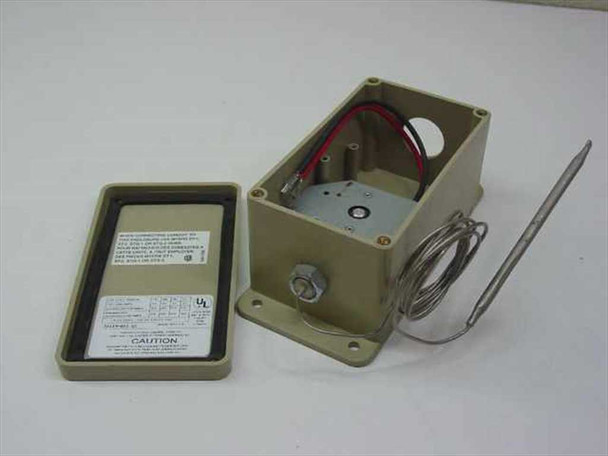

  • Nelson TA119-012 GZ thermal switch — front view with enclosure lid removed showing internal switch mechanism and wiring leads, bulb and capillary probe extending to the right
  • Nelson TA119-012 GZ thermal switch — right-side view of closed beige non-metallic Type 4X enclosure with capillary probe coiled on top
  • Nelson TA119-012 GZ thermal switch — top-down interior view showing SPDT switch mechanism mounted to metal bracket inside enclosure with red and black wiring
  • Nelson TA119-012 GZ thermal switch — close-up of bulb and capillary probe assembly with coiled capillary tube and sensing bulb tip

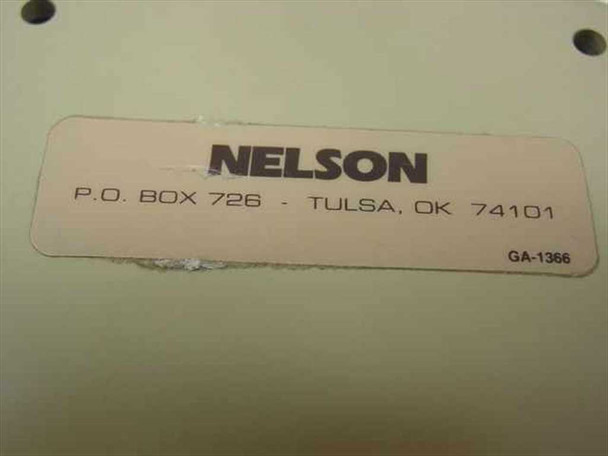

  • Nelson TA119-012 GZ thermal switch — bottom label showing Nelson brand name and Tulsa, OK address with code GA-1366

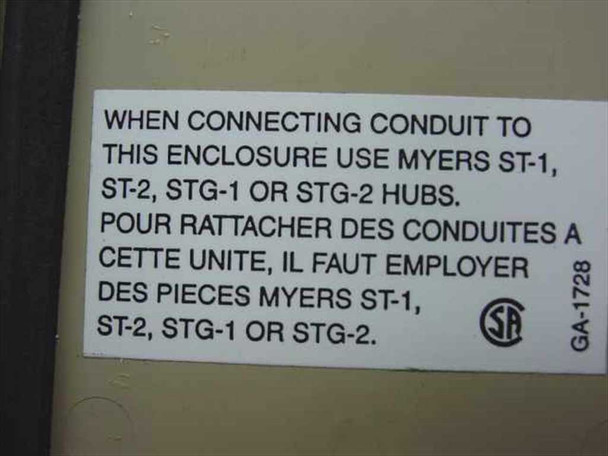

  • Nelson TA119-012 GZ thermal switch — conduit label showing Myers ST-1 ST-2 STG-1 STG-2 hub requirement in English and French with CSA mark
  • Nelson TA119-012 GZ thermal switch — rating plate showing voltage/amperage chart (120/208/240/277V), UL listing E50023, Type 4X raintight enclosure designation, and model number
$60.00
Was: $125.00
Current Stock: 1

Sold Out

Description

Nelson TA119-012 GZ Thermal Switch 120/208/240/277V SPDT Bulb & Capillary Type 4X

Bulb and capillary thermal switch rated for 120/208/240/277V AC operation. SPDT switching action with Type 4X raintight non-metallic enclosure. Designed for monitoring and controlling equipment based on temperature changes.

Specifications & What's Included

  • Voltage Rating: 120/208/240/277V AC, 50/60 Hz
  • Full Load Amps: 4.4A (120V), 4.0A (208V), 3.6A (240V), 3.0A (277V)
  • Switch Action: SPDT (Single Pole Double Throw)
  • Sensing Element: Bulb and capillary probe assembly
  • Enclosure: Type 4X raintight non-metallic
  • UL Listed and CSA certified
  • Includes complete enclosure with internal switch mechanism and probe assembly

Applications

Thermal switches of this type are used in industrial and telecom equipment for temperature monitoring and protection. The bulb and capillary design detects temperature changes in remote locations and triggers electrical contacts accordingly. Commonly applied in HVAC systems, motor protection circuits, and process control applications requiring non-contact temperature sensing.

Condition: Used
This Nelson TA119-012 GZ thermal switch has been inspected and is in good used condition. The non-metallic Type 4X enclosure is intact with no cracks or significant damage. The bulb and capillary probe assembly is present and intact. Internal wiring is visible and appears undisturbed. Some light scuffing and shelf wear are present on the exterior. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Nelson
Model:
TA119-012 GZ
MPN:
TA119-012 GZ
Type:
Bulb & Capillary Thermal Switch
SKU:
33822
Voltage Rating:
120 / 208 / 240 / 277V AC, 50/60 Hz
Full Load Amps (120V):
4.4A
Full Load Amps (208V):
4.0A
Full Load Amps (240V):
3.6A
Full Load Amps (277V):
3.0A
Locked Rotor Amps (120V):
26.4A
Non-Inductive / Resistive Load Amps:
22.0A (120/208/240V); 18.0A (277V)
Pilot Duty Rating:
125 VA at 120/277 VAC
Switch Action:
SPDT
Sensing Element:
Bulb and Capillary
Enclosure Type:
Type 4X Raintight Non-Metallic
Enclosure Material:
Non-Metallic
Conduit Hub Compatibility:
Myers ST-1, ST-2, STG-1, STG-2
Certifications:
UL Listed (IND. & REG. EQUIP. 559L E50023); CSA
Country/Region of Manufacture:
United States
UL File Number:
E50023
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes enclosure with internal switch mechanism and bulb/capillary probe assembly.
Form Factor:
Surface / Panel Mount Enclosure
Label Code:
GA-1366
Condition Notes:
Nelson TA119-012 GZ thermal switch inspected and in good used condition. Enclosure intact, bulb and capillary probe assembly present. Light shelf wear on exterior. Please contact us with any questions.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
