NEC Versa LXi VM4FBEA Laptop Pentium 75MHz Parts Repair No HDD RAM Battery

NEC Versa LXi VM4FBEA Laptop Pentium 75MHz Parts Repair No HDD RAM Battery

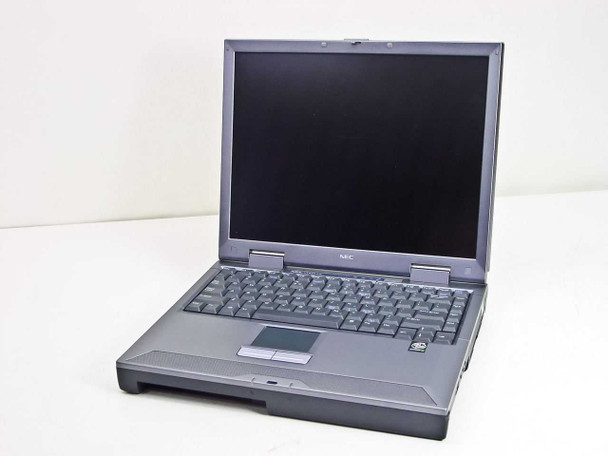

The NEC Versa LXi (model VM4FBEA) is a mid-1990s Pentium 75 MHz notebook from NEC Computers' Versa line of portable computers. This unit powers on but is being sold as-is for parts or repair — the hard drive, RAM, CD-ROM drive, and battery are all absent, so the machine cannot load an operating system or be fully tested. The chassis, display, keyboard, and port panel are intact and the unit is a solid candidate for parts harvesting or restoration with the appropriate components.

Specifications & What's Included

• Manufacturer: NEC Computers Inc.
• Model: Versa LXi

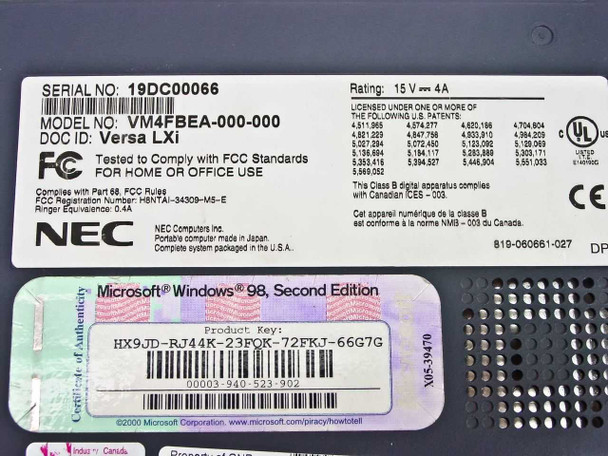

• Part Number: VM4FBEA-000-000
• Processor: Intel Pentium 75 MHz
• RAM: None installed (SO-DIMM slots present and empty)
• Hard Drive: None installed (bay empty, ribbon cable present)
• Optical Drive: None installed (CD-ROM bay empty)
• Battery: Not present
• Power Input: 15V DC, 4A
• Display: Built-in LCD (hinge and panel intact)
• Keyboard: Full-size integrated keyboard
• Pointing Device: Touchpad with two mouse buttons
• Rear Ports: DB9 serial, DB25 parallel, DB15 VGA, PS/2, power jack
• Left Side: Headphone jack, microphone jack, PC Card slot, floppy drive bay
• Right Side: CD-ROM/optical bay (empty), ventilation grille
• Operating System: None installed; Windows 98 Second Edition COA sticker affixed to chassis bottom
• Manufactured in Japan; assembled in U.S.A.
• FCC ID: HBNTAI-34309-M5-E; CE marked
• What's included: Laptop body only — no hard drive, no RAM, no CD-ROM drive, no battery, no power adapter, no cables

Applications

The NEC Versa series was NEC's mainstream business notebook line throughout the mid-to-late 1990s, competing directly with Toshiba Satellite and IBM ThinkPad portables of the same era. The Versa LXi, built around the Intel Pentium 75 MHz processor, dates from approximately 1995–1996 — the generation when Pentium replaced the 486 as the entry-level laptop CPU and Windows 95/98 became standard. These laptops used standard SO-DIMM EDO RAM and 2.5-inch IDE hard drives, making component sourcing relatively straightforward. Today, units like this are sought by vintage computer collectors, hobbyists restoring 1990s notebooks, and technicians needing donor parts such as the LCD assembly, keyboard, chassis, or port hardware for another Versa LXi in need of repair.
