NEC

NEC 8RSTA DTMF Register Card NEAX 2000 IVS Integrated Voice Server PBX

(No reviews yet) Write a Review
SKU:
24265
MPN:
8RSTA
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout

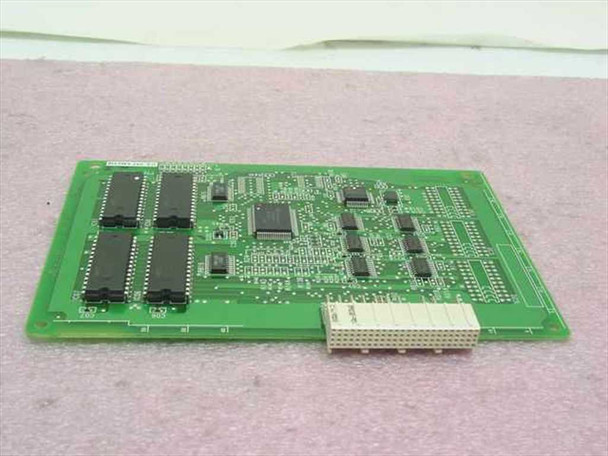

  • NEC 8RSTA DTMF Register Card – front component side showing ICs, memory chips, and edge connector
  • NEC 8RSTA DTMF Register Card – reverse side showing PN-8RSTA silkscreen label, U.S. PAT 4,942,516 sticker, and connector
  • NEC PN-8RSTA DTMF Register Card – close-up of part number label and U.S. PAT 4,942,516 sticker near memory chips and NEC marking
$20.00
Was: $40.00
Current Stock: 1

Sold Out

Description

NEC 8RSTA DTMF Register Card NEAX 2000 IVS Integrated Voice Server PBX

DTMF register card designed for the NEC NEAX 2000 Integrated Voice Server. This module processes dual-tone multi-frequency signals within the PBX system.

Specifications & What's Included

  • Brand: NEC
  • Model: 8RSTA
  • Type: DTMF Register Card
  • Compatible System: NEAX 2000 IVS
  • Manufactured in Japan
  • Card/Module form factor

Applications

DTMF register cards are used in telecom PBX systems to capture and process touch-tone input from connected devices and networks. The NEC NEAX 2000 IVS is a legacy integrated voice server platform commonly deployed in enterprise telecommunications environments. This card handles DTMF signal detection and registration for call routing, interactive voice response, and system control functions within NEAX 2000 installations.

Condition: Used
This NEC 8RSTA DTMF Register Card was pulled from a working NEAX 2000 Integrated Voice Server (IVS) system. The board has been inspected and appears to be in good condition. It has not been tested at our facility. The PCB is clean with no visible damage, broken traces, or missing components. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
NEC
Model:
8RSTA
MPN:
PN-8RSTA
Type:
DTMF Register Card
SKU:
24265
Compatible With:
NEC NEAX 2000 Integrated Voice Server (IVS)
Form Factor:
Card / Module
System:
NEAX 2000 IVS
Patent:
U.S. PAT 4,942,516
Seller Notes:
Card only; pulled from a NEAX 2000 IVS working system
Country/Region of Manufacture:
Japan
Condition:
Used – Inspected, not bench-tested
Condition Notes:
NEC 8RSTA DTMF Register Card pulled from a working NEAX 2000 IVS system. Inspected and in good condition; not bench-tested at our facility. No visible damage. Please contact us with questions.
View AllClose
