NCR 530-0009297-1 Mainframe Power Supply 120V 50/60Hz Rev C
Multi-rail linear/switching power supply designed for NCR mainframe and minicomputer systems. Supplies regulated +12V, +5.1V, +5VB, -12V, and -5V rails with integrated battery backup circuit and internal cooling fan.
Specifications & What's Included
- Input: 120V AC, 50/60Hz (multiple transformer strap configurations available: 90–107V, 104–127V, 114–136V, 198–235V, 207–240V, 216–250V)
- Output Rails: +12V, +5.1V, +5VB, -12V, -5V, GND A
- Battery Backup: Yes (F2/T1 BBU fuse circuit)
- Cooling: Nidec TA450DC 12VDC fan
- Form Factor: Internal chassis-mount with attached multi-connector output harness
- Revision: Rev C; Plant Code 44/007394

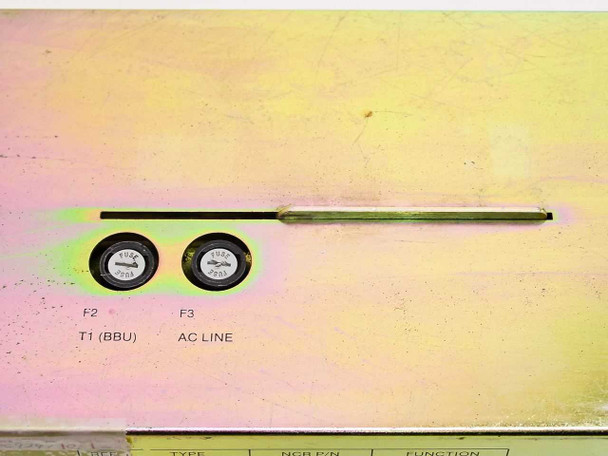

- Fuses: F1 (Battery) F3A/250V, F2 (BBU) T500µA or T250mA/250V, F3 (AC Line) F10A or F6A/250V, A1F1 (HV Bulk DC) F4A/250V
Applications
This supply was used in NCR System 3000, System 8000, and related vintage minicomputer platforms from the 1970s–1980s. It provided stable multi-rail DC power to processor cards, memory modules, and I/O subsystems in mission-critical business computing environments.
Condition: Used

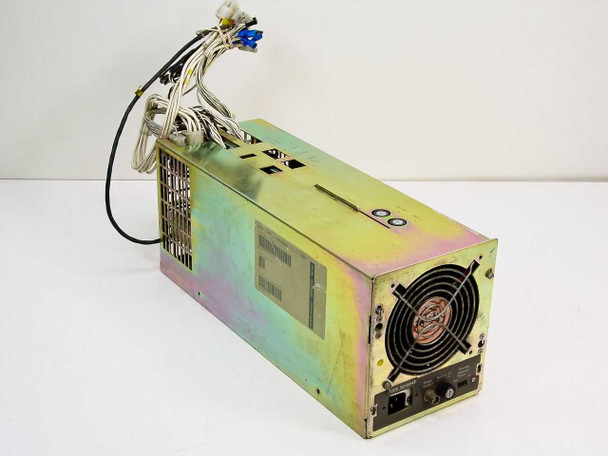

This NCR 530-0009297-1 mainframe power supply has been powered and tested at our facility and is in good working order. The zinc-plated steel chassis shows the iridescent patina and light surface wear typical of vintage industrial equipment of this era, consistent with prior deployment in a mainframe environment. The output wire harness with its multiple blade and ribbon connectors is intact and present. The rear-mounted Nidec cooling fan, AC input, and front-panel power control switches are all present. Fuse holders and voltage adjustment trim pots are intact as visible in the photos. Please view our photo set and contact us if you have any questions.
This NCR 530-0009297-1 mainframe power supply has been powered and tested at our facility and is in good working order. The zinc-plated steel chassis shows the iridescent patina and light surface wear typical of vintage industrial equipment of this era, consistent with prior deployment in a mainframe environment. The output wire harness with its multiple blade and ribbon connectors is intact and present. The rear-mounted Nidec cooling fan, AC input, and front-panel power control switches are all present. Fuse holders and voltage adjustment trim pots are intact as visible in the photos. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
NCR |
Model: |
530-0009297-1 |
MPN: |
530-0009297-1 |
SKU: |
38739 |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Includes attached multi-connector output wire harness |
Form Factor: |
Internal / Chassis-Mount |
Country of Manufacture: |
USA |
Power Requirements: |
120V AC, 50/60Hz |
Input Voltage Range: |
90-107V, 104-127V, 114-136V, 198-235V, 207-240V, 216-250V (transformer strapping) |
Revision Level: |
Rev C |
Plant Code / Tracer Number: |
44/007394 |
Output Rails: |
+12V, +5.1V, +5VB, -12V, -5V, GND A (see label for test point voltages) |
TP1 Voltage Range: |
+11.4V to +12.6V (Yellow) |
TP2 Voltage Range: |
+4.95V to +5.25V (Red) |
TP3 Voltage Range: |
+4.85V to +5.36V (Orange) |
TP4 Voltage Range: |
-12.6V to -11.4V (Blue) |
TP7 Voltage Range: |
-5.15V to -4.85V (Green) |
Fuse F1 (Battery): |
F3A/250V — NCR P/N 007-3040018 |
Fuse F2 (T1/BBU): |
T500uA/250V or T250mA/250V — NCR P/N 007-9812544 / 006-4310012 |
Fuse F3 (AC Line): |
F10A/250V or F6A/250V — NCR P/N 007-3040023 / 007-3040021 |
Fuse A1F1 (HV Bulk DC): |
F4A/250V — NCR P/N 007-3040032 |
Battery Backup Circuit: |
Yes — F2 fuse labeled T1 (BBU) |
Cooling: |
Internal fan — Nidec TA450DC, 12VDC |
Compatible With: |
NCR mainframe and minicomputer systems (vintage) |
Type: |
Multi-Rail Linear/Switching Mainframe Power Supply |
Application: |
Vintage NCR mainframe / minicomputer systems |
Condition Notes: |
This NCR 530-0009297-1 mainframe power supply has been tested and is in good working order. Chassis shows light surface wear and iridescent patina typical of vintage industrial equipment. Output wire harness and cooling fan are intact. |
