Description
NBase Communications NH 2012 Mega Switch II 8-Port 10/100 Ethernet Switch SNMP
Managed Fast Ethernet switch with 8 RJ-45 ports operating at 10/100 Mbps. Designed for small to mid-size network deployments requiring port-level management and SNMP monitoring.
Specifications & What's Included
- 8 RJ-45 ports (10Base-T / 100Base-TX) plus 2 High-Speed Network Interface expansion slots
- Managed via SNMP with Spanning Tree and RMON (Groups 1, 2, 3, 9)
- Configurable full/half duplex per port; selective flow control
- Forwarding rate: 810,000 pps
- Uplink options: 100Base-TX, 100Base-FX (110+ km singlemode), ATM, Gigabit, ISVLAN
- DB-9 serial console management port
- Power: 100–250V AC, 2A, 47–62Hz
- Unit only; expansion slots empty
Applications
Used historically in enterprise and telecom environments for LAN segmentation, access-layer switching, and managed network monitoring. Compatible with standard network management platforms supporting SNMP. Typically deployed in server rooms, branch offices, and campus networks where port-level visibility and redundancy features were required. The expansion slots accommodated upgrades to gigabit or fiber uplinks without replacing the entire unit.
Condition: Used

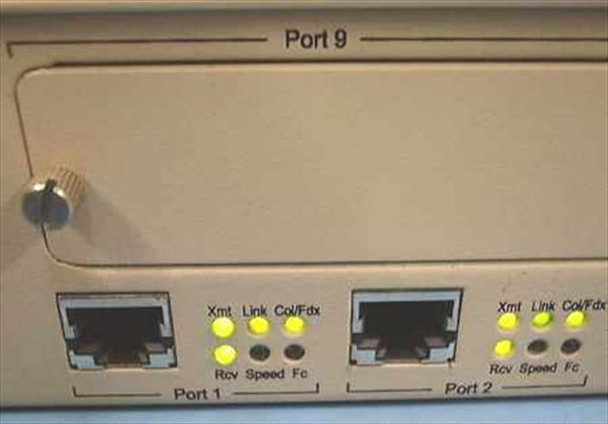

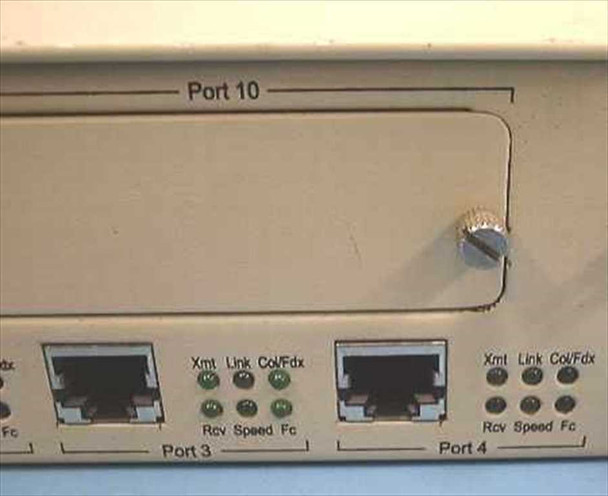

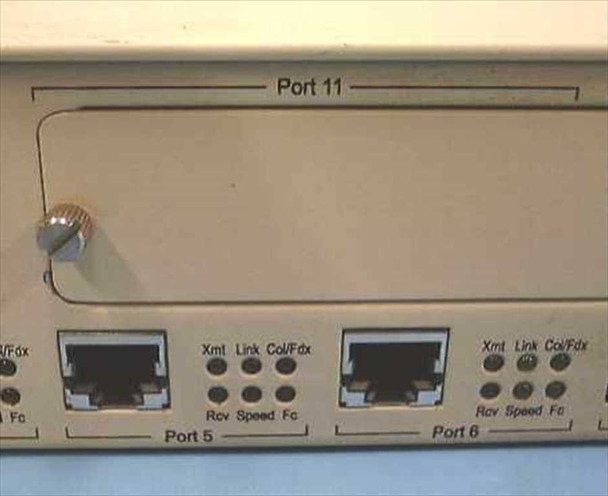

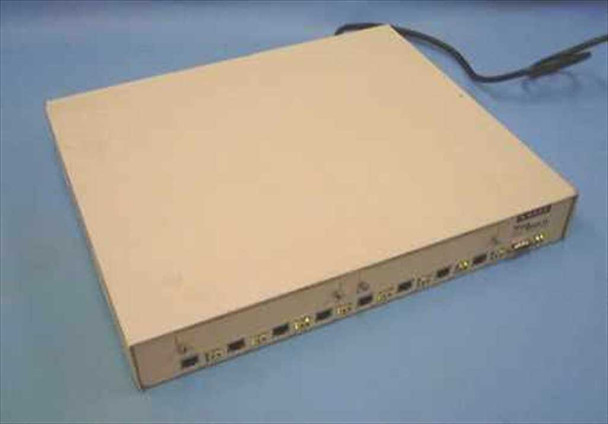

This NBase Communications NH 2012 Mega Switch II 10/100 Ethernet Switch has been inspected and appears to be in good condition. The chassis is clean with light surface wear consistent with normal office use. All eight front-panel RJ-45 ports and per-port LED indicators are present and intact, the DB-9 Console Management port is clean, and both expansion slots are empty with their captive screws in place. The unit powers on (LEDs visible in photos). Please view our photo set and contact us if you have any questions.
This NBase Communications NH 2012 Mega Switch II 10/100 Ethernet Switch has been inspected and appears to be in good condition. The chassis is clean with light surface wear consistent with normal office use. All eight front-panel RJ-45 ports and per-port LED indicators are present and intact, the DB-9 Console Management port is clean, and both expansion slots are empty with their captive screws in place. The unit powers on (LEDs visible in photos). Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
NBase Communications |
Model: |
NH 2012 |
MPN: |
NH2012-AT10 |
Type: |
Managed Fast Ethernet Switch |
SKU: |
12040 |
Number of Ports: |
8 RJ-45 + 2 expansion slots (Ports 9–12) |
Port Speed: |
10/100 Mbps (10Base-T / 100Base-TX) |
Expansion Slots: |
2 High-Speed Network Interface slots |
Uplink Options: |
100Base-TX, 100Base-FX, ATM, Gigabit, ISVLAN |
Management Type: |
Managed — SNMP, Spanning Tree, RMON |
RMON Groups: |
Groups 1, 2, 3, and 9 |
Duplex: |
Full and Half Duplex, configurable per port |
Flow Control: |
Selective Flow Control (half and full duplex) |
Forwarding Rate: |
810,000 pps |
Architecture: |
Direct transfer (source port to destination port) |
Max Transmission Distance: |
Over 110 km with singlemode 100Base-FX |
Console Interface: |
DB-9 serial (Console Mgmt port) |
Power Requirements: |
100-250V AC, 2A, 47-62Hz |
Form Factor: |
Desktop |
Condition: |
Used – Inspected |
Seller Notes: |
Unit only; no modules in expansion slots. |
Country/Region of Manufacture: |
Israel |
Condition Notes: |
NBase NH 2012 Mega Switch II 10/100 Ethernet Switch. Inspected, in good condition. Chassis clean with light wear. All 8 RJ-45 ports and console port intact. Both expansion slots empty. Powers on per photos. |
