Description
Narco Scientific OPG 200 Oculoplethysmograph 307 RH 90-120VAC w/ Printer & Manual
Benchtop oculoplethysmograph for measuring ophthalmic arterial blood flow and intraocular pressure. Operates in Eye-Eye, Eye-Ear, and Ear-Ear modes with adjustable gain settings and variable printer paper speeds.
Specifications & What's Included
- Model: OPG 200 (MPN 307 RH)
- Power: 90-120 VAC, 50/60 Hz; 1A AC / 3A DC fuses
- Vacuum applicator arm assembly
- Strip-chart printer with 25-pin DB25 input connector
- Printer speeds: 0.5, 1, 5, 10 cm/sec
- Gain settings: X1, X1/2
- Includes OPG-200 service manual
Applications
Oculoplethysmographs measure blood pressure in arteries supplying the eye and track intraocular pressure changes, historically used in ophthalmology and neuro-ophthalmology for vascular assessment and carotid artery evaluation. The OPG 200 was standard diagnostic equipment in clinical and research settings through the 1980s and 1990s.
Condition: Used
This Narco Scientific OPG 200 Oculoplethysmograph (Model 307 RH) has been inspected and appears to be in good used condition. It was pulled from a working environment where it was in active use and functional. The unit comes complete with the vacuum applicator arm assembly, the Narco Scientific strip-chart printer, and the original OPG-200 service manual binder. Cosmetically, the equipment shows the normal wear you'd expect from a vintage clinical instrument — light surface marks and age-appropriate discoloration on the housing — but no major damage is apparent. Please view our photo set and contact us if you have any questions.
This Narco Scientific OPG 200 Oculoplethysmograph (Model 307 RH) has been inspected and appears to be in good used condition. It was pulled from a working environment where it was in active use and functional. The unit comes complete with the vacuum applicator arm assembly, the Narco Scientific strip-chart printer, and the original OPG-200 service manual binder. Cosmetically, the equipment shows the normal wear you'd expect from a vintage clinical instrument — light surface marks and age-appropriate discoloration on the housing — but no major damage is apparent. Please view our photo set and contact us if you have any questions.
Medical Device Disclosure
Thanks for your interest. Recycled Goods Inc., Ventura, CA.
FDA Regulation and Certification: The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not purchase this item unless you are an authorized purchaser. If the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping.
Upon receipt, it is the BUYER'S responsibility to have this instrument checked and certified for use by a qualified Technician prior to placing it into use or service.
Thanks for your interest. Recycled Goods Inc., Ventura, CA.
FDA Regulation and Certification: The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not purchase this item unless you are an authorized purchaser. If the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping.
Upon receipt, it is the BUYER'S responsibility to have this instrument checked and certified for use by a qualified Technician prior to placing it into use or service.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Narco Scientific |
Model: |
OPG 200 |

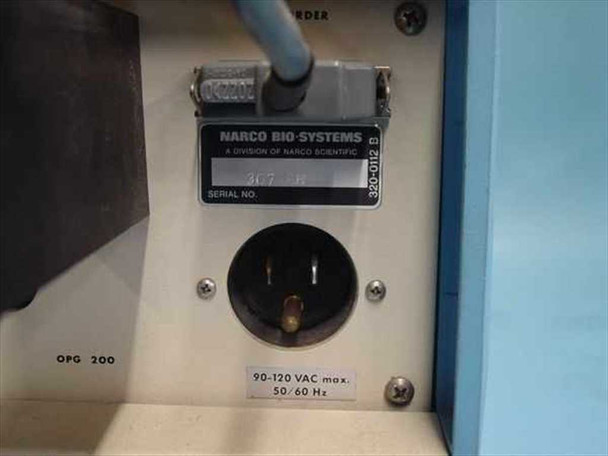

MPN: |
307 RH |
Secondary Model: |
320-0119 B |
Type: |
Oculoplethysmograph |
SKU: |
11630 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes vacuum applicator arm assembly, strip-chart printer, and OPG-200 service manual |
Country/Region of Manufacture: |
United States |
Form Factor: |
Benchtop |
Power Requirements: |
90-120 VAC, 50/60 Hz |
Fuse Rating: |
1A AC, 3A DC |
Application / Use Case: |
Ophthalmic arterial blood flow and intraocular pressure measurement |
Includes: |
Vacuum applicator arm, strip-chart printer, service manual |

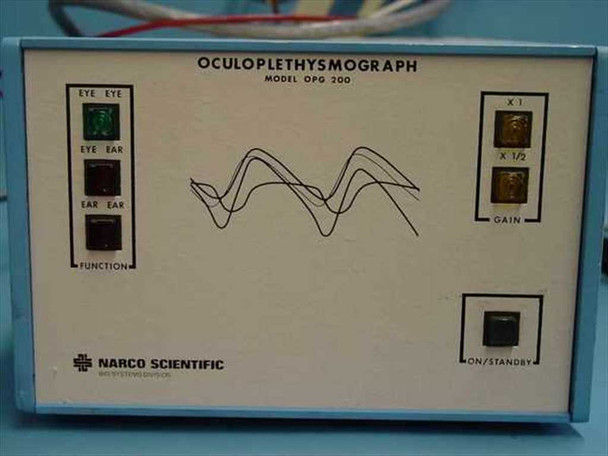

Function Modes: |
Eye-Eye, Eye-Ear, Ear-Ear |
Gain Settings: |
X1, X1/2 |
Printer Paper Speed: |
0.5, 1, 5, 10 cm/sec |
Printer Interface: |
25-pin parallel (DB25) input connector |

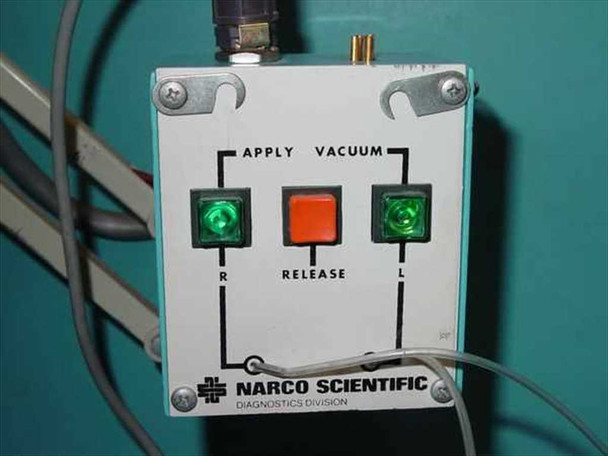

Vacuum Control: |
Apply / Release / R & L indicators on control panel |
Manufacturer Division: |
Narco Bio-Systems, a division of Narco Scientific |
Condition Notes: |
Narco Scientific OPG 200 Oculoplethysmograph (307 RH) inspected and in good used condition. Pulled from a working environment where it was in active use. Includes vacuum arm, strip-chart printer, and service manual. Normal cosmetic wear. |
