NAIS

NAIS FP2 FP2-BP14 AFP25014 14-Slot PLC Backplane PSA3 FP2-C2 PP42 X64D2 Y64T

(No reviews yet) Write a Review
SKU:
47360
MPN:
FP2-BP14
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
10.00 LBS
Shipping:
Calculated at Checkout

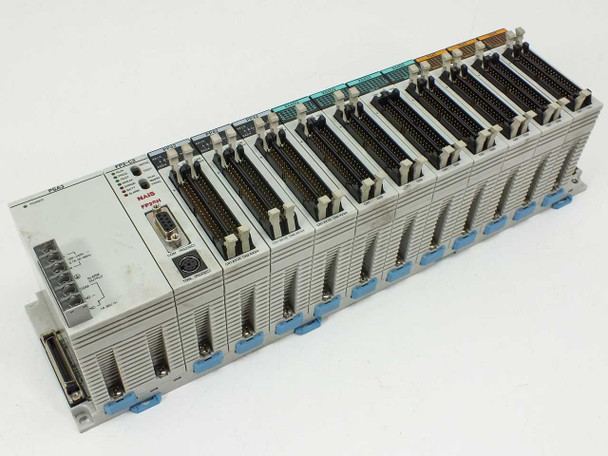

  • NAIS FP2-BP14 14-slot PLC backplane with all modules installed — front left angled view showing PSA3, FP2-C2, PP42, X64D2, and Y64T modules
  • NAIS FP2-BP14 backplane with large bundle of rainbow ribbon cables laid out in front — full system view

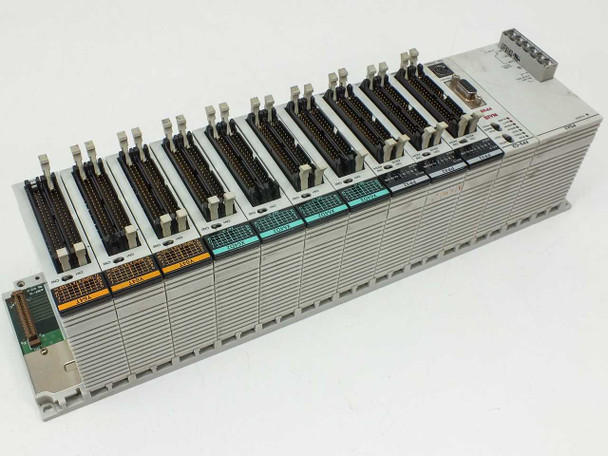

  • NAIS FP2 backplane rear three-quarter view showing module tops and connector rows, all slots populated
  • NAIS FP2-BP14 label closeup: AFP25014, FP2-BP14, 14 Module Type, UL Listed, CE mark, Matsushita Electric Works Made in Japan

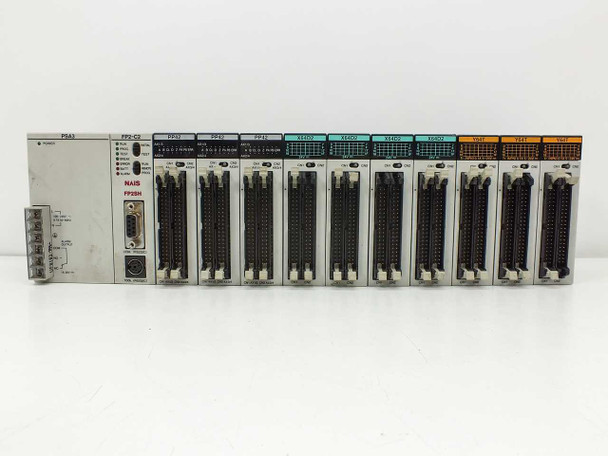

  • NAIS FP2-BP14 backplane front view showing full module lineup from PSA3 power unit through Y64T output modules

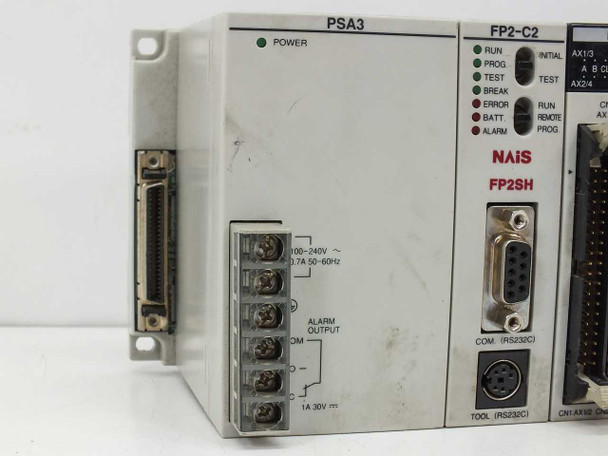

  • NAIS PSA3 power unit and FP2-C2 CPU (FP2SH) closeup — showing POWER LED, 100-240V AC rating label, alarm output terminals, and RS-232C TOOL and COM ports

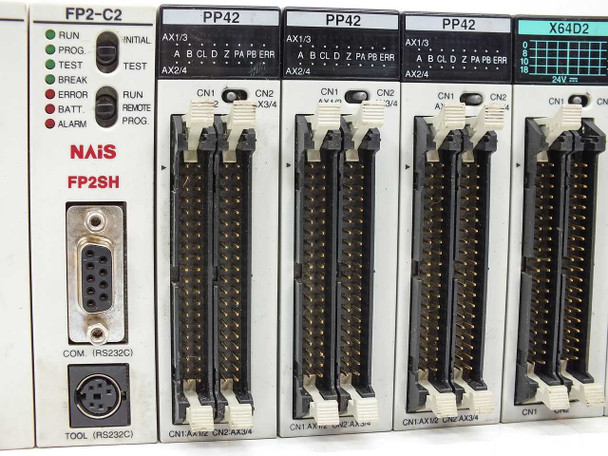

  • NAIS FP2-C2 CPU (FP2SH) and three PP42 positioning modules closeup — showing RUN/PROG/TEST/BREAK/ERROR/BATT/ALARM LEDs, RS-232C COM port, and CN1/CN2 ribbon connectors
  • Four NAIS FP2-X64D2 64-point input modules and one Y64T output module closeup — showing 24V DC markings, CN1/CN2 ribbon connectors, and status indicator rows
  • Three NAIS FP2-Y64T 64-point NPN transistor output modules closeup — showing Tr(NPN) 0.1A 5-24V markings, CN1/CN2 ribbon connectors

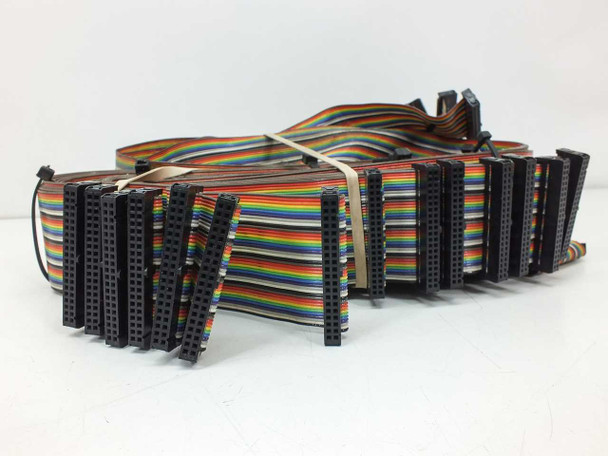

  • Large bundle of rainbow ribbon cables with IDC connectors included with the backplane — laid flat on white background
  • NAIS 14 Slot Backplane w PSA3, FP2-C2, PP42 x3, X64D2 x4, Y64T x3 FP2-BP14
  • NAIS 14 Slot Backplane w PSA3, FP2-C2, PP42 x3, X64D2 x4, Y64T x3 FP2-BP14
$1,100.00
Was: $2,200.00
Current Stock: 1

Sold Out

Description

NAIS FP2 FP2-BP14 AFP25014 14-Slot PLC Backplane PSA3 FP2-C2 PP42 X64D2 Y64T

NAIS FP2-BP14 is a 14-slot backplane rack for the NAIS FP2 Series programmable logic controller. It serves as the central mounting and interconnect platform for PLC modules in industrial automation and control systems.

Specifications & What's Included

  • Model: FP2-BP14 (MPN AFP25014)
  • 14 slots for module installation
  • Installed modules: PSA3 power supply, FP2-C2 CPU, 3x PP42 positioning modules, 4x X64D2 64-point 24V DC input modules, 3x Y64T 64-point transistor NPN output modules
  • Power input: 100–240V AC, 50/60Hz
  • Communication: RS-232C (COM and TOOL ports)
  • DIN rail/panel mount form factor
  • UL Listed, CE certified
  • Includes ribbon cables

Applications

The FP2 Series backplane was used in factory automation, machine control, process monitoring, and discrete manufacturing environments. These systems supported relay logic replacement, motion control via positioning modules, and data acquisition through extensive I/O capacity. The FP2 platform remained in use through the 1990s and 2000s in legacy industrial installations and OEM equipment.

Condition: Used
This NAIS FP2-BP14 AFP25014 14-slot PLC backplane has been inspected and appears to be in good condition. The backplane comes fully populated with all listed modules — PSA3 power unit, FP2-C2 CPU (FP2SH), three PP42 positioning modules, four X64D2 64-point input modules, and three Y64T 64-point output modules — all seated securely in the rack. The unit shows normal light wear consistent with prior industrial use; module faces and connector rows appear clean. All ribbon cables are included. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
NAIS (Matsushita Electric Works)
Model:
FP2-BP14
MPN:
AFP25014
Secondary Model:
FP2SH
Type:
PLC Backplane / Rack with Modules
SKU:
47360
Number of Slots:
14
Installed Modules:
PSA3, FP2-C2, 3x PP42, 4x X64D2, 3x Y64T
CPU Module:
FP2-C2 (FP2SH, AFP2231)
Power Supply Module:
PSA3 (FP2-PSA2, ADP2632)
Input Module:
FP2-X64D2 (AFP23067) x4 — 64-pt 24V DC input
Output Module:
FP2-Y64T (AFP23407) x3 — 64-pt transistor NPN
Positioning Module:
FP2-PP42 (AFP2435) x3
Power Requirements:
100–240V AC, 50/60Hz
Output Voltage (PSA3):
1A 30V DC (alarm output)
Interface:
RS-232C (COM and TOOL ports on FP2-C2)
Communication Port:
RS-232C x2 (COM and TOOL)
Series:
NAIS FP2 Series
Form Factor:
DIN Rail / Panel Mount Rack
Certifications:
UL Listed, CE
Country/Region of Manufacture:
Japan
Compatible With:
NAIS / Panasonic FP2 Series PLC modules
Condition:
Used – Inspected, appears in good condition
Seller Notes:
Includes backplane with all listed modules installed and ribbon cables
Condition Notes:
NAIS FP2-BP14 14-slot PLC backplane inspected and in good condition. All modules installed: PSA3, FP2-C2 CPU, 3x PP42, 4x X64D2, 3x Y64T. Ribbon cables included. Normal light wear from prior use.
View AllClose

Related Products

Related Products

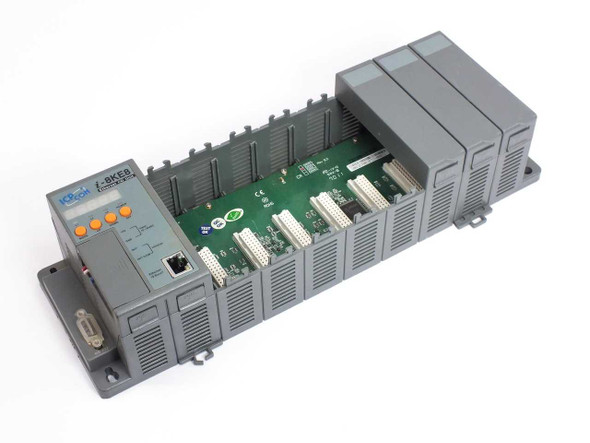

ICP DAS I-8KE8-G Embedded Ethernet I/O Unit PLC with B884 8-slot backplane – front-left view showing controller unit and installed I/O modules ICP DAS I-8KE8-G PLC with B884 backplane – rear-right view showing open module slots and Ethernet controller unit
