NAC PH-701 Film Motion Analyzer 70mm Fujinon 300mm f/4.5 Lens High Speed

(No reviews yet) Write a Review
SKU:
40347
MPN:
6H133-37
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
136.00 LBS
Shipping:
Calculated at Checkout

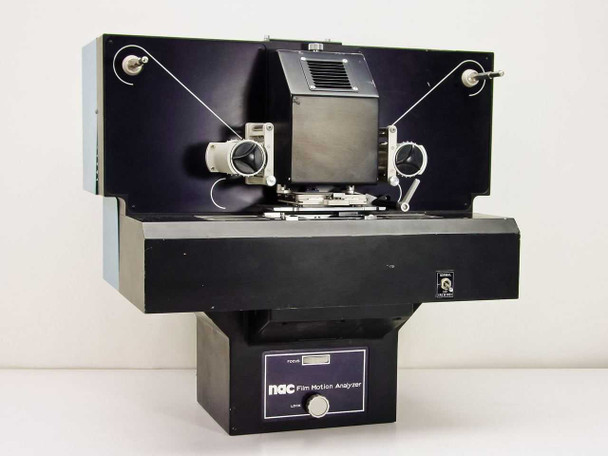

  • NAC PH-701 Film Motion Analyzer front view showing film transport deck, dual film reels, and black enclosure with NAC logo
  • NAC PH-701 Film Motion Analyzer top-down view of film transport mechanism with gate, guide rollers, and central light box housing

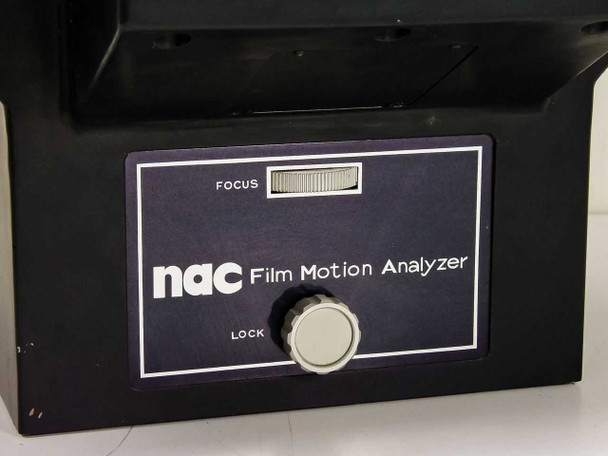

  • NAC PH-701 Film Motion Analyzer front control panel showing FOCUS slider, LOCK knob, and NAC Film Motion Analyzer nameplate

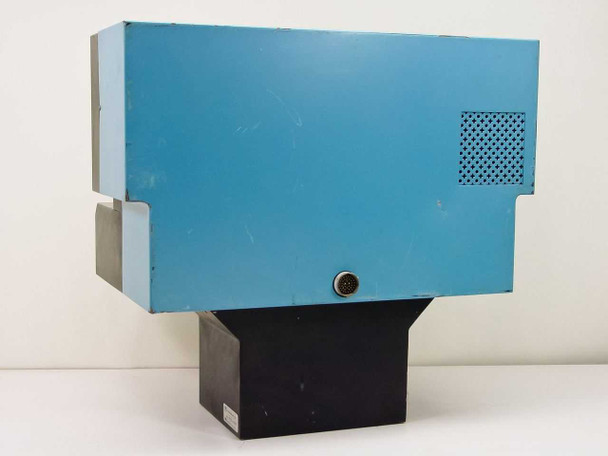

  • NAC PH-701 Film Motion Analyzer left side view showing blue upper housing with ventilation perforations and circular Burndy connector port
  • NAC PH-701 model label showing Model PH-701, No. 141-010, NAC Incorporated, Made in Japan

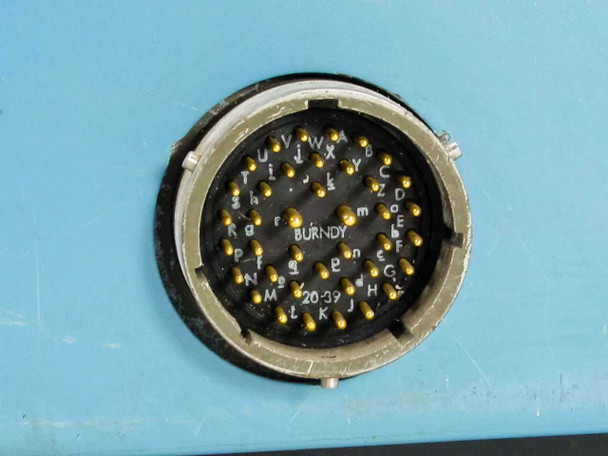

  • Burndy 20-39 multi-pin circular connector on the NAC PH-701 Film Motion Analyzer side panel

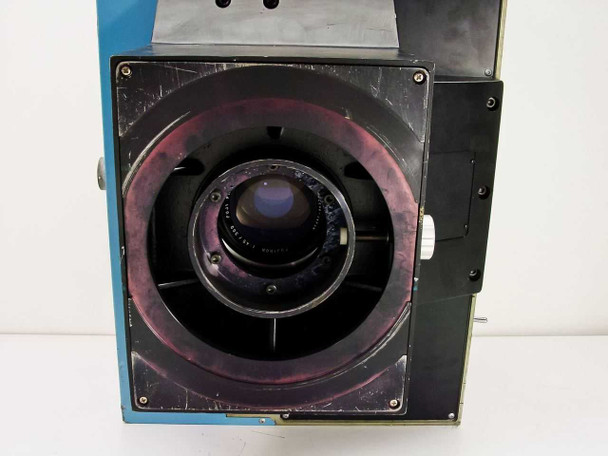

  • NAC PH-701 Film Motion Analyzer lens port showing the Fujinon 300mm f/4.5 lens mounted in housing with purple-coated barrel

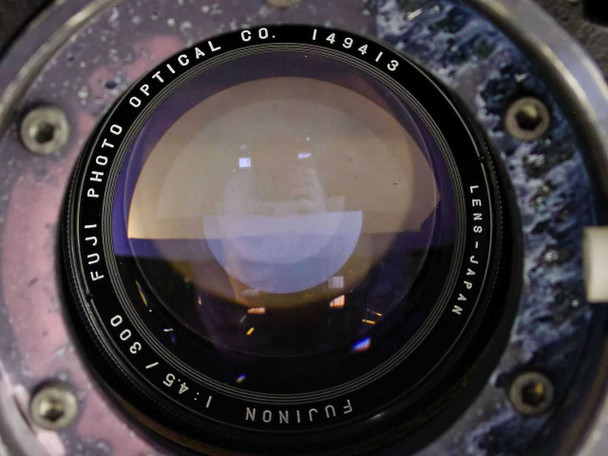

  • Close-up of Fujinon 300mm f/4.5 lens element with Fuji Photo Optical Co. markings and serial number 149413, lens made in Japan
$900.00
Was: $1,800.00
Current Stock: 1

Sold Out

Description

NAC PH-701 Film Motion Analyzer 70mm Fujinon 300mm f/4.5 Lens High Speed

The NAC PH-701 is a benchtop film motion analyzer designed for high-speed analysis of 70mm film. It captures and examines motion sequences for technical evaluation and documentation.

Specifications & What's Included

  • Manufacturer: NAC Incorporated (Japan)
  • Model: PH-701 | Serial: 141-010
  • Film Format: 70mm
  • Integrated Fujinon 300mm f/4.5 lens (Fuji Photo Optical, Serial: 149413)
  • Burndy 20-39 multi-pin circular connector
  • Dimensions: 23" W × 15" D × 21.25" H

Applications

Film motion analyzers are used in ballistics testing, high-speed industrial motion study, and technical research environments. The 70mm format and high-speed capability support detailed frame-by-frame analysis of rapid events. Equipment of this type integrates with laboratory setups for documenting and measuring physical phenomena requiring precise temporal resolution.

Condition: Used
This NAC PH-701 Film Motion Analyzer has been inspected and appears to be in good condition. The instrument shows normal wear consistent with its age — the blue side panels display scuffs and light scratching, and the lens housing shows some cosmetic wear around the barrel mount. The film transport deck, guide rollers, and gate area appear intact. The Fujinon 300mm f/4.5 lens by Fuji Photo Optical is included and mounted; the front lens element is visible and appears free of major damage. The Burndy 20-39 multi-pin circular connector on the side panel is present. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
NAC Incorporated
Model:
PH-701
MPN:
6H133-37
Type:
Film Motion Analyzer
SKU:
40347
Serial Number (Unit No.):
141-010
Film Format:
70mm
Lens Included:
Fujinon 300mm f/4.5
Lens Manufacturer:
Fuji Photo Optical Co.
Lens Serial Number:
149413
Connector Type:
Burndy 20-39 multi-pin circular connector
Country/Region of Manufacture:
Japan
Form Factor:
Benchtop / Freestanding
Dimensions:
23 W x 15 D x 21.25 H (inches)
Seller Notes:
Includes integrated Fujinon 300mm f/4.5 lens (Fuji Photo Optical, Made in Japan)
Application:
High-speed film analysis, motion study, ballistics, industrial research
Condition Notes:
NAC PH-701 Film Motion Analyzer inspected and in good condition. Normal cosmetic wear on side panels and lens housing. Fujinon 300mm f/4.5 lens included. Burndy connector present. Please view photos and contact us with questions.
View AllClose

Related Products

Related Products

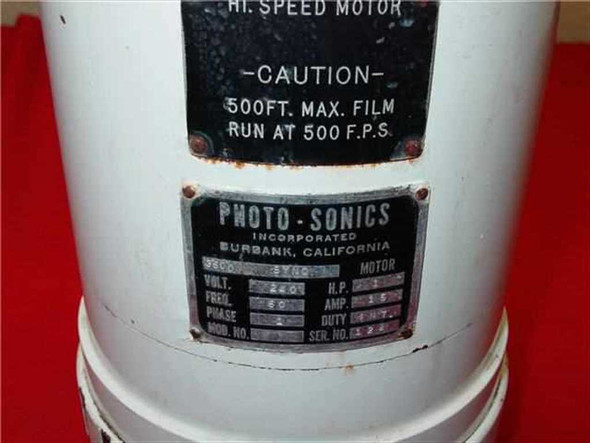

Photo-Sonics 4B 70mm High Speed Film Camera Sync Motor — front view showing rating plate, caution label, and attached multi-pin power cable Photo-Sonics rating plate close-up showing 240V, 1HP, 1-Phase, 60Hz, 1A, 3600 RPM specs and Burbank California manufacture label
