Mupac 4600056A 24-Slot VMEbus PCB Backplane Backboard 94-VO L-3799 Made in USA

(No reviews yet) Write a Review
SKU:
51801
MPN:
460005A
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout

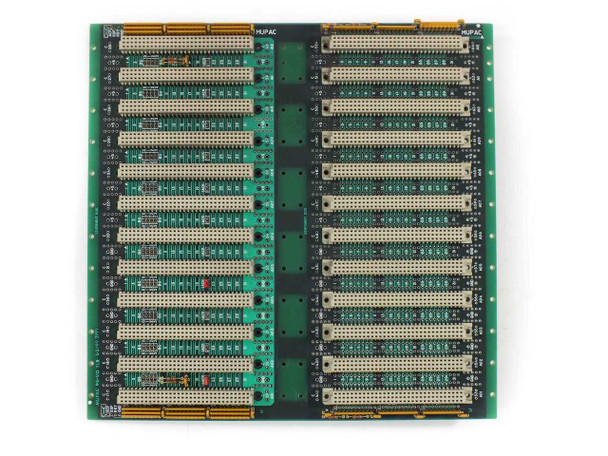

  • Mupac 4600056A 24-slot VMEbus PCB backplane — front face showing all 24 card-edge connector slots
  • Mupac 4600056A VMEbus backplane — rear/solder side showing through-hole pads and SMD components
  • Mupac 4600056A close-up of board corner showing part number, slot numbering, and C/64/AI2 labels
  • Mupac 94-VO TLR L-3799 2991 silkscreen on backplane corner with ACF/SSF/RST/GND signal labels and slots 17–19
  • Mupac VMEbus backplane edge showing 'MADE IN U.S.A.' and 'VMEbus' silkscreen with slot numbering and JI/GND labels
$95.00
Was: $200.00
Current Stock: 1

Sold Out

Description

Mupac 4600056A 24-Slot VMEbus PCB Backplane Backboard 94-VO L-3799 Made in USA

This is a passive PCB backplane designed for VMEbus systems. It provides 24 card slots for mounting VME-compatible modules and manages signal distribution across the bus architecture.

Specifications & What's Included

  • Brand: Mupac
  • Model: 4600056A / L-3799
  • Type: VMEbus Passive PCB Backplane
  • Slot Count: 24
  • Bus Standard: VMEbus (VME)
  • Flammability Rating: 94-VO
  • Manufactured in USA
  • Board only

Applications

VMEbus backplanes were standard in industrial control systems, telecommunications equipment, military platforms, and test instrumentation from the 1980s through early 2000s. This 24-slot configuration supports modular systems where processor cards, memory modules, I/O controllers, and specialized interface cards plug directly into the backplane. Compatible with any VME-format card and system designs using the VMEbus architecture standard.

Condition: Used
This Mupac 4600056A 24-slot VMEbus PCB backplane was pulled from a working power supply assembly and has been inspected. The board is in good used condition — the PCB surface is clean and green, connector slots appear intact with no bent pins visible, and silkscreen markings are clear and legible throughout. Normal light handling marks are present consistent with prior installation. No cracks, burns, or obvious physical damage are noted. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Mupac
Model:
4600056A
MPN:
4600056A
Secondary Model:
L-3799
SKU:
51801
Type:
VMEbus Passive PCB Backplane
Number of Slots:
24
Bus Standard:
VMEbus (VME)
Flammability Rating:
94-VO
Form Factor:
Card/Module — Passive Backplane
Country/Region of Manufacture:
United States
Condition:
Used – Pulled from Working Environment
Seller Notes:
Pulled from a working power supply assembly. Board only.
Condition Notes:
Mupac 4600056A 24-slot VMEbus backplane pulled from a working power supply assembly. Inspected and in good used condition. PCB clean, connector slots intact, no visible damage. Please contact us with any questions.
