Multi-Contact MC3 PV-ADBP Panel Mount Connector Lot 10 Pairs 32.0052 32.0053
This lot contains 10 male/female pairs of Multi-Contact MC3 PV-ADBP panel mount connectors. These are a specialized variant of the MC3 connector system, designed to be permanently installed through a drilled cutout in a metal panel, enclosure wall, or junction box. Unlike standard field-wireable MC3 connectors used to join two cables together, the PV-ADBP mounts flush to the panel and presents an MC3 mating face on the exterior while the bare wire termination is housed safely inside the enclosure. This allows MC3-compatible cables and connectors to plug directly into a sealed box without an unsecured wire penetration.
Specifications & What's Included
- Connector standard: MC3
- Configuration: Panel mount feedthrough (not a standard inline cable connector)
- Lot quantity: 10 male/female pairs (10 male + 10 female connectors)
- Includes panel mounting nuts for secure panel installation
- Female connector part numbers: 32.0052 | 32.0302 | PV-ADBP 3/GWD | PV-A-ADBP3/GWD
- Male connector part numbers: 32.0053 | PV-ADBP3/GWD-UR
- Body material: Black thermoplastic (UV-resistant)

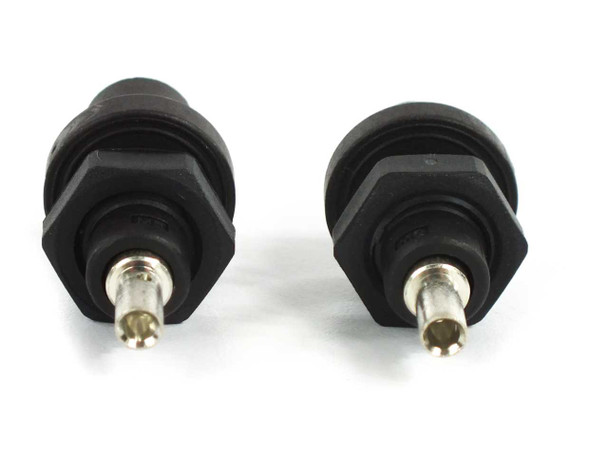

- Contact material: Silver-plated copper pin (visible in photos)
- Wire termination: Bare wire (internal to enclosure — not externally insulated)
- Mounting: Threaded body with hex nut, requires drilled panel cutout
- Manufacturer: Multi-Contact (Switzerland)
Applications
The Multi-Contact PV-ADBP series is designed for solar photovoltaic installations where MC3-compatible connections must pass through an enclosure wall, combiner box, junction box, or electrical panel in a weatherproof and mechanically secure manner. They are commonly used in PV array wiring and balance-of-system (BOS) components where the internal wiring must remain protected inside a rated enclosure while still presenting a standard MC3 mating interface on the exterior. This connector type is also found in other low-voltage DC electrical panels and equipment enclosures that require a panel-penetrating connector compatible with MC3 cables and accessories.
These Multi-Contact MC3 PV-ADBP panel mount connectors are new and unused. The lot includes 10 male connectors (PN 32.0053 / PV-ADBP3/GWD-UR), 10 female connectors (PN 32.0052 / PV-A-ADBP3/GWD), and the corresponding panel mounting nuts. Items appear new with no signs of prior use or installation. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Multi-Contact |
Model: |
PV-ADBP |
MPN: |
32.0052 (Female) / 32.0053 (Male) |
Type: |
MC3 Panel Mount Connector Pair |
SKU: |
52259 |
Connector Standard: |
MC3 |
Gender: |
Male and Female (Pairs) |
Quantity: |
10 Pairs (10 Male + 10 Female) |
Mounting Style: |
Panel Mount (requires drilled panel cutout) |
Includes: |
10 male connectors, 10 female connectors, panel mounting nuts |
Female Part Numbers: |
32.0052, 32.0302, PV-ADBP 3/GWD, PV-A-ADBP3/GWD |
Male Part Numbers: |
32.0053, PV-ADBP3/GWD-UR |
Application: |
Solar PV enclosure / junction box panel feedthrough |
Wire Termination: |
Bare wire (internal, inside enclosure — not insulated) |
Country/Region of Manufacture: |
Switzerland |
Condition: |
New |
Condition Notes: |
Multi-Contact MC3 PV-ADBP panel mount connectors are new and unused. Lot of 10 male/female pairs with mounting nuts. PNs 32.0052 (female) & 32.0053 (male). No signs of use. |
