Description
Moyetec MPA-300A 300W ATX Desktop PC Power Supply 115/230VAC Dual Voltage
The Moyetec MPA-300A is a 300W ATX form-factor power supply designed for desktop PC systems. It accepts dual-voltage AC input (115VAC or 230VAC, 50/60Hz) and delivers multiple regulated DC output rails to power mainboards, drives, and peripherals. The unit carries TÜV Rheinland, UL, CB, and CE certifications and bears a QA PASS label.
Specifications & What's Included
- Model: MPA-300A
- Form Factor: ATX Desktop
- Max Output: 300W
- AC Input: 115VAC 7.0A / 230VAC 3.5A, 50/60Hz
- DC Output: +3.3V/16A, +5V/25A, +12V/12A, -5V/0.3A, -12V/0.8A, +5Vsb/2A
- Combined +3.3V/+5V max: 145W

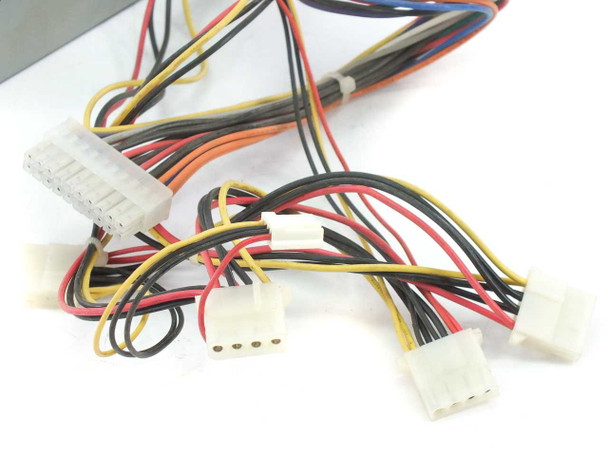

- Connectors: 20-pin ATX mainboard, 4-pin Molex peripheral, floppy power
- Certifications: TÜV Rheinland, UL, CB, CE, FCC
- Unit only — no accessories included
Applications
The MPA-300A is suited for use in ATX-compatible desktop computers, including legacy and mid-2000s era tower and mid-tower systems. It is commonly used as a direct replacement or spare power supply in ATX desktop builds, workstations, and industrial PC enclosures that follow the ATX standard. The dual-voltage input makes it usable in both North American (115VAC) and international (230VAC) environments.

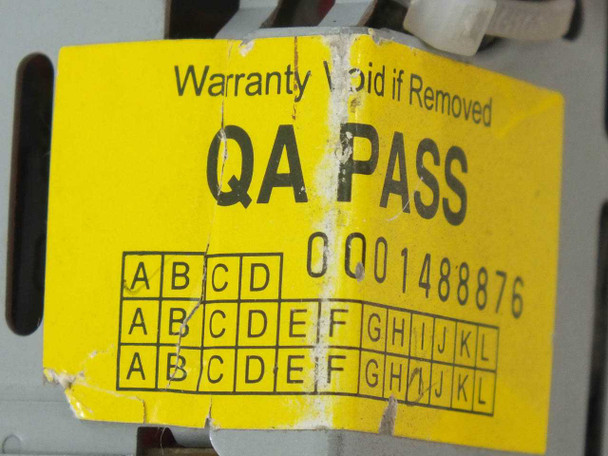

This Moyetec MPA-300A 300W ATX desktop power supply has been tested at our facility and is in good working order. The unit shows normal wear consistent with prior use, including some surface marks on the chassis. All output connectors — including the 20-pin ATX mainboard connector and Molex peripheral leads — are present and intact. A QA PASS label is visible on the unit. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Moyetec |
Model: |
MPA-300A |
MPN: |
MPA-300A |
SKU: |
18981 |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Unit only — no accessories included. |
Form Factor: |
ATX Desktop |
Power Output: |
300W Max |
AC Input Voltage: |
115VAC / 230VAC, 50/60Hz |
AC Input Current: |
7.0A @ 115VAC; 3.5A @ 230VAC |
DC Output +3.3V: |
16A |
DC Output +5V: |
25A |
DC Output +12V: |
12A |
DC Output -5V: |
0.3A |
DC Output -12V: |
0.8A |
DC Output +5Vsb: |
2A |
Max Combined Output: |
145W Max (+3.3V/+5V combined); 300W total |
Certifications: |
UL, CE, CB, TÜV Rheinland, FCC |
Connector Type: |
20-pin ATX mainboard, 4-pin Molex, floppy |
Compatible With: |
ATX desktop computers, legacy PC systems |
Country of Manufacture: |
Taiwan |
Condition Notes: |
This Moyetec MPA-300A 300W ATX desktop power supply has been tested at our facility and is in good working order. The unit shows normal wear consistent with prior use, including some surface marks on the chassis. |
