Description
Motorola Codex 2264 Data Modem External Desktop 115VAC 41705 w/ Power Cable
The Motorola Codex 2264 is an external desktop data modem produced by Codex Corporation, a Motorola subsidiary based in Mansfield, MA that was a leading maker of data communications equipment for leased-line and dial-up networks. The 2264 is a standalone desktop unit powered from a standard 115VAC outlet, designed for synchronous and asynchronous data communications over telephone or leased-line circuits. The front panel features an LCD status display and eight labeled function/control buttons; the rear provides a 25-pin DB25 serial interface port and two RJ-11 modular jacks for line and telephone connections.
Specifications & What's Included
- Make: Motorola Codex
- Model: 2264 Data Modem
- Product Code: 41705
- Power Input: 115 VAC, 50/60 Hz, 0.5A
- Form Factor: External Desktop

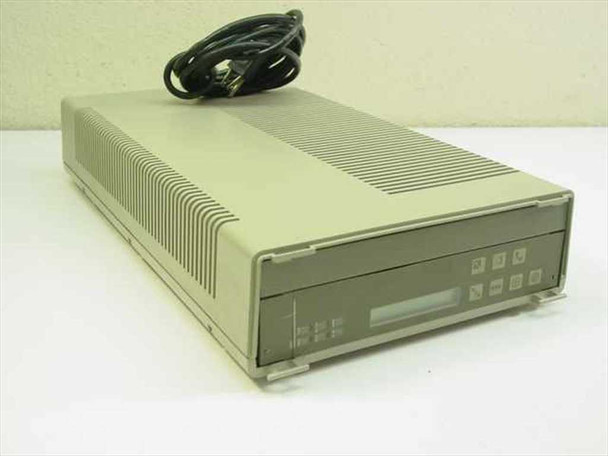

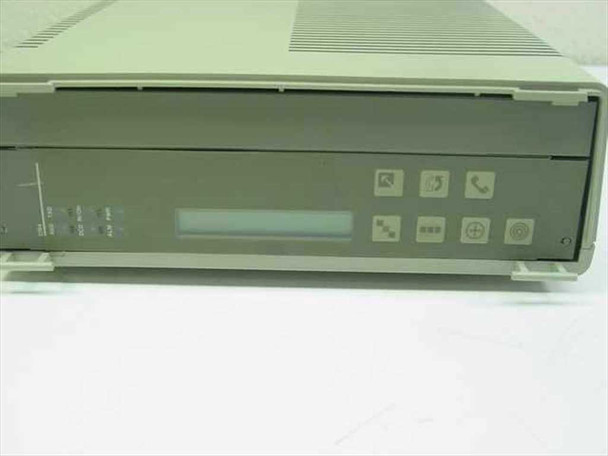

- Front Panel: LCD status display, 8 function/control buttons with icon labels

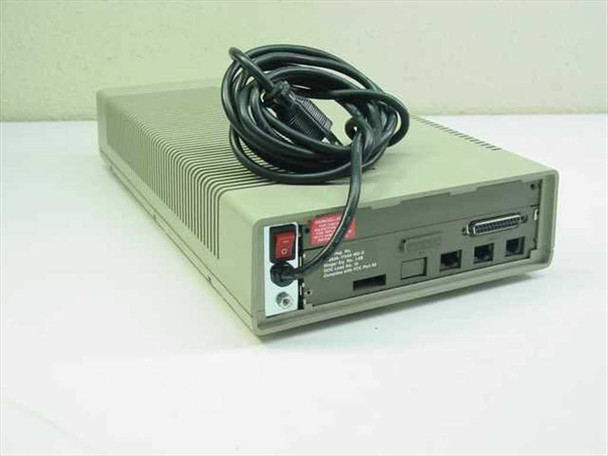

- Rear Connectors: 25-pin DB25 serial interface port, 2× RJ-11 modular jacks, power switch (red rocker)
- Country of Manufacture: USA (Mansfield, MA)

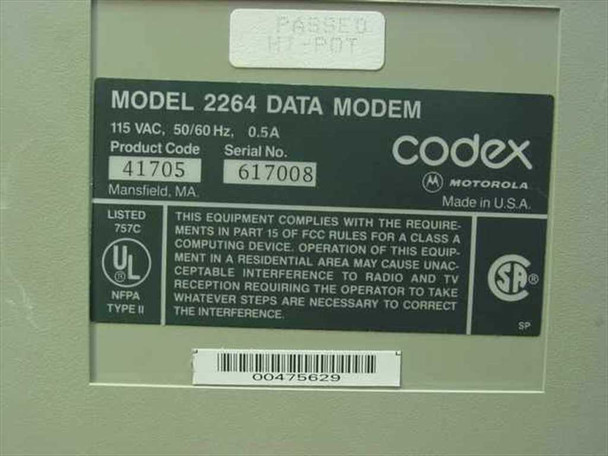

- Certifications: UL Listed 757C, CSA, NFPA Type II; FCC Part 15 Class A compliant
- HI-POT Test: PASSED (sticker present on unit)
- Included: Attached AC power cable
Applications
Codex was a well-regarded name in enterprise data communications from the 1970s through the 1990s, and the 2264 is representative of the external standalone modems used in corporate and government networks of that era for point-to-point and multi-point leased-line data links. These units connected host computers, terminals, and other DTE equipment to analog telephone circuits, supporting applications like remote terminal access, file transfer, and inter-site data links before the widespread adoption of digital WAN services. The DB25 serial interface made the 2264 compatible with a wide range of computers and terminal equipment of the period using RS-232 signaling. Today these units are sought by collectors of vintage data communications equipment, by organizations maintaining legacy systems that still rely on analog modem links, and by engineers needing compatible hardware for older Codex network infrastructure.
This Motorola Codex 2264 External Desktop Data Modem has been inspected and is in good used condition. It was pulled from a working environment where it was previously in use. The housing shows light surface wear consistent with normal use, and the front panel display and buttons appear intact. The rear connectors and power switch look to be in good shape. Comes with the attached power cable as shown. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Motorola Codex |
Model: |
2264 |
MPN: |
41705 |
SKU: |
34229 |
Type: |
External Desktop Data Modem |
Power Requirements: |
115 VAC, 50/60 Hz, 0.5A |
Form Factor: |
Desktop |
Connector Type: |
25-pin D-sub (DB25), RJ-11 |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes attached power cable |
Interface Type: |
Serial / DB25 |
Compatible With: |
Codex / Motorola leased-line data networks |
Condition Notes: |
Motorola Codex 2264 Data Modem inspected and in good used condition. Pulled from a working environment. Light surface wear. Includes attached power cable. Please contact us with any questions. |
