Moog

Moog D661Z274XX Servo Jet Proportional Control Valve Type P80HXAP6NEA2

(No reviews yet) Write a Review
SKU:
45497
MPN:
D661z274XX
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
17.00 LBS
Shipping:
Calculated at Checkout
  • Moog D661Z274XX Servo Jet Proportional Control Valve — three-quarter front-left view showing blue valve body, DIN solenoid connector, and multi-pin circular connector
  • Moog D661Z274XX Servo Jet Proportional Control Valve — three-quarter front-right view showing full assembly with solenoid block and circular connector port
  • Moog D661Z274XX valve rating plate closeup — showing model D661Z274E, type P80HXAP6NEA2, pressure and supply specs, and Moog D-71034 Böblingen label
  • Moog D661Z274XX Servo Jet Proportional Valve — left side view showing manifold face with hydraulic ports and solenoid connector at right
  • Moog D661Z274XX valve — front end view showing hydraulic port face with four mounting holes and DIN solenoid connector with visible stress crack on connector housing

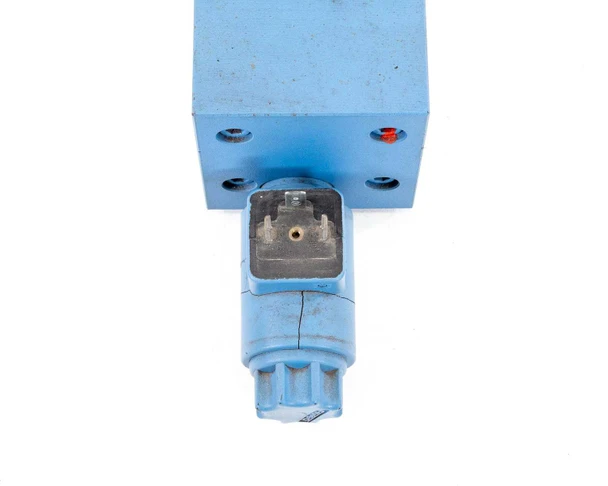

  • Moog D661Z274XX valve — DIN solenoid connector closeup showing cosmetic stress cracking on the connector body housing
  • Moog D661Z274XX valve — right side end view showing multi-pin circular connector and Moog logo on valve body

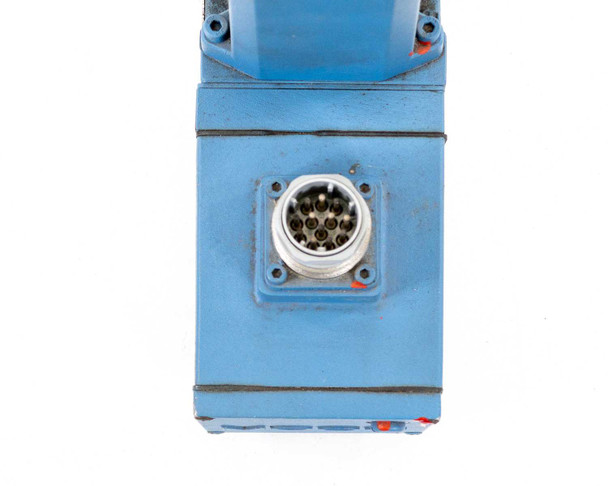

  • Moog D661Z274XX valve — top-down view of multi-pin circular connector showing pin configuration
  • Moog D661Z274XX Servo Jet Proportional Valve — opposite side three-quarter view showing 'SERVO JET' label on solenoid block and circular connector
  • Moog D661Z274XX valve — bottom manifold face view showing hydraulic mounting port pattern and machined subplate interface
$800.00
Was: $1,600.00
Current Stock: 1

Sold Out

Description

Moog D661Z274XX Servo Jet Proportional Control Valve Type P80HXAP6NEA2

Electrohydraulic proportional directional control valve from Moog's D661 series. Regulates hydraulic flow and direction using proportional solenoid actuation for precise system control.

Specifications & What's Included

  • Brand: Moog | Model: D661Z274XX
  • Valve Type: Servo Jet Proportional Directional Control
  • Actuation: Electric / Electrohydraulic
  • Connectors: Multi-pin circular (rear) and DIN solenoid
  • Mounting: Subplate / Manifold Mount
  • Manufacture: Germany
  • Valve only; no cables or accessories included

Applications

Used in plastic injection molding equipment, particularly Netstal injection molding machines. This valve type manages hydraulic flow distribution in industrial molding systems where proportional control of actuator speed and force is required. Commonly integrated into manifold assemblies controlling clamp, injection, and ejection functions.

Condition: For Parts or Not Working
This Moog D661Z274XX Servo Jet Proportional Control Valve was removed from a Netstal injection molding machine that was in active use at the time of removal. The valve was working when taken out of service; however, it has not been retested since removal and is being sold AS-IS with no functionality guarantee. The electric solenoid connector housing shows visible cosmetic stress cracking — this is noted in the photos. The blue valve body shows general service wear consistent with industrial use. The hydraulic manifold mounting face and port bores appear intact. Please review our photos carefully and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Moog
Model:
D661Z274XX
MPN:
D661Z274XX
Secondary Model:
P80HXAP6NEA2
Type:
Servo Jet Proportional Control Valve
Series:
D661 Series
SKU:
45497
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Valve only; no cables or accessories included. AS-IS sale.
Country/Region of Manufacture:
Germany
Valve Type:
Electrohydraulic Proportional Directional Control Valve
Actuation:
Electric / Electrohydraulic
Control Type:
Proportional (Servo Jet)
Connector Type 1:
Multi-pin circular connector (rear)
Connector Type 2:
DIN solenoid connector
Mounting Style:
Subplate / Manifold Mount
Compatible With:
Netstal Injection Molding Machines
Application:
Plastic injection molding, industrial hydraulic systems
Additional Model Numbers:
D661Z2742E, D661Z2743F
Condition Notes:
Moog D661Z274XX Servo Jet Proportional Control Valve removed from a working Netstal injection molder. Worked at time of removal; not retested. Sold AS-IS — no functionality guarantee. Solenoid connector housing has cosmetic stress cracks.
