Mode Electronics DV-6500 AC Adapter 6VDC 500mA 120VAC 60Hz Barrel Plug 68-650-1

Mode Electronics DV-6500 AC Adapter 6VDC 500mA 120VAC 60Hz Barrel Plug 68-650-1

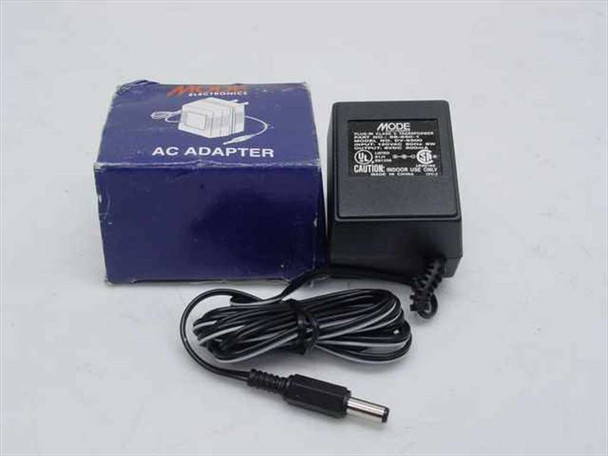

The Mode Electronics DV-6500 is a plug-in Class 2 transformer that converts standard 120VAC household current to a regulated 6VDC output at up to 500mA. It uses a center-positive barrel plug connector and is rated for indoor use only. Part number 68-650-1 is printed on the unit label and the adapter carries both UL and CSA safety certifications.

Specifications & What's Included

• Model: DV-6500
• Part Number: 68-650-1
• Type: Plug-In Class 2 Transformer / AC Adapter
• Input: 120VAC, 60Hz, 8W
• Output: 6VDC, 500mA

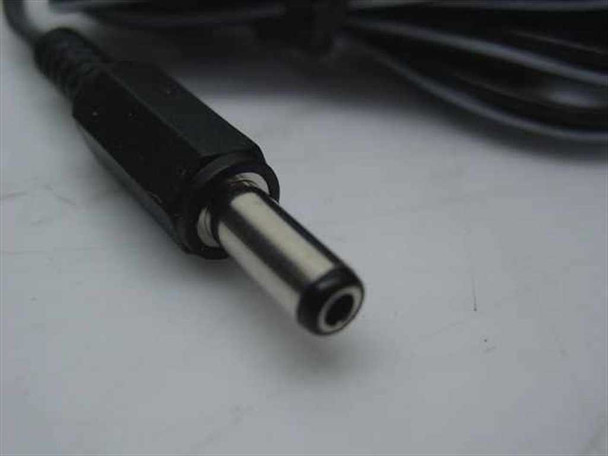

• Connector: Barrel plug (center-positive)
• Certifications: UL Listed (File 81J1 / E81356), CSA (LR99169)
• Usage: Indoor use only
• Country of Manufacture: China
• Includes: AC adapter with attached output cord and original box

Applications

Small plug-in AC adapters like the DV-6500 are widely used to power low-voltage consumer electronics, desktop peripherals, routers, answering machines, cordless phone bases, and similar devices that require a 6VDC supply. The Class 2 rating means the adapter's output is inherently limited in both voltage and current, making it safe for use with small electronics without additional overcurrent protection. The 500mA output is sufficient for a broad range of light-duty DC-powered devices. Mode Electronics has produced a range of wall-mount and plug-in transformers for OEM and retail use across consumer electronics and light industrial applications.
