Modcomp 1100R-RC-32E-32 VME Industrial Computer Chassis MVME946 IEEE488 VLAN

(No reviews yet) Write a Review
SKU:
36038
MPN:
1100R
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
60.00 LBS
Shipping:
Calculated at Checkout
  • Modcomp 1100R VME industrial computer chassis — front-left three-quarter view showing tower enclosure with drive bay door open and VME backplane visible through left window
  • Modcomp 1100R-RC-32E-32 VME chassis rear view showing installed VME boards with multiple D-sub connectors, GPIB, and power inlet; MODCOMP label visible on top
  • Modcomp 1100R model label showing model number 1100R-RC-32E-32, serial number field blank, and AEG company identification
  • Motorola MVME946 power supply label showing model 8520, AC 115/230V autoselect, 60/50Hz, 6.0/4.0A max current
  • FTZ compliance label showing model type MSY512C, FTZ number A700072C, and FCC Part 15 Class A computing device statement

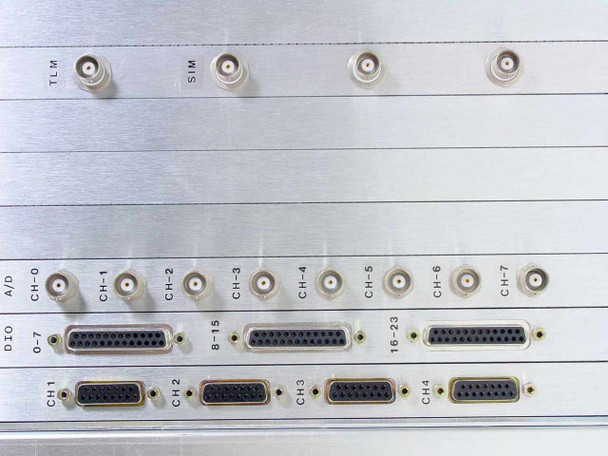

  • VME backplane I/O panel showing BNC analog input channels CH-0 through CH-7, TLM and STM BNC connectors, DIO D-sub connectors for 0-7, 8-15, 16-23, and four CH serial D-sub ports
  • Modcomp 1100R rear VME board I/O panel showing Motorola MVME 712-11 with Serial Port 1 Console, Serial Port 2 TTY01, Serial Port 3, Serial Port 4, SCSI Interface, Ethernet, Printer port; second row shows E-NET, DIAG, and RSVC connectors; third row shows Modcomp VLAN board connectors
  • Modcomp 1100R drive bay close-up showing tape drive (top), optical or disk drive (middle), and two additional drive bays with status LEDs
  • Modcomp 1100R interior VME chassis view showing installed boards including CPU, VLAN E2, IEEE488, Matrix MD-D10 modules with ribbon cables; empty slot where PTI-VME 330A board was removed
$1,800.00
Was: $3,600.00
Current Stock: 2

Sold Out

Description

Modcomp 1100R-RC-32E-32 VME Industrial Computer Chassis MVME946 IEEE488 VLAN

VMEbus industrial real-time computer chassis manufactured by Modcomp. Motorola MVME946 backplane with integrated power supply, CPU module, and multiple interface cards for data acquisition and control applications.

Specifications & What's Included

  • Motorola MVME946 VMEbus backplane with Motorola 8520 power supply
  • Modcomp CPU 566-100181-004 processor module
  • IEEE-488 (GPIB) interface card, Modcomp 2453
  • VLAN E2 2450A network module
  • 8-channel analog input (BNC connectors), digital I/O, 4 serial ports
  • SCSI, Ethernet, and parallel printer interfaces
  • Multiple 5.25" drive bays for storage devices

Applications

VMEbus systems were used in test and measurement, industrial automation, and scientific instrumentation. This chassis supports standard VMEbus modules and peripherals. The combination of IEEE-488 and analog/digital I/O made it suitable for laboratory equipment integration and process control systems.

Condition: For Parts or Not Working
This Modcomp 1100R-RC-32E-32 VME Industrial Computer Chassis powers on but cannot be tested further at our facility, so it is being sold AS-IS for parts or repair. The PTI-VME 330A board has been removed, and we are not certain whether any other components may be missing. The system appears complete with its installed Modcomp CPU, VLAN E2, IEEE-488, Motorola MVME 712-11, and Matrix MD-D10 modules as shown, but this cannot be verified. The chassis and boards show typical wear consistent with prior use in an industrial environment. It is not guaranteed functional in any way. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Modcomp
Model:
1100R-RC-32E-32
MPN:
1100R-RC-32E-32
Secondary Model:
MSY512C
Type:
VMEbus Industrial Real-Time Computer Chassis
SKU:
36038
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Powers on; PTI-VME 330A board removed. Sold AS-IS for parts or repair.
Country/Region of Manufacture:
United States
Form Factor:
Desktop / Tower Chassis
Bus Architecture:
VMEbus (VME)
Backplane / Chassis Model:
Motorola MVME946
Power Supply Model:
Motorola 8520 (MVME946 type)
Power Requirements:
AC 115/230V Autoselect, 60/50Hz, 6.0/4.0A
CPU Module:
Modcomp CPU 566-100181-004
VLAN Module:
Modcomp VLAN E2 2450A, PN 566-100175-1001
IEEE-488 Module:
Modcomp IEEE488 2453, PN 566-100133-001
VME CPU Card:
Motorola MVME 712-11
Matrix Switch Module:
Matrix MD-D10
FTZ Model/Type:
MSY512C
FCC ID / FTZ No.:
A700072C
Interface Types:
IEEE-488 (GPIB), Ethernet, SCSI, Serial, DIO, A/D
I/O — Analog Input Channels:
8 channels (CH-0 through CH-7), BNC connectors
I/O — Digital I/O:
DIO 0-7, 8-15, 16-23 (D-sub connectors)
I/O — Serial Ports:
4 serial ports (Console, TTY01, Port 3, Port 4)
I/O — Other Ports:
SCSI Interface, Ethernet, Printer (parallel), E-NET
Storage Bays:
Multiple 5.25" bays visible; tape drive and disk drives
Missing Components:
PTI-VME 330A board has been removed
Compatible With:
VMEbus standard modules and peripherals
Manufacturer Parent Company:
AEG (Modcomp was an AEG company)
Condition Notes:
Modcomp 1100R-RC-32E-32 VME Computer Chassis powers on but cannot be further tested. Sold AS-IS for parts or repair. PTI-VME 330A board removed; other missing components unknown. Not guaranteed functional.
