Description
Mitutoyo ID-C112TB 543-253B Absolute Digimatic Indicator 0.5" 12.7mm
The Mitutoyo ID-C112TB is an Absolute IDS (Intelligent Data System) Digimatic digital indicator from Mitutoyo's Series 543 line. Unlike conventional digital indicators that lose their position reference when switched off, the Absolute measurement system retains the origin reference at all times — the display reads the true position immediately on power-up without requiring a re-zero. The unit reads in both inch and metric, selectable via a front-panel switch.
Specifications & What's Included
- Model: ID-C112TB
- Code No.: 543-253B
- Measurement range: 0.5" / 12.7mm
- Resolution: 0.0001" / 0.001mm (switchable)
- Accuracy: 0.00012"
- Display: Large LCD with backlit-style housing
- Unit switching: inch / metric via front-panel button

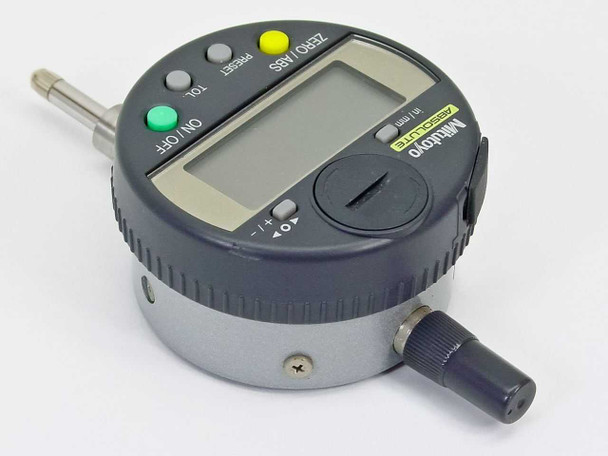

- Front-panel controls: ZERO/ABS, ON/OFF, PRESET, TOL (tolerance output)
- Yellow LED indicator: ZERO/ABS status
- Green LED indicator: ON/OFF / TOL status

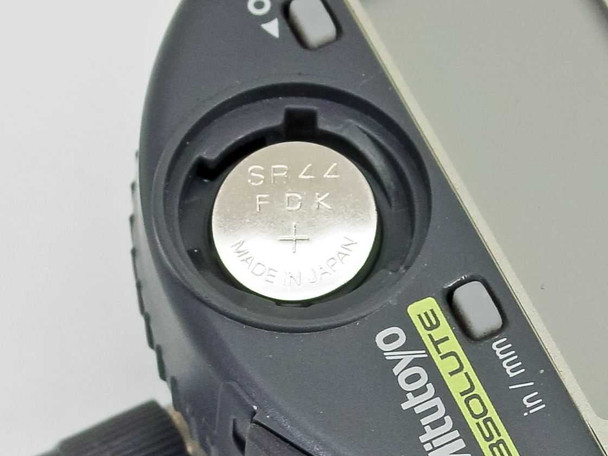

- Battery: SR44 (A76) — SR44 FDK battery installed

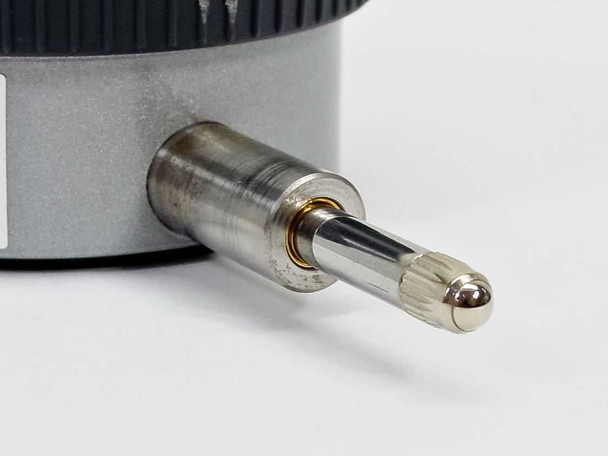

- Stem: 8mm diameter with carbide ball contact tip and locking collar
- Stem cap fitting (brass-insert type) included
- Made in Japan; CE marked
Applications
Mitutoyo Digimatic indicators are standard precision measurement tools used in machine shops, quality control departments, and metrology labs. The ID-C112TB is designed for surface plate work, fixture checking, part runout and flatness measurement, and inspection setups on manual or CNC machining centers. The Absolute system makes it particularly well-suited for repetitive inspection tasks where re-zeroing between measurements would slow the process. It is compatible with Mitutoyo's SPC data output systems (Digimatic interface) for direct transfer of measurement data to statistical software or a data logger, a common requirement in ISO-compliant manufacturing and QC environments. Instruments in this series are in active everyday use in precision manufacturing, toolroom inspection, and dimensional metrology worldwide.
This Mitutoyo ID-C112TB Absolute Digimatic Indicator (Code 543-253B) has been inspected and appears to be in good used condition. The housing shows light handling wear consistent with previous shop use, but the display face, controls, and contact stem are clean and intact. An SR44 battery is installed. The stem cap fitting is also included, as visible in the photos. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Mitutoyo |
Model: |
ID-C112TB |
MPN: |
543-253B |
Type: |
Absolute Digimatic Indicator |
SKU: |
42486 |
Series: |
IDS Absolute |
Measurement Range: |
0.5" / 12.7mm |
Resolution: |
0.0001" / 0.001mm |
Accuracy: |
0.00012" |
Display Type: |
LCD Digital |
Units: |
Inch / Metric (switchable) |
Battery Type: |
SR44 (A76) |
Stem Diameter: |
8mm |
Features: |
ZERO/ABS, PRESET, TOL (tolerance) output buttons |
Country/Region of Manufacture: |
Japan |
Seller Notes: |
Indicator with stem contact point and stem cap fitting; SR44 battery installed |
Condition Notes: |
This Mitutoyo ID-C112TB Absolute Digimatic Indicator (543-253B) has been inspected and is in good used condition with light handling wear. SR44 battery and stem cap fitting included. Please contact us with any questions. |
