Description
Mitutoyo ID-C112E Digital Dial Indicator 0.5" 0.00005" Resolution 543-252
The Mitutoyo ID-C112E is a compact digital dial indicator with a 0.5-inch (12.7 mm) measurement range and a fine resolution of 0.00005 inch (0.001 mm). It features a large LCD readout with inch/metric switching, a ZERO/ABS function for setting reference points, a PRESET function for entering a target value, and a tolerance (TOL) output with corresponding indicator lights. Power comes from a single SR44 button cell battery. A data output port on the side allows connection to compatible data collection systems.
Specifications & What's Included
- Model: Mitutoyo ID-C112E

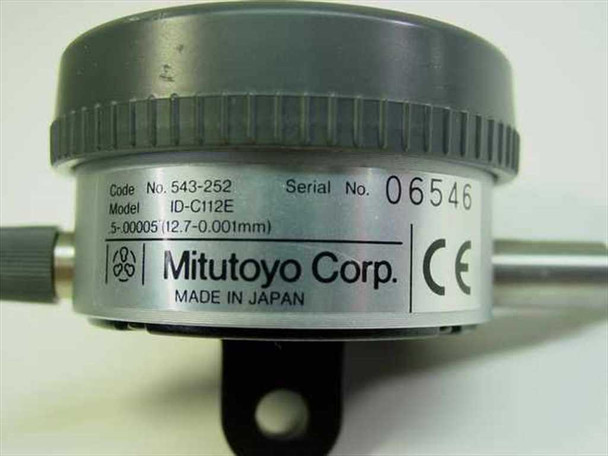

- Code No.: 543-252
- Measurement range: 0.5" (12.7 mm)
- Resolution: 0.00005" (0.001 mm)
- Display: LCD digital readout
- Units: Inch / Metric switchable (in/mm button)

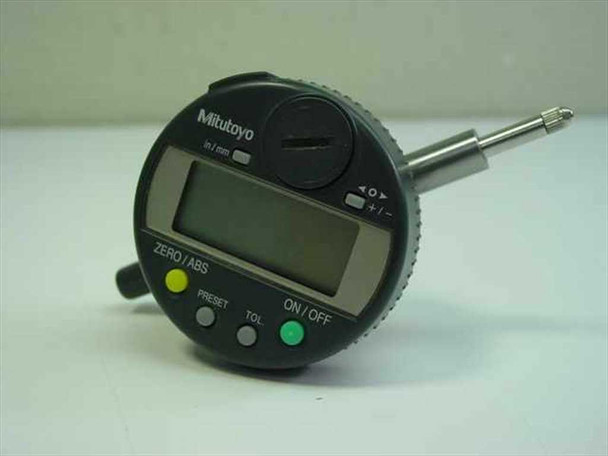

- Functions: ZERO/ABS, PRESET, TOL, ON/OFF
- Tolerance indicator lights: yellow and green LEDs

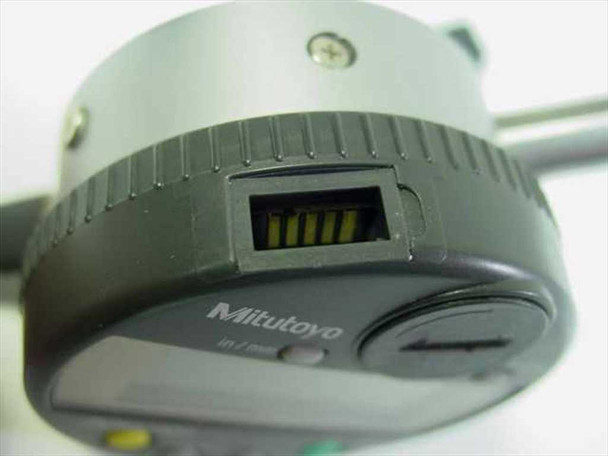

- Data output port (side-mounted, for SPC/data collection)
- Battery: 1x SR44 button cell (not included)
- Country of manufacture: Japan
- Certification: CE
- Includes: indicator only — no cables, case, or battery
Applications
Digital dial indicators like the Mitutoyo ID-C112E are standard precision measurement tools used on the shop floor, inspection bench, and in quality control. They are mounted in indicator stands or holders to check part dimensions, runout, flatness, and surface variation during machining, grinding, and assembly operations. The ID-C112E's fine 0.00005" resolution makes it well suited for tight-tolerance inspection work in toolrooms, gage labs, and precision machining environments. The data output port supports connection to SPC data collection equipment, making it useful in statistical process control setups. Mitutoyo's ID-C series has been widely used in manufacturing and metrology settings for decades and remains a common reference tool in both production and inspection roles.
This Mitutoyo ID-C112E Digital Dial Indicator has been tested at our facility and is in good working order. The unit powers on, the LCD display functions normally, and inch/metric switching operates as expected. It requires one SR44 button cell battery to operate (not included). The indicator shows light surface wear consistent with prior use but is in good overall cosmetic condition. Please review our photos and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Mitutoyo |
Model: |
ID-C112E |
MPN: |
543-252 |
Type: |
Digital Dial Indicator |
SKU: |
32531 |
Measurement Range: |
0.5" (12.7 mm) |
Resolution: |
0.00005" (0.001 mm) |
Display: |
LCD Digital Display |
Units: |
Inch / Metric (in/mm switchable) |
Battery: |
1x SR44 button cell |
Functions: |
ZERO/ABS, PRESET, TOL, ON/OFF |
Country/Region of Manufacture: |
Japan |
Seller Notes: |
Indicator only — requires 1 SR44 button cell battery (not included). |
Form Factor: |
Handheld / Bench Indicator |
Certifications: |
CE |
Condition Notes: |
This Mitutoyo ID-C112E Digital Dial Indicator has been tested and is in good working order. LCD and controls function normally. Requires 1 SR44 button cell (not included). Light surface wear from prior use. Contact us with any questions. |
