Description
Mitutoyo 197-201 Dual Micrometer Stage 0-2in 0.0002in XY Vacuum Positioning

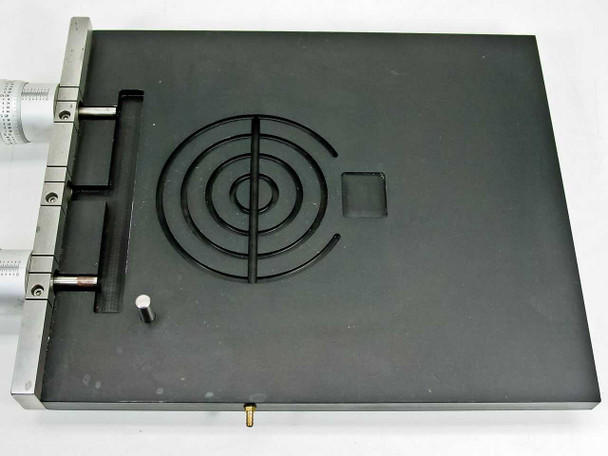

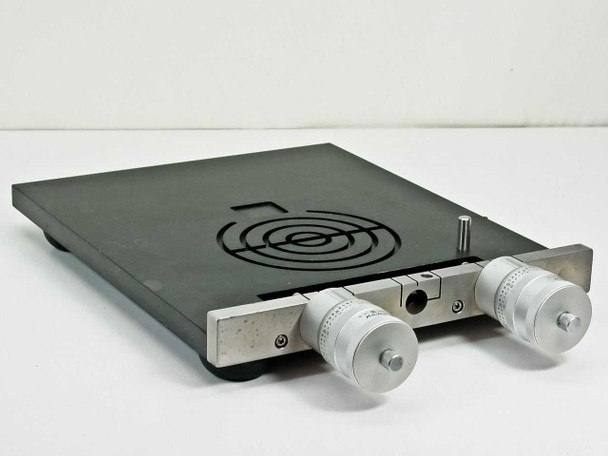

The Mitutoyo 197-201 is a precision two-axis (XY) micrometer positioning stage designed for microscopy, optical inspection, and other applications requiring fine, repeatable specimen movement. The stage uses two Mitutoyo 197-201 micrometer heads — one per axis — to provide smooth, calibrated travel with 0.0002-inch resolution over a 0–2-inch range per axis. The black anodized aluminum platform features a machined concentric target pattern on the top surface and a brass barb fitting on the edge for vacuum specimen hold-down.
Specifications & What's Included
- Make: Mitutoyo
- Model / Part Number: 197-201
- Country of Manufacture: Japan
- Type: Two-axis (XY) micrometer-driven positioning stage

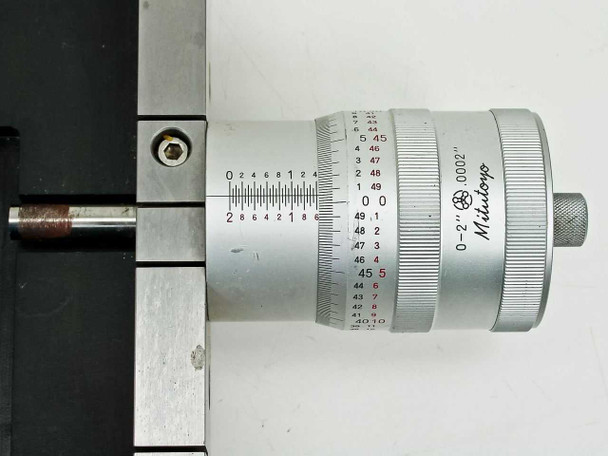

- Micrometer heads: 2× Mitutoyo 197-201 (one per axis)
- Measurement range: 0–2 in per axis
- Resolution: 0.0002 in (.0002Condition: Used
This Mitutoyo 197-201 Dual Micrometer XY Stage has been visually inspected and appears to be in good used condition. The black anodized aluminum platform shows minor surface scratches and light handling marks consistent with normal lab use, but no cracks, chips, or structural damage are visible. Both Mitutoyo 197-201 micrometer heads are present and appear intact, with clean thimble graduations and smooth knurled surfaces showing light wear. The brass vacuum barb fitting on the stage edge is present and undamaged. The four rubber suction-cup feet on the underside appear in good condition. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Mitutoyo |
Model: |
197-201 |
MPN: |
197-201 |
Type: |
XY Dual Micrometer Positioning Stage |
SKU: |
42544 |
Country/Region of Manufacture: |
Japan |
Measurement Range: |
0–2 in (per axis) |
Resolution: |
0.0002 in |
Number of Axes: |
2 (X and Y) |
Micrometer Heads: |
2x Mitutoyo 197-201, 0–2in, .0002in resolution |
Stage Surface: |
Black anodized aluminum with concentric target pattern |
Vacuum Port: |
Yes — brass barb fitting on stage edge |
Mounting: |
Four rubber suction-cup feet (bottom) |
Form Factor: |
Benchtop / Freestanding |
Application: |
Microscope, optical, precision XY specimen positioning |
Seller Notes: |
Includes stage and two Mitutoyo 197-201 micrometer heads. No case or additional accessories. |
Condition Notes: |
This Mitutoyo 197-201 Dual Micrometer XY Stage has been visually inspected and is in good used condition. Platform shows minor surface scratches; both micrometer heads present and intact. Brass vacuum port and rubber feet in good condition. |
