The Mitutoyo DP-3DX is a Digimatic Mini-Processor designed to collect, process, and statistically analyze dimensional measurement data from Mitutoyo Digimatic-interface gauges and instruments. It features a built-in thermal printer, an alphanumeric LCD display, and a full function keypad for entering measurement programs, tolerances, and statistical routines. This listing includes the complete set as shown: the DP-3DX processor in its aluminum carry case along with a Mitutoyo IDC Series 543 Digimatic indicator, an MDC 293 digital micrometer, Digimatic SPC interface cables, a collection of accessories and tools, an AC power adapter, a thermal paper roll, and the full set of Mitutoyo operation manuals. Both the main unit and the MDC 293 micrometer will require new batteries before use.

Specifications & What's Included

• Processor: Mitutoyo DP-3DX Digimatic Mini-Processor
• Display: LCD alphanumeric display
• Output: Built-in thermal printer
• Interface: Digimatic (SPC) input ports for connecting Digimatic gauges
• Keypad: Green function/mode keys — MODE, PSET, RSTE, BRAK, FEED, CLR, END, DATA, LOAD, and numeric keys

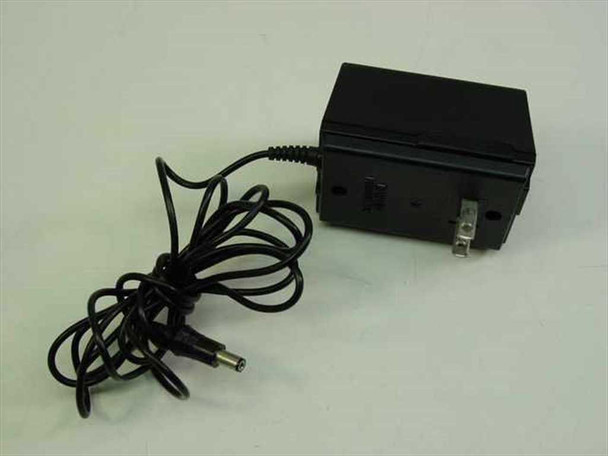

• Power: AC adapter included (US plug); also battery-powered (batteries not included)
• Included gauge: Mitutoyo IDC Series 543 Digimatic dial indicator
• Included gauge: Mitutoyo MDC 293 digital micrometer (needs new battery)
• Included cables: Multiple Digimatic SPC interface cables with various connectors
• Included accessories: Multicolor stylus/pen, adjustable arm accessory, ceramic post, hex key wrench, fork-end spanner wrench
• Included: Thermal paper roll

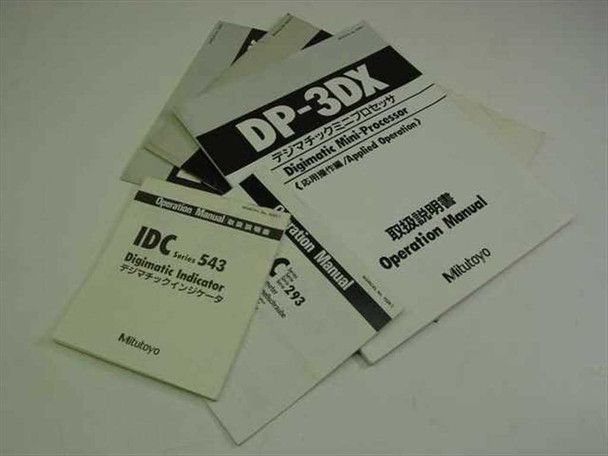

• Included manuals: DP-3DX Basic Operation (Japanese/English), DP-3DX Applied Operation (Japanese/English), IDC Series 543 Digimatic Indicator operation manual, MDC 293 operation manual
• Carry case: Aluminum hard-shell carry case with foam insert
• Country of manufacture: Japan
• Note: Both the DP-3DX main unit and MDC 293 micrometer require new batteries before use

Applications

The Mitutoyo DP-3DX Digimatic Mini-Processor is used in precision dimensional metrology and quality control environments to automate the collection and statistical analysis of measurement data from Digimatic-interface gauges. It connects directly to Mitutoyo Digimatic indicators, micrometers, calipers, and height gauges via the SPC interface, gathering readings and computing statistics such as mean, range, standard deviation, Cp, and Cpk for statistical process control (SPC). The DP-3DX dates from the late 1980s to early 1990s era of shop-floor SPC adoption, when Mitutoyo's Digimatic line became a standard in precision manufacturing and inspection departments. It was widely used in machine shops, aerospace, automotive, and electronics manufacturing quality labs. The integrated thermal printer allows immediate hard-copy output of measurement results and SPC reports without a separate computer. Systems of this type remain in use today wherever legacy Digimatic gauges are still in service and a stand-alone SPC processor is preferred over PC-based data collection.
