Mitutoyo 7005E TSH-E Transfer Stand Gauge Height Gage Comparator Stand

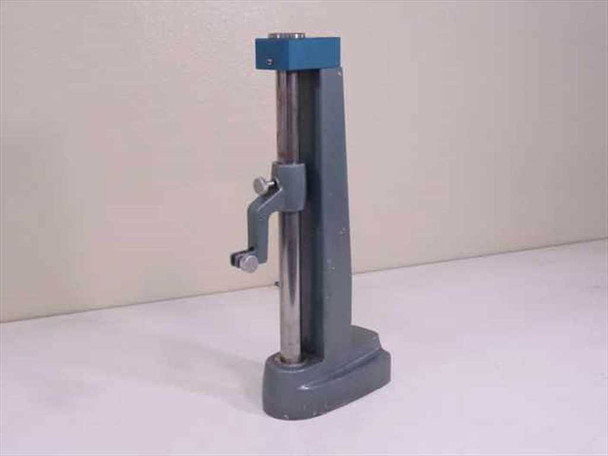

The Mitutoyo 7005E TSH-E is a precision transfer stand designed to hold and position height gauges, dial comparators, and similar measuring instruments during inspection and layout work on a surface plate. The stand features a chrome-finished vertical mast column, a gray cast base for stability, a mid-column locking clamp arm with thumb-screw adjustment, and a blue anodized aluminum top block with a center bore and set screw for securing the gauge spindle. The base incorporates a rotary up/down knob for fine vertical positioning of the carriage. Made in Japan by Mitutoyo.
Specifications & What's Included
- Manufacturer: Mitutoyo

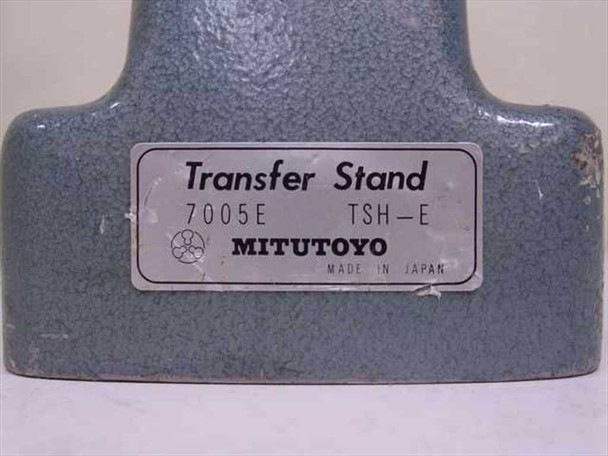

- Model: 7005E / TSH-E
- Country of Manufacture: Japan
- Total height: approximately 20 inches
- Base dimensions: 4.25 × 8 inches (cast gray body)
- Mast cross-section at base: 2.25 × 2.75 inches
- Mast cross-section at top: 1.75 × 0.375 inches
- Top block: blue anodized aluminum with center bore and set screw

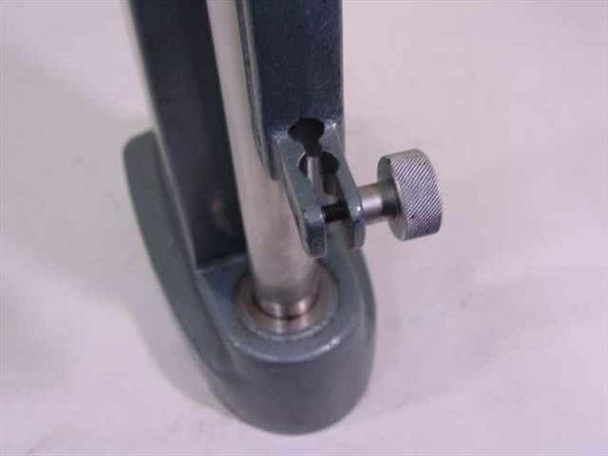

- Mid-column locking clamp arm with knurled thumb-screw lock
- Base rotary knob with UP/DOWN directional markings for fine carriage adjustment
- Stand only — no height gauge, dial indicator, or accessories included
Applications
Transfer stands like the Mitutoyo 7005E are standard equipment on the surface plate in precision inspection and quality control environments. They hold height gauges, dial comparators, and bore gauges in a fixed, repeatable position so measurements can be transferred between workpieces or referenced against a master. The TSH-E series is a classic Mitutoyo design long used in tool rooms, machine shops, and metrology labs alongside Mitutoyo height gauges such as the 192 and 193 series. The stable cast base resists tipping on the surface plate, while the fine-adjust knob and locking clamp allow the operator to set gauge height precisely and lock it in place for consistent readings. These stands remain in everyday use wherever repeatable dimensional transfer measurements are performed.
This Mitutoyo 7005E TSH-E Transfer Stand has been inspected and appears to be in good used condition. The gray cast base, chrome mast column, and blue anodized top block all show normal wear consistent with lab or shop use — no cracks, bends, or damage visible. The locking clamp arm and knurled thumb screws appear intact and functional. It was pulled from a working metrology environment where it was previously in use. Please review our photos for a close look at the actual unit and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Mitutoyo |
Model: |
7005E |
MPN: |
7005E |
Secondary Model: |
TSH-E |
SKU: |
30092 |
Type: |
Transfer Stand / Height Gauge Stand |
Country/Region of Manufacture: |
Japan |
Form Factor: |
Benchtop / Surface Plate |
Mast Height: |
20 inches |
Base Dimensions: |
4.25 x 8 inches |
Mast Diameter at Base: |
2.25 x 2.75 inches |
Mast Diameter at Top: |
1.75 x 0.375 inches |
Total Height: |
20 inches |
Application: |
Height gauge, comparator, dial indicator transfer |
Seller Notes: |
Stand only — no gauge or accessories included. |
Condition Notes: |
This Mitutoyo 7005E TSH-E Transfer Stand is in good used condition with normal wear. Base, mast, clamp, and blue top block are all intact. Pulled from a working metrology environment. Please view photos and contact us with questions. |
